Ražotājs: ZALMAN

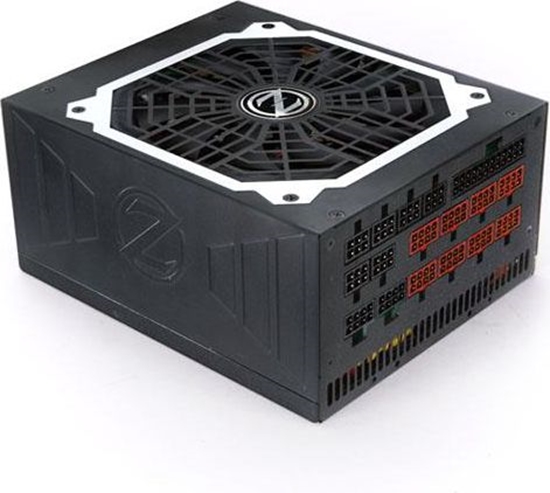

Zalman ZM750-ARX power supply unit 750 W 20+4 pin ATX ATX Black

€184,85 ar pvn

Artikuls: ST05050953

Preces kods: ZM750-ARX

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	11	€184,85 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	744 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	25 A
Max output current (+12V)	62 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Efficiency	94%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	6
Motherboard power cable length	60 cm
Number of SATA power connectors	12
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	4
PCI Express power cable length	55 cm
CPU power connector (4+4 pin)	Yes
CPU power cable length	70 cm
Floppy disk drive connector	Yes
Cabling type	Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Certification	UL, FCC, CB, CE, EAC, KC, WEEE
Product colour	Black
Cooling type	Active
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan location	Top
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Cables included	AC
Width	150 mm
Depth	180 mm
Height	86 mm
Weight	2.9 kg
Cable storage bag included	Yes
Number of straps	5
Manual	Yes
Package type	Box
Sustainability certificates	RoHS
Screws included	Yes
Number of screws	4
Cable ties included	Yes
Description
Description	Zalman ZM750-ARX. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, PCI Express power cable length: 55 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC

Specifikācija

Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	744 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	25 A
Max output current (+12V)	62 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Efficiency	94%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	6
Motherboard power cable length	60 cm
Number of SATA power connectors	12
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	4
PCI Express power cable length	55 cm
CPU power connector (4+4 pin)	Yes
CPU power cable length	70 cm
Floppy disk drive connector	Yes
Cabling type	Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Certification	UL, FCC, CB, CE, EAC, KC, WEEE
Product colour	Black
Cooling type	Active
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan location	Top
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Cables included	AC
Width	150 mm
Depth	180 mm
Height	86 mm
Weight	2.9 kg
Cable storage bag included	Yes
Number of straps	5
Manual	Yes
Package type	Box
Sustainability certificates	RoHS
Screws included	Yes
Number of screws	4
Cable ties included	Yes
Description
Description	Zalman ZM750-ARX. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, PCI Express power cable length: 55 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC
