    Ražotājs: GIGABYTE

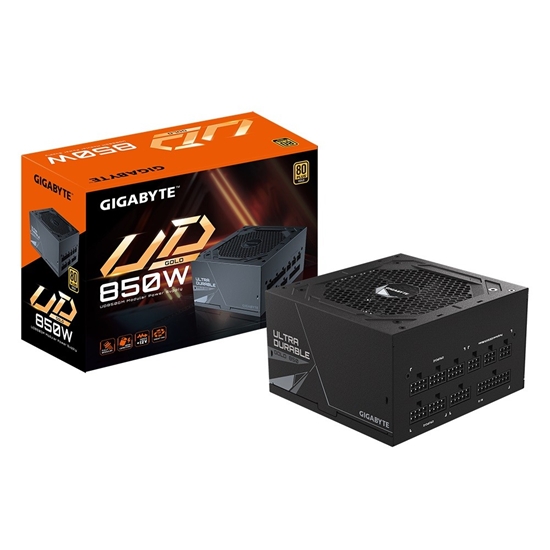

    Gigabyte UD850GM power supply unit 850 W 20+4 pin ATX ATX Black


    €98,30 ar pvn

    Artikuls: ST05344124
    Preces kods: GP-UD850GM
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    Ir veikalā
    LV
    LT
    LT
    PL
    LV

    Specifikācija
    Barošanas bloks 800W - 850W
    Krāsa Zelta
    Plates izmērs (Form Factor) ATX
    Krāsa Melna
    Power supply850 W
    Fan12 cm
    PFCActive
    MOLEX power connectors3
    Floppy power connectors1
    SATA power connectors8
    Number of power supply connector 4-pin 12V0
    8-pin 12V power connectors0
    Number of power supply connector 4+4-pin 12V2
    PCI-E 6-pin power connectors0
    Number of power supply connectors PCI-E 6 +2 pin4
    PCI-E 8-pin power connectors0
    MB power connector20 + 4 pin
    Modular power supplyYes
    Dimensions

    150 x 140 x 86 mm
    Certificates 80+80 PLUS Gold
    Width205
    Height255
    Depth120
    Weight2577
    Total power850 W
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Maximum input current (@110V)12 A
    Maximum input current (@220V)6 A
    Power factor0.9
    Power Factor Correction (PFC) typeActive
    Combined power (+3.3V)105 W
    Combined power (+12V)849.6 W
    Combined power (+5V)120 W
    Combined power (-12V)3.6 W
    Combined power (+5Vsb)15 W
    Max output current (+3.3V)20 A
    Max output current (+12V)70.8 A
    Max output current (+5V)20 A
    Max output current (-12V)0.3 A
    Max output current (+5Vsb)3 A
    Hold time16 ms
    Efficiency90%
    Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
    Motherboard power connector20+4 pin ATX
    Peripheral (Molex) power connectors (4-pin)3
    Motherboard power cable length61 cm
    Number of SATA power connectors8
    PCI Express power connectors (6+2 pin)4
    CPU power connector (4+4 pin)Yes
    CPU power cable length60 cm
    ATX power connector (20+4 pin)Yes
    Floppy drive power connector2
    Floppy disk drive connectorYes
    Cabling typeModular
    PurposePC
    Power supply unit (PSU) form factorATX
    80 PLUS certification80 PLUS Gold
    ATX version2.31
    Mean time between failures (MTBF)100000 h
    Product colourBlack
    Cooling typeActive
    Fan diameter12 cm
    Number of fans1 fan(s)
    Fan locationTop
    On/off switchYes
    Width150 mm
    Depth140 mm
    Height86 mm
    Package typeBox
    Harmonized System (HS) code84733020
    Description
    Gigabyte UD850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
    Description
    GP-UD850GM | ATX 2.31 | 850 Watts | 80 PLUS GOLD | PFC Active | MTBF 100000 hours
    DescriptionGIGABYTE GP-UD850GM 850W 80+ Gold
    VatTypeVAT
    Weight2.548000000
    Height214.000000000
    Width118.000000000
    Length257.000000000
    Description
    GIGABYTE GP-UD850GM 850W 80+ Gold
    Weight2
    Gross weight2.5
    Description

    Gigabyte UD850GM
    Total power: 850 W
    AC input voltage: 100 - 240 V
    AC input frequency: 50 - 60 Hz
    Motherboard power connector: 20+4 pin ATX
    Motherboard power cable length: 61 cm
    CPU power cable length: 60 cm
    Target, result: PC (computer)
    Power Supply Unit (PSU) Form Factor: ATX
    80 PLUS certification: 80 PLUS Gold
    Product color: Black
    Cooling type: Active
    Fan diameter: 12 cm
    Width: 150 mm
    Depth: 140 mm
    Height: 86 mm

    Gigabyte UD850GM
    Kopējā jauda: 850 W
    Maiņstrāvas ievades spriegums: 100 - 240 V
    Maiņstrāvas ievades frekvence: 50 - 60 Hz
    Mātesplates strāvas konektors: 20+4 pin ATX
    Mātesplates barošanas vada garums: 61 cm
    CPU strāvas kabeļa garums: 60 cm
    Mērķis, rezultāts: PC (dators)
    Strāvas padeves bloka (PSU) formas faktors: ATX
    80 PLUS sertifikācija: 80 PLUS Gold
    Produkta krāsa: Melns
    Dzesēšanas tips: Aktīvs
    Ventilatora diametrs: 12 cm
    Platums: 150 mm
    Dziļums: 140 mm
    Augstums: 86 mm

    Gigabyte UD850GM
    Общая мощность: 850 Вт
    Входное напряжение переменного тока: 100–240 В
    Входная частота переменного тока: 50–60 Гц
    Разъем питания материнской платы: 20+4-контактный ATX
    Длина кабеля питания материнской платы: 61 см.
    Длина кабеля питания процессора: 60 ​​см
    Цель, результат: ПК (компьютер)
    Форм-фактор блока питания: ATX
    Сертификация 80 PLUS: 80 PLUS Gold
    Цвет товара: Черный
    Тип охлаждения: Активное
    Диаметр вентилятора: 12 см.
    Ширина: 150 мм
    Глубина: 140 мм
    Высота: 86 мм
    Gross depth (mm)255.00
    Gross height (mm)208
    Gross weight2.55
    Gross width (mm)118
    Net weight2.25
    Packing quantity5
    Paper/Pasteboard240.00
    Plastic (No PET)60.00
    Tare weight (kg)0.30
    Volume (m3)0.00625872
    Embeeded batteryNo
    WEEE taxNo
    WEE classificationCL109:6:2017-04-01
    Nominal power850
    Producer product nameGP-UD850GM
    Other featuresFan size 120mm; Protection OVP/OPP/SCP/UVP/OCP/OTP
    Producer product familyPSU
    Form factorATX 12V v2.31
    Bearing technologyHydraulic Bearing (HYB)
    Gross depth master carton620
    Gross width master carton224
    Gross height master carton278
    Net weight master carton12.75
    Tare weight master carton0.656
    Palette Qty145
    Warranty60
    ProducerGigabyte
    Description
    - Ultra Durable Main Japanese capacitors Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection - 80 PLUS Gold certified - Fully modular design - Powerful single +12V rail - Compact design - 5 years warranty (Adjusted according to different regions

    Specifikācija
    Barošanas bloks 800W - 850W
    Krāsa Zelta
    Plates izmērs (Form Factor) ATX
    Krāsa Melna
    Power supply850 W
    Fan12 cm
    PFCActive
    MOLEX power connectors3
    Floppy power connectors1
    SATA power connectors8
    Number of power supply connector 4-pin 12V0
    8-pin 12V power connectors0
    Number of power supply connector 4+4-pin 12V2
    PCI-E 6-pin power connectors0
    Number of power supply connectors PCI-E 6 +2 pin4
    PCI-E 8-pin power connectors0
    MB power connector20 + 4 pin
    Modular power supplyYes
    Dimensions

    150 x 140 x 86 mm
    Certificates 80+80 PLUS Gold
    Width205
    Height255
    Depth120
    Weight2577
    Total power850 W
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Maximum input current (@110V)12 A
    Maximum input current (@220V)6 A
    Power factor0.9
    Power Factor Correction (PFC) typeActive
    Combined power (+3.3V)105 W
    Combined power (+12V)849.6 W
    Combined power (+5V)120 W
    Combined power (-12V)3.6 W
    Combined power (+5Vsb)15 W
    Max output current (+3.3V)20 A
    Max output current (+12V)70.8 A
    Max output current (+5V)20 A
    Max output current (-12V)0.3 A
    Max output current (+5Vsb)3 A
    Hold time16 ms
    Efficiency90%
    Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
    Motherboard power connector20+4 pin ATX
    Peripheral (Molex) power connectors (4-pin)3
    Motherboard power cable length61 cm
    Number of SATA power connectors8
    PCI Express power connectors (6+2 pin)4
    CPU power connector (4+4 pin)Yes
    CPU power cable length60 cm
    ATX power connector (20+4 pin)Yes
    Floppy drive power connector2
    Floppy disk drive connectorYes
    Cabling typeModular
    PurposePC
    Power supply unit (PSU) form factorATX
    80 PLUS certification80 PLUS Gold
    ATX version2.31
    Mean time between failures (MTBF)100000 h
    Product colourBlack
    Cooling typeActive
    Fan diameter12 cm
    Number of fans1 fan(s)
    Fan locationTop
    On/off switchYes
    Width150 mm
    Depth140 mm
    Height86 mm
    Package typeBox
    Harmonized System (HS) code84733020
    Description
    Gigabyte UD850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
    Description
    GP-UD850GM | ATX 2.31 | 850 Watts | 80 PLUS GOLD | PFC Active | MTBF 100000 hours
    DescriptionGIGABYTE GP-UD850GM 850W 80+ Gold
    VatTypeVAT
    Weight2.548000000
    Height214.000000000
    Width118.000000000
    Length257.000000000
    Description
    GIGABYTE GP-UD850GM 850W 80+ Gold
    Weight2
    Gross weight2.5
    Description

    Gigabyte UD850GM
    Total power: 850 W
    AC input voltage: 100 - 240 V
    AC input frequency: 50 - 60 Hz
    Motherboard power connector: 20+4 pin ATX
    Motherboard power cable length: 61 cm
    CPU power cable length: 60 cm
    Target, result: PC (computer)
    Power Supply Unit (PSU) Form Factor: ATX
    80 PLUS certification: 80 PLUS Gold
    Product color: Black
    Cooling type: Active
    Fan diameter: 12 cm
    Width: 150 mm
    Depth: 140 mm
    Height: 86 mm

    Gigabyte UD850GM
    Kopējā jauda: 850 W
    Maiņstrāvas ievades spriegums: 100 - 240 V
    Maiņstrāvas ievades frekvence: 50 - 60 Hz
    Mātesplates strāvas konektors: 20+4 pin ATX
    Mātesplates barošanas vada garums: 61 cm
    CPU strāvas kabeļa garums: 60 cm
    Mērķis, rezultāts: PC (dators)
    Strāvas padeves bloka (PSU) formas faktors: ATX
    80 PLUS sertifikācija: 80 PLUS Gold
    Produkta krāsa: Melns
    Dzesēšanas tips: Aktīvs
    Ventilatora diametrs: 12 cm
    Platums: 150 mm
    Dziļums: 140 mm
    Augstums: 86 mm

    Gigabyte UD850GM
    Общая мощность: 850 Вт
    Входное напряжение переменного тока: 100–240 В
    Входная частота переменного тока: 50–60 Гц
    Разъем питания материнской платы: 20+4-контактный ATX
    Длина кабеля питания материнской платы: 61 см.
    Длина кабеля питания процессора: 60 ​​см
    Цель, результат: ПК (компьютер)
    Форм-фактор блока питания: ATX
    Сертификация 80 PLUS: 80 PLUS Gold
    Цвет товара: Черный
    Тип охлаждения: Активное
    Диаметр вентилятора: 12 см.
    Ширина: 150 мм
    Глубина: 140 мм
    Высота: 86 мм
    Gross depth (mm)255.00
    Gross height (mm)208
    Gross weight2.55
    Gross width (mm)118
    Net weight2.25
    Packing quantity5
    Paper/Pasteboard240.00
    Plastic (No PET)60.00
    Tare weight (kg)0.30
    Volume (m3)0.00625872
    Embeeded batteryNo
    WEEE taxNo
    WEE classificationCL109:6:2017-04-01
    Nominal power850
    Producer product nameGP-UD850GM
    Other featuresFan size 120mm; Protection OVP/OPP/SCP/UVP/OCP/OTP
    Producer product familyPSU
    Form factorATX 12V v2.31
    Bearing technologyHydraulic Bearing (HYB)
    Gross depth master carton620
    Gross width master carton224
    Gross height master carton278
    Net weight master carton12.75
    Tare weight master carton0.656
    Palette Qty145
    Warranty60
    ProducerGigabyte
    Description
    - Ultra Durable Main Japanese capacitors Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection - 80 PLUS Gold certified - Fully modular design - Powerful single +12V rail - Compact design - 5 years warranty (Adjusted according to different regions
