    Iepriekšējais produktsBarošanas bloks MSI MAG A75...
    Nākamais produktsBarošanas bloks MSI MEG Ai1...
    Ražotājs: MSI

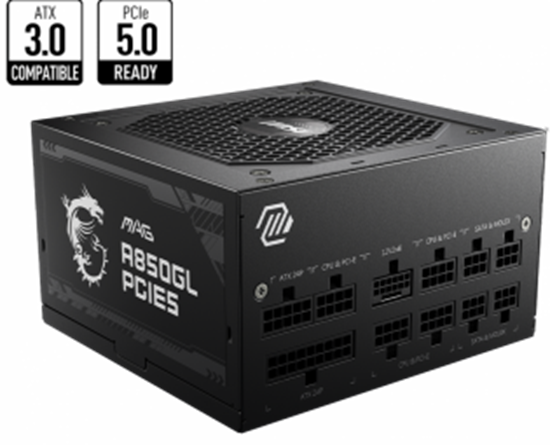

    Barošanas bloks MSI MAG A850GL PCIE5 850W


    €130,44 ar pvn

    Artikuls: ST07420989
    Preces kods: MAG A850GL PCIE5
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL
    LV
    LV
    PL

    Specifikācija
    Barošanas bloks 800W - 850W
    Krāsa Melna
    Plates izmērs (Form Factor) ATX
    Krāsa Zelta
    Power supply850 W
    Fan12 cm
    PFCActive
    MOLEX power connectors4
    Floppy power connectors1
    SATA power connectors8
    Number of power supply connector 4-pin 12V0
    8-pin 12V power connectors0
    Number of power supply connector 4+4-pin 12V2
    PCI-E 6-pin power connectors0
    Number of power supply connectors PCI-E 6 +2 pin4
    PCI-E 8-pin power connectors0
    Number of power connectors PCI-E 16-pin Gen 51
    Number of power connectors 12VHPWR0
    MB power connector20 + 4 pin
    Modular power supplyYes
    Dimensions

    140 x 150 x 86 mm
    Certificates 80+80 PLUS Gold
    Width300
    Height220
    Depth125
    Weight2838
    Description

    MAG A850GL PCIE5

    • Zgodność z ATX 3.0, natywne złącze PCIe 5.0
    • Obsługuje karty graficzne NVIDIA GeForce RTX z serii 40
    • Pełna modułowa konstrukcja, płaskie kable
    • Certyfikat 80 Plus Gold potwierdzający wysoką wydajność
    • Aktywna konstrukcja PFC, ochrona na poziomie przemysłowym z OVP,OCP,OPP,OTP, SCP,UVP
    • Wentylator z płynnym łożyskiem dynamicznym 120 mm
    • LLC Full Bridge Topology z konstrukcją modułu DC-DC
    Total power850 W
    AC input voltage100 - 240 V
    AC input frequency47 - 63 Hz
    Maximum input current (@110V)8 A
    Maximum input current (@220V)4 A
    Power Factor Correction (PFC) typeActive
    Combined power (+3.3V)110 W
    Combined power (+12V)846 W
    Combined power (+5V)110 W
    Combined power (-12V)3.6 W
    Combined power (+5Vsb)12.5 W
    Max output current (+3.3V)20 A
    Max output current (+12V)70.5 A
    Max output current (+5V)20 A
    Max output current (-12V)0.3 A
    Max output current (+5Vsb)2.5 A
    Efficiency90%
    Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit
    Motherboard power connector20+4 pin ATX
    Peripheral (Molex) power connectors (4-pin)4
    Motherboard power cable length60 cm
    Number of SATA power connectors8
    EPS power connector (8-pin)No
    EPS power connector (4+4 pin)Yes
    PCI Express power connectors (6+2 pin)4
    CPU power connector (4+4 pin)Yes
    ATX Power connector (24-pin)No
    ATX power connector (20+4 pin)No
    Cabling typeModular
    PurposePC
    Power supply unit (PSU) form factorATX
    80 PLUS certification80 PLUS Gold
    Product colourBlack
    Cooling typeActive
    Fan diameter12 cm
    Number of fans1 fan(s)
    IlluminationNo
    On/off switchYes
    Width150 mm
    Depth140 mm
    Height86 mm
    Package typeBox
    Harmonized System (HS) code84733020
    Description
    MSI MAG A850GL PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
    Description
    Jauda: 850W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 4, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
    DescriptionMSI MAG A850GL PCIE5 850W POWER SUPPLY
    VatTypeVAT
    Weight2.840000000
    Height128.000000000
    Width226.000000000
    Length307.000000000
    Description
    MSI MAG A850GL PCIE5 850W POWER SUPPLY
    Weight2
    Gross weight2.5
    Description

    Power: 850W

     Energy Efficiency: 80 Plus Gold

     PFC: active

     Fan: 120mm

     SATA connections: 8

    Molex PATA connections: 4

     PCI-E: 4 x 6 + 2 PIN.

    Jauda: 850W

     Energoefektivitāte: 80 Plus Gold

     PFC: Aktīvs

     Ventilators: 120mm

     SATA pieslēgumi: 8

    MOLEX PATA pieslēgumi: 4

     PCI-E: 4 x 6 + 2 PIN.

    Мощность: 850 Вт

     Энергоэффективность: 80 Plus Gold

     PFC: активный

     Вентилятор: 120 мм

     Подключения SATA: 8

    MOLEX PATA подключения: 4

     PCI-E: 4 x 6 + 2 контакта.

    Specifikācija
    Barošanas bloks 800W - 850W
    Krāsa Melna
    Plates izmērs (Form Factor) ATX
    Krāsa Zelta
    Power supply850 W
    Fan12 cm
    PFCActive
    MOLEX power connectors4
    Floppy power connectors1
    SATA power connectors8
    Number of power supply connector 4-pin 12V0
    8-pin 12V power connectors0
    Number of power supply connector 4+4-pin 12V2
    PCI-E 6-pin power connectors0
    Number of power supply connectors PCI-E 6 +2 pin4
    PCI-E 8-pin power connectors0
    Number of power connectors PCI-E 16-pin Gen 51
    Number of power connectors 12VHPWR0
    MB power connector20 + 4 pin
    Modular power supplyYes
    Dimensions

    140 x 150 x 86 mm
    Certificates 80+80 PLUS Gold
    Width300
    Height220
    Depth125
    Weight2838
    Description

    MAG A850GL PCIE5

    • Zgodność z ATX 3.0, natywne złącze PCIe 5.0
    • Obsługuje karty graficzne NVIDIA GeForce RTX z serii 40
    • Pełna modułowa konstrukcja, płaskie kable
    • Certyfikat 80 Plus Gold potwierdzający wysoką wydajność
    • Aktywna konstrukcja PFC, ochrona na poziomie przemysłowym z OVP,OCP,OPP,OTP, SCP,UVP
    • Wentylator z płynnym łożyskiem dynamicznym 120 mm
    • LLC Full Bridge Topology z konstrukcją modułu DC-DC
    Total power850 W
    AC input voltage100 - 240 V
    AC input frequency47 - 63 Hz
    Maximum input current (@110V)8 A
    Maximum input current (@220V)4 A
    Power Factor Correction (PFC) typeActive
    Combined power (+3.3V)110 W
    Combined power (+12V)846 W
    Combined power (+5V)110 W
    Combined power (-12V)3.6 W
    Combined power (+5Vsb)12.5 W
    Max output current (+3.3V)20 A
    Max output current (+12V)70.5 A
    Max output current (+5V)20 A
    Max output current (-12V)0.3 A
    Max output current (+5Vsb)2.5 A
    Efficiency90%
    Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit
    Motherboard power connector20+4 pin ATX
    Peripheral (Molex) power connectors (4-pin)4
    Motherboard power cable length60 cm
    Number of SATA power connectors8
    EPS power connector (8-pin)No
    EPS power connector (4+4 pin)Yes
    PCI Express power connectors (6+2 pin)4
    CPU power connector (4+4 pin)Yes
    ATX Power connector (24-pin)No
    ATX power connector (20+4 pin)No
    Cabling typeModular
    PurposePC
    Power supply unit (PSU) form factorATX
    80 PLUS certification80 PLUS Gold
    Product colourBlack
    Cooling typeActive
    Fan diameter12 cm
    Number of fans1 fan(s)
    IlluminationNo
    On/off switchYes
    Width150 mm
    Depth140 mm
    Height86 mm
    Package typeBox
    Harmonized System (HS) code84733020
    Description
    MSI MAG A850GL PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
    Description
    Jauda: 850W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 4, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
    DescriptionMSI MAG A850GL PCIE5 850W POWER SUPPLY
    VatTypeVAT
    Weight2.840000000
    Height128.000000000
    Width226.000000000
    Length307.000000000
    Description
    MSI MAG A850GL PCIE5 850W POWER SUPPLY
    Weight2
    Gross weight2.5
    Description

    Power: 850W

     Energy Efficiency: 80 Plus Gold

     PFC: active

     Fan: 120mm

     SATA connections: 8

    Molex PATA connections: 4

     PCI-E: 4 x 6 + 2 PIN.

    Jauda: 850W

     Energoefektivitāte: 80 Plus Gold

     PFC: Aktīvs

     Ventilators: 120mm

     SATA pieslēgumi: 8

    MOLEX PATA pieslēgumi: 4

     PCI-E: 4 x 6 + 2 PIN.

    Мощность: 850 Вт

     Энергоэффективность: 80 Plus Gold

     PFC: активный

     Вентилятор: 120 мм

     Подключения SATA: 8

    MOLEX PATA подключения: 4

     PCI-E: 4 x 6 + 2 контакта.
