    Iepriekšējais produktsZyxel XGS2220-54 54-Port La...
    Nākamais produktsZyxel XGS2220-54HP Managed ...
    Ražotājs: ZYXEL

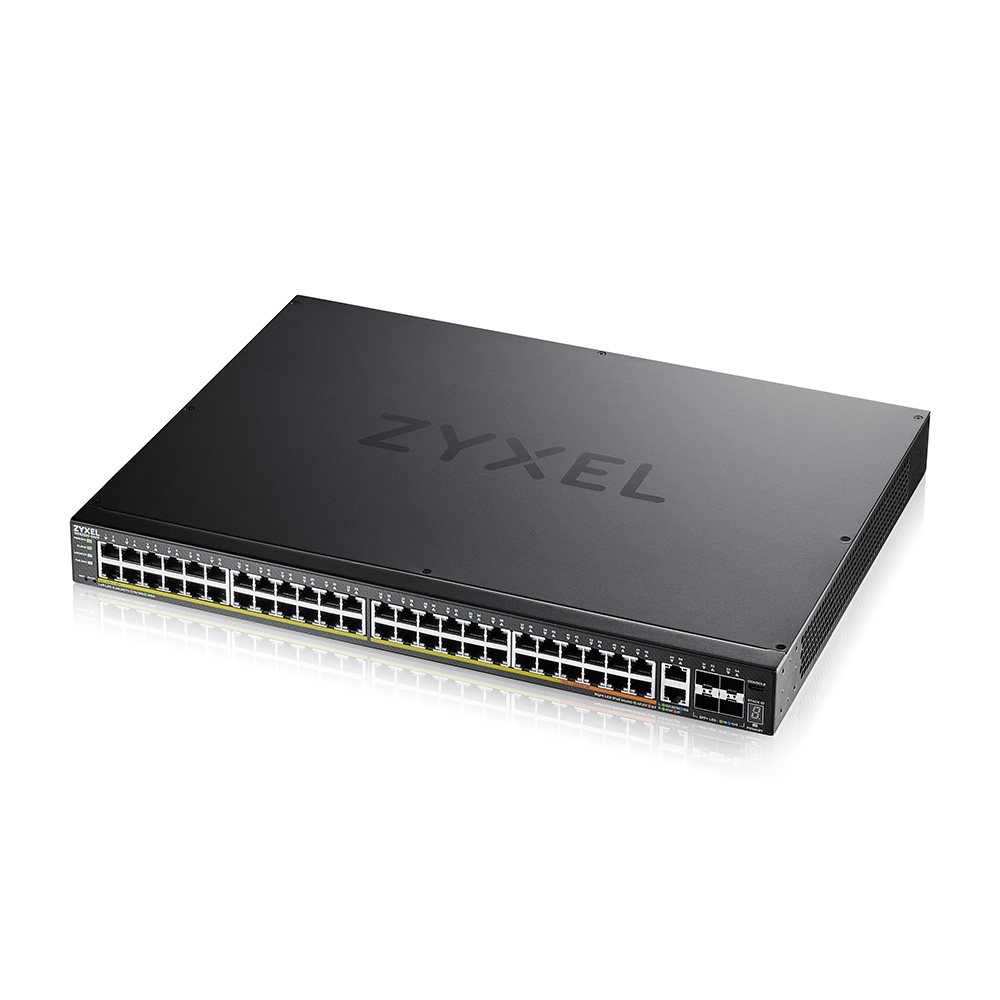

    Zyxel XGS2220-54FP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)


    €1930,35 ar pvn

    Artikuls: ST07587566
    Preces kods: XGS2220-54FP-EU0101F
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    DE

    Specifikācija
    WRL stadarti 802.11b
    Portu skaits RJ-45 48
    Īpašības RJ-45
    Switch classManaged
    ApplicationMedium and large companies
    Switch layerL3
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports48
    10/100/1000/2500 Mbps portsNone
    Number of 10Gb ports2
    Number of ports 25GbNone
    Number of PoE ports (PoE & PoE+)50
    Number of PoE+ portsNone
    Number of COMBO portsNone
    Number of SFP portsNone
    Number of SFP+ ports4
    Number of SFP56 portsNone
    Number of QSFP+ portsNone
    Console portYes
    Throughput216 (Gigabity na sek.)
    Forwarding rate161 (Mpps)
    Packet buffer2 (MegaBajt)
    MAC address table size32000
    Support for Jumbo framesYes
    Jumbo frame size9 (Kilobajt)
    StackabilityNo
    Chassis typeRack
    Fan Yes
    Power supply External
    Power consumption36.4 (Watt)
    Mean time between failures (MTBF)227352 (Hour)
    Certificates
    • FCC Part 15 (Class A)
    • CE EMC (Class A)
    • BSMI EMC
    • LVD
    • RoHS
    Power supply

    100 - 240 V AC, 50/60 Hz
    Dimensions

    441 x 270 x 44 mm
    Weight3.4 (kilogram)
    DesignationCE+WEEE
    Width580
    Height500
    Depth100
    Weight6400
    Description

    Seria XGS2220 to rodzina przełączników dostępowych warstwy 3.  Modele PoE umożliwiają elastyczne opcje z większymi budżetami PoE i mieszanką portów 60 W i 30 W do zasilania urządzeń, takich jak najnowsze bezprzewodowe punkty dostępowe Wi-Fi 6/6E;
    Switch typeManaged
    Switch layerL3
    Quality of Service (QoS) supportYes
    ARP inspectionYes
    Basic switching RJ-45 Ethernet ports quantity48
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Installed SFP+ modules quantity4
    10G Ethernet (copper) ports quantity2
    Networking standardsIEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x
    10G supportYes
    Routing entries64
    MAC address table32000 entries
    Switching capacity216 Gbit/s
    Forwarding rate161 Mpps
    Jumbo frames supportYes
    Packet buffer memory2 MB
    DHCP featuresDHCP relay, DHCP server
    IGMP snoopingYes
    IGMP proxyYes
    Authentication typeIEEE 802.1x, RADIUS, TACACS+
    Multicast Listener Discovery (MLD) snoopingMLD v1/v2
    GARP VLAN Registration Protocol (GVRP)Yes
    Rack mountingYes
    Internal memory1024 MB
    Flash memory64 MB
    Mean time between failures (MTBF)298.735 h
    Power sourceAC
    Power supply includedYes
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)1161.6 W
    Power over Ethernet (PoE)Yes
    Power over Ethernet (PoE) ports quantity50
    Total Power over Ethernet (PoE) budget960 W
    Operating temperature (T-T)-20 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 95%
    Storage relative humidity (H-H)10 - 90%
    Heat dissipation195.43 BTU/h
    Width441 mm
    Depth330 mm
    Height44 mm
    Weight5 kg
    Description
    Zyxel XGS2220-54FP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP+ modules quantity: 4. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an,.... Power over Ethernet (PoE). Rack mounting
    StatusJautāt
    Description
    Nebula Cloud-managed Layer 3 Enterprise Switch The XGS2220 Series is a family of Layer 3 access Switches that consists of six models, including PoE, Non PoE and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access; PoE models allow flexible options with larger PoE budgets and a mix of 60 W and 30 W ports to power devices like the latest WiFi 6/6E Wireless Access Points; The Fiber model aims to achieve business connectivity for high fiber port density requirement. Flexible 10G For Converged Networking Applications On top of four 10G SFP+ uplinks, the XGS2220 Series comes with two additional 10G Multi-Gig RJ 45 ports to offer the flexibility to connect to servers, network storage, or other high speed network devices. Business can operate smoothly with the better extensibility and robust network infrastructure. Multiple Power Budget options PoE models come with 10 ports of PoE++ (IEEE 802.3bt) offering up to 60 W per port and 16-40 ports of PoE+ (IEEE 802.3at) delivering up to 30 W per port to meet a variety of applications, including the latest generation of Wireless Access Points. Within the range, the 3 PoE models of 30HP, 54HP and 54FP can offer larger Power budgets of 400 W, 600 W and 960 W respectively, allowing flexibility in powering a full range of PoE devices efficiently for applications like VoIP, surveillance, high density networked AV applications and Zyxel’s compressive WiFi 6/6E AP portfolio. Nebula, Manage It Your Way! The support of NebulaFlex Pro allows you to easily switch management modes between standalone management and intuitive Nebula cloud managed mode with 1 YEAR Pro Pack bundled. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller.

    Switch type Managed
    Switch layer L3
    Quality of Service (QoS) support Y
    ARP inspection Y
    Basic switching RJ-45 Ethernet ports quantity 48
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Installed SFP+ modules quantity 4
    10G Ethernet (copper) ports quantity 2
    Networking standards IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x
    10G support Y
    Routing entries 64
    MAC address table 32000 entries
    Switching capacity 216 Gbit/s
    Forwarding rate 161 Mpps
    Jumbo frames support Y
    Packet buffer memory 2 MB
    DHCP features DHCP relay, DHCP server
    IGMP snooping Y
    IGMP proxy Y
    Authentication type IEEE 802.1x, RADIUS, TACACS+
    Multicast Listener Discovery (MLD) snooping MLD v1/v2
    GARP VLAN Registration Protocol (GVRP) Y
    Rack mounting Y
    Internal memory 1024 MB
    Flash memory 64 MB
    Mean time between failures (MTBF) 298.735 h
    Power source AC
    Power supply included Y
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (max) 1161.6 W
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 50
    Total Power over Ethernet (PoE) budget 960 W
    Operating temperature (T-T) -20 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 95%
    Storage relative humidity (H-H) 10 - 90%
    Heat dissipation 195.43 BTU/h
    Width 441 mm
    Depth 330 mm
    Height 44 mm
    Weight 5 kg
    Description
    50+4P Zyxel XGS2220-54FP POE M RM

    Specifikācija
    WRL stadarti 802.11b
    Portu skaits RJ-45 48
    Īpašības RJ-45
    Switch classManaged
    ApplicationMedium and large companies
    Switch layerL3
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports48
    10/100/1000/2500 Mbps portsNone
    Number of 10Gb ports2
    Number of ports 25GbNone
    Number of PoE ports (PoE & PoE+)50
    Number of PoE+ portsNone
    Number of COMBO portsNone
    Number of SFP portsNone
    Number of SFP+ ports4
    Number of SFP56 portsNone
    Number of QSFP+ portsNone
    Console portYes
    Throughput216 (Gigabity na sek.)
    Forwarding rate161 (Mpps)
    Packet buffer2 (MegaBajt)
    MAC address table size32000
    Support for Jumbo framesYes
    Jumbo frame size9 (Kilobajt)
    StackabilityNo
    Chassis typeRack
    Fan Yes
    Power supply External
    Power consumption36.4 (Watt)
    Mean time between failures (MTBF)227352 (Hour)
    Certificates
    • FCC Part 15 (Class A)
    • CE EMC (Class A)
    • BSMI EMC
    • LVD
    • RoHS
    Power supply

    100 - 240 V AC, 50/60 Hz
    Dimensions

    441 x 270 x 44 mm
    Weight3.4 (kilogram)
    DesignationCE+WEEE
    Width580
    Height500
    Depth100
    Weight6400
    Description

    Seria XGS2220 to rodzina przełączników dostępowych warstwy 3.  Modele PoE umożliwiają elastyczne opcje z większymi budżetami PoE i mieszanką portów 60 W i 30 W do zasilania urządzeń, takich jak najnowsze bezprzewodowe punkty dostępowe Wi-Fi 6/6E;
    Switch typeManaged
    Switch layerL3
    Quality of Service (QoS) supportYes
    ARP inspectionYes
    Basic switching RJ-45 Ethernet ports quantity48
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Installed SFP+ modules quantity4
    10G Ethernet (copper) ports quantity2
    Networking standardsIEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x
    10G supportYes
    Routing entries64
    MAC address table32000 entries
    Switching capacity216 Gbit/s
    Forwarding rate161 Mpps
    Jumbo frames supportYes
    Packet buffer memory2 MB
    DHCP featuresDHCP relay, DHCP server
    IGMP snoopingYes
    IGMP proxyYes
    Authentication typeIEEE 802.1x, RADIUS, TACACS+
    Multicast Listener Discovery (MLD) snoopingMLD v1/v2
    GARP VLAN Registration Protocol (GVRP)Yes
    Rack mountingYes
    Internal memory1024 MB
    Flash memory64 MB
    Mean time between failures (MTBF)298.735 h
    Power sourceAC
    Power supply includedYes
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)1161.6 W
    Power over Ethernet (PoE)Yes
    Power over Ethernet (PoE) ports quantity50
    Total Power over Ethernet (PoE) budget960 W
    Operating temperature (T-T)-20 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 95%
    Storage relative humidity (H-H)10 - 90%
    Heat dissipation195.43 BTU/h
    Width441 mm
    Depth330 mm
    Height44 mm
    Weight5 kg
    Description
    Zyxel XGS2220-54FP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP+ modules quantity: 4. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an,.... Power over Ethernet (PoE). Rack mounting
    StatusJautāt
    Description
    Nebula Cloud-managed Layer 3 Enterprise Switch The XGS2220 Series is a family of Layer 3 access Switches that consists of six models, including PoE, Non PoE and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access; PoE models allow flexible options with larger PoE budgets and a mix of 60 W and 30 W ports to power devices like the latest WiFi 6/6E Wireless Access Points; The Fiber model aims to achieve business connectivity for high fiber port density requirement. Flexible 10G For Converged Networking Applications On top of four 10G SFP+ uplinks, the XGS2220 Series comes with two additional 10G Multi-Gig RJ 45 ports to offer the flexibility to connect to servers, network storage, or other high speed network devices. Business can operate smoothly with the better extensibility and robust network infrastructure. Multiple Power Budget options PoE models come with 10 ports of PoE++ (IEEE 802.3bt) offering up to 60 W per port and 16-40 ports of PoE+ (IEEE 802.3at) delivering up to 30 W per port to meet a variety of applications, including the latest generation of Wireless Access Points. Within the range, the 3 PoE models of 30HP, 54HP and 54FP can offer larger Power budgets of 400 W, 600 W and 960 W respectively, allowing flexibility in powering a full range of PoE devices efficiently for applications like VoIP, surveillance, high density networked AV applications and Zyxel’s compressive WiFi 6/6E AP portfolio. Nebula, Manage It Your Way! The support of NebulaFlex Pro allows you to easily switch management modes between standalone management and intuitive Nebula cloud managed mode with 1 YEAR Pro Pack bundled. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller.

    Switch type Managed
    Switch layer L3
    Quality of Service (QoS) support Y
    ARP inspection Y
    Basic switching RJ-45 Ethernet ports quantity 48
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Installed SFP+ modules quantity 4
    10G Ethernet (copper) ports quantity 2
    Networking standards IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x
    10G support Y
    Routing entries 64
    MAC address table 32000 entries
    Switching capacity 216 Gbit/s
    Forwarding rate 161 Mpps
    Jumbo frames support Y
    Packet buffer memory 2 MB
    DHCP features DHCP relay, DHCP server
    IGMP snooping Y
    IGMP proxy Y
    Authentication type IEEE 802.1x, RADIUS, TACACS+
    Multicast Listener Discovery (MLD) snooping MLD v1/v2
    GARP VLAN Registration Protocol (GVRP) Y
    Rack mounting Y
    Internal memory 1024 MB
    Flash memory 64 MB
    Mean time between failures (MTBF) 298.735 h
    Power source AC
    Power supply included Y
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (max) 1161.6 W
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 50
    Total Power over Ethernet (PoE) budget 960 W
    Operating temperature (T-T) -20 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 95%
    Storage relative humidity (H-H) 10 - 90%
    Heat dissipation 195.43 BTU/h
    Width 441 mm
    Depth 330 mm
    Height 44 mm
    Weight 5 kg
    Description
    50+4P Zyxel XGS2220-54FP POE M RM
