    Производитель: EATON

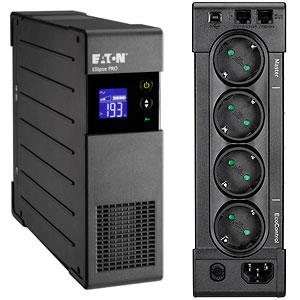

    650VA/400W UPS, line-interactive, DIN 3+1


    €190,39 с налогом

    Артикул: ST00582668
    Код производителя: ELP650DIN
    Сайт производителя
    гарантия: 12 месяцы
    *
    Склад Доставка Наличие Цена
    LV
    LT
    DE
    LT
    LV

    Характеристики
    UPS стабилизаторы напряжения 650
    гнездo (USB) да
    Тип Line Interactive
    Выходная мощность 400
    UPS стабилизаторы напряжения 400
    гнездo (RJ-45) да
    аккумуляторы Аккумуляторы
    UPS topologyLine-Interactive
    Output power capacity0.65 kVA
    Output power400 W
    Input operation voltage (min)150 V
    Input operation voltage (max)285 V
    Input frequency50/60 Hz
    Output operation voltage (min)220 V
    Output operation voltage (max)240 V
    Output frequency50 Hz
    Emergency Power Off (EPO)Yes
    Surge protectionYes
    Surge protection featuresFax, Modem, Network, Telephone
    AC outlet typesType F
    Power plugC14 coupler
    AC outlets quantity4 AC outlet(s)
    USB 2.0 ports quantity1
    Modem (RJ-11) ports1
    Ethernet LAN (RJ-45) ports1
    Battery technologySealed Lead Acid (VRLA)
    Typical backup time at half load9 min
    Hot-swap batteryNo
    Automatic battery testYes
    Cold startYes
    Form factorTower
    Product colourBlack
    Rack capacity2U
    Display typeLCD
    LED indicatorsYes
    SafetyIEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
    Width82 mm
    Depth285 mm
    Height260 mm
    Weight6.6 kg
    Harmonized System (HS) code85078000
    Nominal input voltage230 V
    Description
    Eaton Ellipse PRO 650 DIN. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 400 W. AC outlet types: Type F, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Width: 82 mm, Depth: 285 mm, Height: 260 mm
    Description
    400 Watts | 650 VA | Topology LineInteractive | Input ports Single, IEC320 C14 (10AMP) | 1xUSB | Desktop/pedestal | Rack | Colour Black
    Status7 dienas
    Description
    The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard. - LCD display for real-time status and measurements. - Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost). - EcoControl function helps you save up to 20% energy compared to previous generation UPSs. - Includes a high performance surge-protection device which complies with IEC 61643-1 standard. - Up to 8 outlets to connect your PC & peripherals. - Convenient extra-flat design for easy installation in any office environment. - USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings. - Protects data connections such as Ethernet, internet and telephone lines.

    UPS topology Line-Interactive
    Output power capacity 0.65 kVA
    Output power 400 W
    Input operation voltage (min) 150 V
    Input operation voltage (max) 285 V
    Input frequency 50/60 Hz
    Output operation voltage (min) 220 V
    Output operation voltage (max) 240 V
    Output frequency 50 Hz
    Emergency Power Off (EPO) Y
    Surge protection Y
    Surge protection features Fax, Modem, Network, Telephone
    AC outlet types Type F
    Power plug C14 coupler
    AC outlets quantity 4 AC outlet(s)
    USB 2.0 ports quantity 1
    Modem (RJ-11) ports 1
    Ethernet LAN (RJ-45) ports 1
    Battery technology Sealed Lead Acid (VRLA)
    Typical backup time at half load 9 min
    Hot-swap battery N
    Automatic battery test Y
    Cold start Y
    Form factor Tower
    Product colour Black
    Rack capacity 2U
    Display type LCD
    LED indicators Y
    Safety IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
    Width 82 mm
    Depth 285 mm
    Height 260 mm
    Weight 6.6 kg
    Harmonized System (HS) code 85078000
    Nominal input voltage 230 V
    DescriptionEATON UPS Ellipse PRO 650 DIN
    VatTypeVAT
    Weight7.520000000
    Height145.000000000
    Width320.000000000
    Length390.000000000
    Description
    EATON UPS Ellipse PRO 650 USB IEC rack/tower - AC 230 V - 400 Watt - 650 VA - USB - IEC-320-C13 4 Output - 2U - 19inch
    ShortDesc650VA/400W UPS, line-interactive, DIN 3+1
    UPS Power (VA)650 VA
    UPS Power (W)400 W
    Runtime (min)9/5
    Input Voltage (V)165 V - 285 V (adjustable to 150 V - 285 V)
    Output Voltage (V)230 V (adjustable to 220 V - 230 V - 240 V)
    Input Frequency (Hz)50/60 Hz autoselect
    Output Frequency (Hz)-
    Input Connections1 IEC-320-C14
    Output Connections(3) Schuko, (1) Schuko surge only
    Waveform Type-
    Recharge time (hours)-
    Battery TypeAutomatic battery test, deep-discharge protection, cold-start capable, replaceable batteries
    TopologyLine interactive
    USBYes
    SmartSlot-
    RJ-45-
    Other Connections-
    Control PanelLCD (UPS status and measurements, configuration of UPS settings)
    Alarm-
    ColorBlack
    Form Factor
  • Rack
  • Tower
    		•
    Package Contents-
    Width82 mm
    Depth285 mm
    Height260 mm
    Net Weight6.600 Kg
    Gross Weight7.600 kg
    Description
    The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.
    DescriptionEATON UPS Ellipse PRO 650 DIN
    VatTypeVAT
    Weight7.520000000
    Height145.000000000
    Width320.000000000
    Length390.000000000
    Description
    EATON UPS Ellipse PRO 650 USB IEC rack/tower - AC 230 V - 400 Watt - 650 VA - USB - IEC-320-C13 4 Output - 2U - 19inch
    Gross depth (mm)390.00
    Gross height (mm)315
    Gross weight7.7
    Gross width (mm)140
    Net weight6.8
    Packing quantity1.00
    Paper/Pasteboard800.00
    Plastic (No PET)100.00
    Tare weight (kg)0.90
    TI weight (kg)5.00
    Volume (m3)0.017199
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    Producer product nameEllipse PRO 650 DIN
    UPS topologyLine-Interactive
    AC outlets quantity4
    Capacity400
    Special featuresConvenient extra-flat design for easy installation in any office environment; Automatic Voltage Regulation (AVR); High performance surge-protection device compliant with IEC 61643-11 standard; Data line protection to ensure that the internet line (including xDSL) is protected against surges; LCD display for real-time status and measurements; 4 outlets to connect your PC + peripherals; EcoControl function helps you save up to 20 % energy compared to previous generation UPSs; HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux); Easy to replace battery helps to extend UPS service life
    Capacity650
    Form factorTower
    Producer product familyUPS
    Colour of productBlack
    Certification IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
    Palette Qty100
    ProducerEaton
    Warranty36
    Description
    Eaton Ellipse PRO 650 DIN

    Характеристики
    UPS стабилизаторы напряжения 650
    гнездo (USB) да
    Тип Line Interactive
    Выходная мощность 400
    UPS стабилизаторы напряжения 400
    гнездo (RJ-45) да
    аккумуляторы Аккумуляторы
    UPS topologyLine-Interactive
    Output power capacity0.65 kVA
    Output power400 W
    Input operation voltage (min)150 V
    Input operation voltage (max)285 V
    Input frequency50/60 Hz
    Output operation voltage (min)220 V
    Output operation voltage (max)240 V
    Output frequency50 Hz
    Emergency Power Off (EPO)Yes
    Surge protectionYes
    Surge protection featuresFax, Modem, Network, Telephone
    AC outlet typesType F
    Power plugC14 coupler
    AC outlets quantity4 AC outlet(s)
    USB 2.0 ports quantity1
    Modem (RJ-11) ports1
    Ethernet LAN (RJ-45) ports1
    Battery technologySealed Lead Acid (VRLA)
    Typical backup time at half load9 min
    Hot-swap batteryNo
    Automatic battery testYes
    Cold startYes
    Form factorTower
    Product colourBlack
    Rack capacity2U
    Display typeLCD
    LED indicatorsYes
    SafetyIEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
    Width82 mm
    Depth285 mm
    Height260 mm
    Weight6.6 kg
    Harmonized System (HS) code85078000
    Nominal input voltage230 V
    Description
    Eaton Ellipse PRO 650 DIN. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 400 W. AC outlet types: Type F, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Width: 82 mm, Depth: 285 mm, Height: 260 mm
    Description
    400 Watts | 650 VA | Topology LineInteractive | Input ports Single, IEC320 C14 (10AMP) | 1xUSB | Desktop/pedestal | Rack | Colour Black
    Status7 dienas
    Description
    The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard. - LCD display for real-time status and measurements. - Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost). - EcoControl function helps you save up to 20% energy compared to previous generation UPSs. - Includes a high performance surge-protection device which complies with IEC 61643-1 standard. - Up to 8 outlets to connect your PC & peripherals. - Convenient extra-flat design for easy installation in any office environment. - USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings. - Protects data connections such as Ethernet, internet and telephone lines.

    UPS topology Line-Interactive
    Output power capacity 0.65 kVA
    Output power 400 W
    Input operation voltage (min) 150 V
    Input operation voltage (max) 285 V
    Input frequency 50/60 Hz
    Output operation voltage (min) 220 V
    Output operation voltage (max) 240 V
    Output frequency 50 Hz
    Emergency Power Off (EPO) Y
    Surge protection Y
    Surge protection features Fax, Modem, Network, Telephone
    AC outlet types Type F
    Power plug C14 coupler
    AC outlets quantity 4 AC outlet(s)
    USB 2.0 ports quantity 1
    Modem (RJ-11) ports 1
    Ethernet LAN (RJ-45) ports 1
    Battery technology Sealed Lead Acid (VRLA)
    Typical backup time at half load 9 min
    Hot-swap battery N
    Automatic battery test Y
    Cold start Y
    Form factor Tower
    Product colour Black
    Rack capacity 2U
    Display type LCD
    LED indicators Y
    Safety IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
    Width 82 mm
    Depth 285 mm
    Height 260 mm
    Weight 6.6 kg
    Harmonized System (HS) code 85078000
    Nominal input voltage 230 V
    DescriptionEATON UPS Ellipse PRO 650 DIN
    VatTypeVAT
    Weight7.520000000
    Height145.000000000
    Width320.000000000
    Length390.000000000
    Description
    EATON UPS Ellipse PRO 650 USB IEC rack/tower - AC 230 V - 400 Watt - 650 VA - USB - IEC-320-C13 4 Output - 2U - 19inch
    ShortDesc650VA/400W UPS, line-interactive, DIN 3+1
    UPS Power (VA)650 VA
    UPS Power (W)400 W
    Runtime (min)9/5
    Input Voltage (V)165 V - 285 V (adjustable to 150 V - 285 V)
    Output Voltage (V)230 V (adjustable to 220 V - 230 V - 240 V)
    Input Frequency (Hz)50/60 Hz autoselect
    Output Frequency (Hz)-
    Input Connections1 IEC-320-C14
    Output Connections(3) Schuko, (1) Schuko surge only
    Waveform Type-
    Recharge time (hours)-
    Battery TypeAutomatic battery test, deep-discharge protection, cold-start capable, replaceable batteries
    TopologyLine interactive
    USBYes
    SmartSlot-
    RJ-45-
    Other Connections-
    Control PanelLCD (UPS status and measurements, configuration of UPS settings)
    Alarm-
    ColorBlack
    Form Factor
  • Rack
  • Tower
    		•
    Package Contents-
    Width82 mm
    Depth285 mm
    Height260 mm
    Net Weight6.600 Kg
    Gross Weight7.600 kg
    Description
    The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.
    DescriptionEATON UPS Ellipse PRO 650 DIN
    VatTypeVAT
    Weight7.520000000
    Height145.000000000
    Width320.000000000
    Length390.000000000
    Description
    EATON UPS Ellipse PRO 650 USB IEC rack/tower - AC 230 V - 400 Watt - 650 VA - USB - IEC-320-C13 4 Output - 2U - 19inch
    Gross depth (mm)390.00
    Gross height (mm)315
    Gross weight7.7
    Gross width (mm)140
    Net weight6.8
    Packing quantity1.00
    Paper/Pasteboard800.00
    Plastic (No PET)100.00
    Tare weight (kg)0.90
    TI weight (kg)5.00
    Volume (m3)0.017199
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    Producer product nameEllipse PRO 650 DIN
    UPS topologyLine-Interactive
    AC outlets quantity4
    Capacity400
    Special featuresConvenient extra-flat design for easy installation in any office environment; Automatic Voltage Regulation (AVR); High performance surge-protection device compliant with IEC 61643-11 standard; Data line protection to ensure that the internet line (including xDSL) is protected against surges; LCD display for real-time status and measurements; 4 outlets to connect your PC + peripherals; EcoControl function helps you save up to 20 % energy compared to previous generation UPSs; HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux); Easy to replace battery helps to extend UPS service life
    Capacity650
    Form factorTower
    Producer product familyUPS
    Colour of productBlack
    Certification IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
    Palette Qty100
    ProducerEaton
    Warranty36
    Description
    Eaton Ellipse PRO 650 DIN
