| Hard drive cage interfaces | SATA |
| Memory frequency | 4800 MHz |
| Number of cores | 6C |
| Type of installed disc | SSD |
| CPU model | E-2436 |
| Hard drive cage interfaces | SAS |
| Internal backup device support | No |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Hot-plug fans support | No |
| Tower to rack conversion support | No |
| I/O connectors | 1 x DisplayPort |
| I/O connectors | 1 x USB Service |
| I/O connectors | 4 x RJ-45 LAN |
| I/O connectors | 1 x 15-pin D-Sub |
| Form factor (width) | 2,5'' (SFF) |
| Optical disk drive | None |
| CPU series | Intel Xeon (Hexa Core) |
| Number of CPUs installed | 1 |
| Max supported number of processors | 1 |
| Housing | Rack 1U |
| Network interface | 4 x 10/100/1000 Mbit/s |
| Kind of memory | Unbuffered |
| Kind of memory | ECC |
| Memory type | DDR5 |
| Hot-swapping support | Yes |
| Disk controller | SATA |
| RAID levels | 0 |
| RAID levels | 1 |
| RAID levels | 10 (1+0) |
| Hot-plug power supply support | Yes |
| Color | Not applicable |
| RAID levels | 5 |
| I/O connectors | 7 x USB 3.0 |
| Disk interface | SATA |

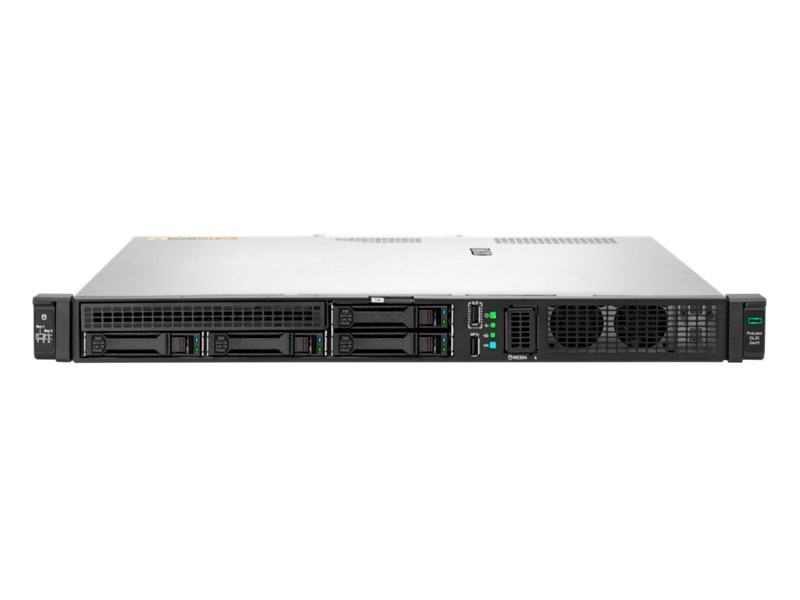

| Model | HPE ProLiant DL20 Gen11 |
| Chipset type | Intel C262 |
| CPU frequency | 2.9 (GHz) |
| CPU - other information | Intel Xeon E-2436 (6-Core, 2.9 GHz, 65W) |
| RAM memory installed | 32 (GigaBajt) |
| Max memory size | 128 (GigaBajt) |
| Number of memory slots used | 1 |
| Number of available memory slots | 3 |
| Total number of memory slots | 4 |
| RAM - other information | HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 Unbuffered Standard Memory Kit |
| Network card - other information | HPE embedded 1Gb 4-port BCM5719 network adapter |
| Controller - other information | Embedded Intel VROC SATA software RAID Notes: SATA only |
| Max. number of disks in current configuration | 4 |
| Number of HDDs installed | 2 |
| Total capacity of all disks installed | 960 (GigaBajt) |
| Number of power supplies installed | 1 |
| Max. number of power supplies | 2 |
| Power supply output current | 800 (Watt) |
| PSU efficiency | 96 (Percent) |
| Number of fans | 3 |
| Height | 4.32 (Centimeter) |
| Width | 43.46 (Centimeter) |
| Depth | 37.84 (Centimeter) |
| Weight | 12 (kilogram) |
| Warranty | Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response |
| Accessories included | HPE Short Friction Rail Kit |
| Other features | PCI-Express Slots: 1x PCIe 5.0 CEM slot, 1 Internal OCP Storage Controller slot, 1 External OCP 3.0 Network Controller slot |
| Width | 255 |
| Height | 678 |
| Depth | 579 |
| Weight | 13200 |
| Description |
HPE ProLiant DL20 Gen11 E-2436 2.9GHz 6-core 1P 32GB-DR 4SFF 800W RPS EU P71375-425 |
