Manufacturer: LEVELONE

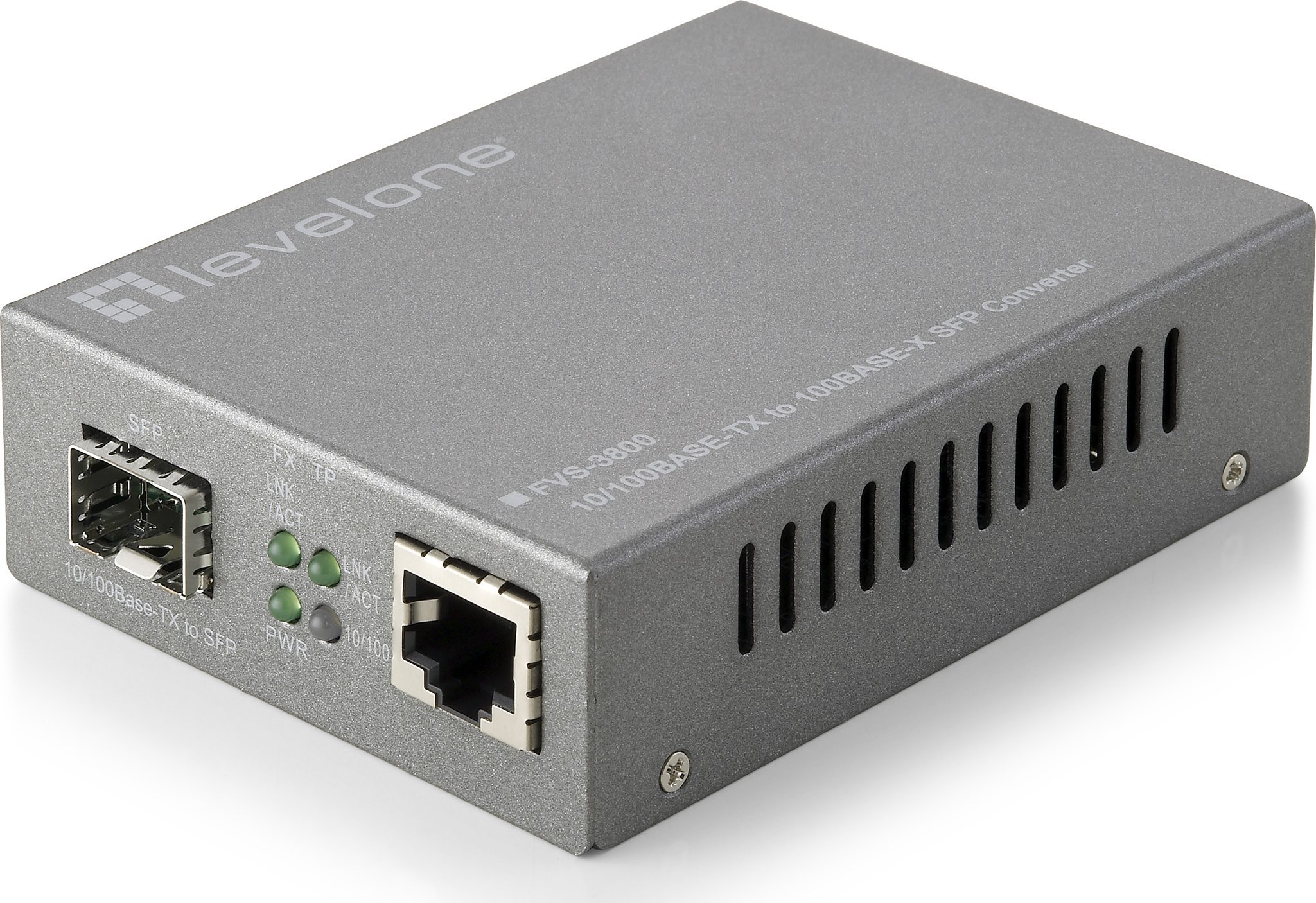

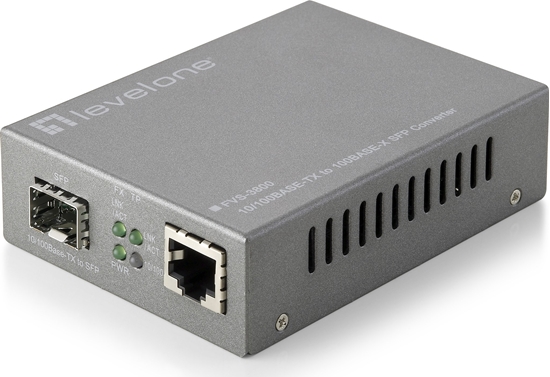

Level One LevelOne Konverter FVS-3800 10/100TX>100 X SFP

€77.50 incl tax

SKU: ST04495073

Manufacturer part number: FVS-3800

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	21	€77.50 incl tax
PL	8 - 15 days	21	€111.30 incl tax

Qty:

Specifications

Products specifications

Status

7 dienas

Description

The LevelOne Web Smart Media Converter FVS-3800 is designed to make conversion between 10/100BASE-TX and 100BASE-X SFP Ethernet. With web-based management, the network administrator can logon to the converter remotely to monitor, configure and control the status of each unit. The overall network reliability is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications. - HTTP Management with remote firmware upgrade supported - ICMP and ARP protocols supported - DHCP Client for easy IP address setup - LLR (Link Loss Return) supported - IEEE 802.1Q VLAN and Double VLAN (Q-in-Q) supported - Support 802.3x Flow Control to prevent lost data by controlling the device flow loading

Maximum data transfer rate	100 Mbit/s
Converter input interface	10Base-T, 100Base-TX
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Jumbo frames support	Y
Flow control support	Y
Fiber optic connector	SFP
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
DC-in jack	Y
Internal	N
LED indicators	Y
Product colour	Grey
Country of origin	Taiwan
Certification	FCC Part 15 Class A, CE
Input voltage	5 V
Input current	1 A
Power consumption (typical)	1.5 W
External power adapter	Y
Width	70.3 mm
Depth	26.2 mm
Height	94 mm
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Package width	160 mm
Package depth	220 mm
Package height	60 mm
Package weight	470 g
Manual	Y
Harmonized System (HS) code	85176990

Products specifications

Status

7 dienas

Description

Maximum data transfer rate	100 Mbit/s
Converter input interface	10Base-T, 100Base-TX
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Jumbo frames support	Y
Flow control support	Y
Fiber optic connector	SFP
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
DC-in jack	Y
Internal	N
LED indicators	Y
Product colour	Grey
Country of origin	Taiwan
Certification	FCC Part 15 Class A, CE
Input voltage	5 V
Input current	1 A
Power consumption (typical)	1.5 W
External power adapter	Y
Width	70.3 mm
Depth	26.2 mm
Height	94 mm
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Package width	160 mm
Package depth	220 mm
Package height	60 mm
Package weight	470 g
Manual	Y
Harmonized System (HS) code	85176990
