    Manufacturer: LEVELONE

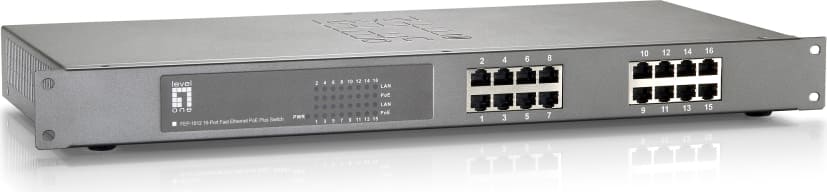

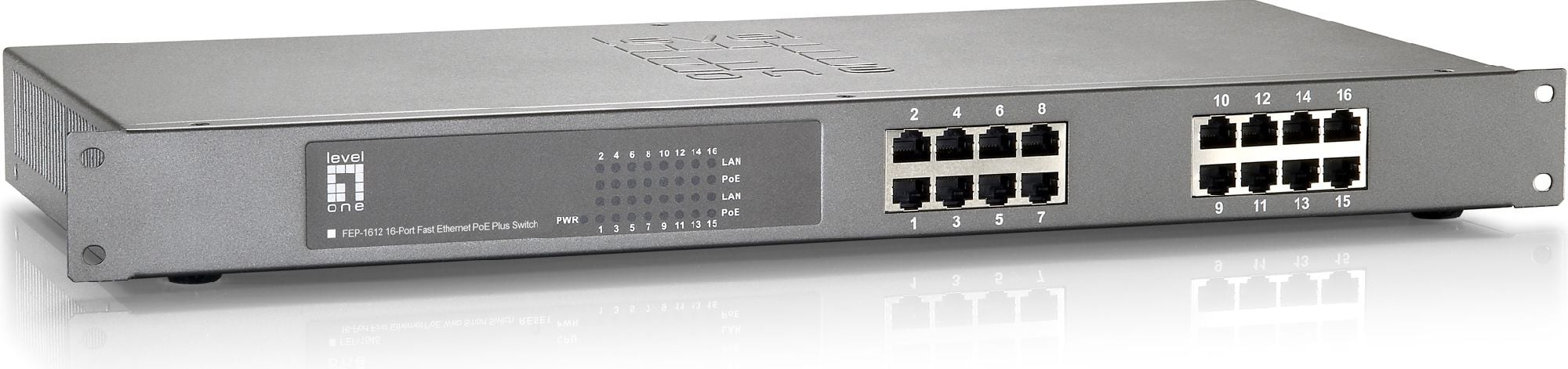

    Level One LevelOne Switch 16x FE FEP-1612 19" 480W 16xPoE


    €608.32 incl tax

    SKU: ST04523579
    Manufacturer part number: FEP-1612
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties RJ-45
    Status7 dienas
    Description
    LevelOne FEP-1612 features 16 10/100Mbps Fast Ethernet ports with IEEE 802.3at/af PoE interfaces. It supports MDI / MDI-X convertible on 16 10/100Mbps ports and provides PoE inject function on PoE ports which are able to IEEE 802.3af or 802.3at compliant powered devices remotely. The FEP-1612 equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types in straight through or crossover. It also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kind of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications. The FEP-1612 features non-blocking 3.2Gbps backplane that greatly simplifies the tasks of upgrading your LAN for catering to increase bandwidth demands. - IEEE 802.3af/at PoE compliant to simplify deployment and installation - Auto-detection and protection of non-standard PoE devices - Supports 4K MAC address auto-learning and auto-aging - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - 19-inch metal housing - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Total PoE power budget: 480W, up to 30W per port

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 16
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Cable types supported Cat5
    Full duplex Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address table 4096 entries
    Switching capacity 3.2 Gbit/s
    Store-and-forward Y
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Rack mounting Y
    Stackable N
    Product colour Grey
    LED indicators Activity, LAN, PoE, Power
    Country of origin Taiwan
    Certification FCC, CE
    Buffer size 160 KB
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Input current 5 A
    Power consumption (typical) 500 W
    Power over Ethernet (PoE) Y
    Power over Ethernet plus (PoE+) ports quantity 16
    Total Power over Ethernet (PoE) budget 480 W
    Operating temperature (T-T) 0 - 45 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Width 200 mm
    Depth 480 mm
    Height 44 mm
    Weight 2.85 kg
    Cables included AC
    Quick start guide Y
    Package width 260 mm
    Package depth 535 mm
    Package height 90 mm
    Package weight 3.7 kg
    Harmonized System (HS) code 85176990

    Products specifications
    Properties RJ-45
    Status7 dienas
    Description
    LevelOne FEP-1612 features 16 10/100Mbps Fast Ethernet ports with IEEE 802.3at/af PoE interfaces. It supports MDI / MDI-X convertible on 16 10/100Mbps ports and provides PoE inject function on PoE ports which are able to IEEE 802.3af or 802.3at compliant powered devices remotely. The FEP-1612 equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types in straight through or crossover. It also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kind of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications. The FEP-1612 features non-blocking 3.2Gbps backplane that greatly simplifies the tasks of upgrading your LAN for catering to increase bandwidth demands. - IEEE 802.3af/at PoE compliant to simplify deployment and installation - Auto-detection and protection of non-standard PoE devices - Supports 4K MAC address auto-learning and auto-aging - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - 19-inch metal housing - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Total PoE power budget: 480W, up to 30W per port

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 16
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Cable types supported Cat5
    Full duplex Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address table 4096 entries
    Switching capacity 3.2 Gbit/s
    Store-and-forward Y
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Rack mounting Y
    Stackable N
    Product colour Grey
    LED indicators Activity, LAN, PoE, Power
    Country of origin Taiwan
    Certification FCC, CE
    Buffer size 160 KB
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Input current 5 A
    Power consumption (typical) 500 W
    Power over Ethernet (PoE) Y
    Power over Ethernet plus (PoE+) ports quantity 16
    Total Power over Ethernet (PoE) budget 480 W
    Operating temperature (T-T) 0 - 45 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Width 200 mm
    Depth 480 mm
    Height 44 mm
    Weight 2.85 kg
    Cables included AC
    Quick start guide Y
    Package width 260 mm
    Package depth 535 mm
    Package height 90 mm
    Package weight 3.7 kg
    Harmonized System (HS) code 85176990
