    Manufacturer: ATEN

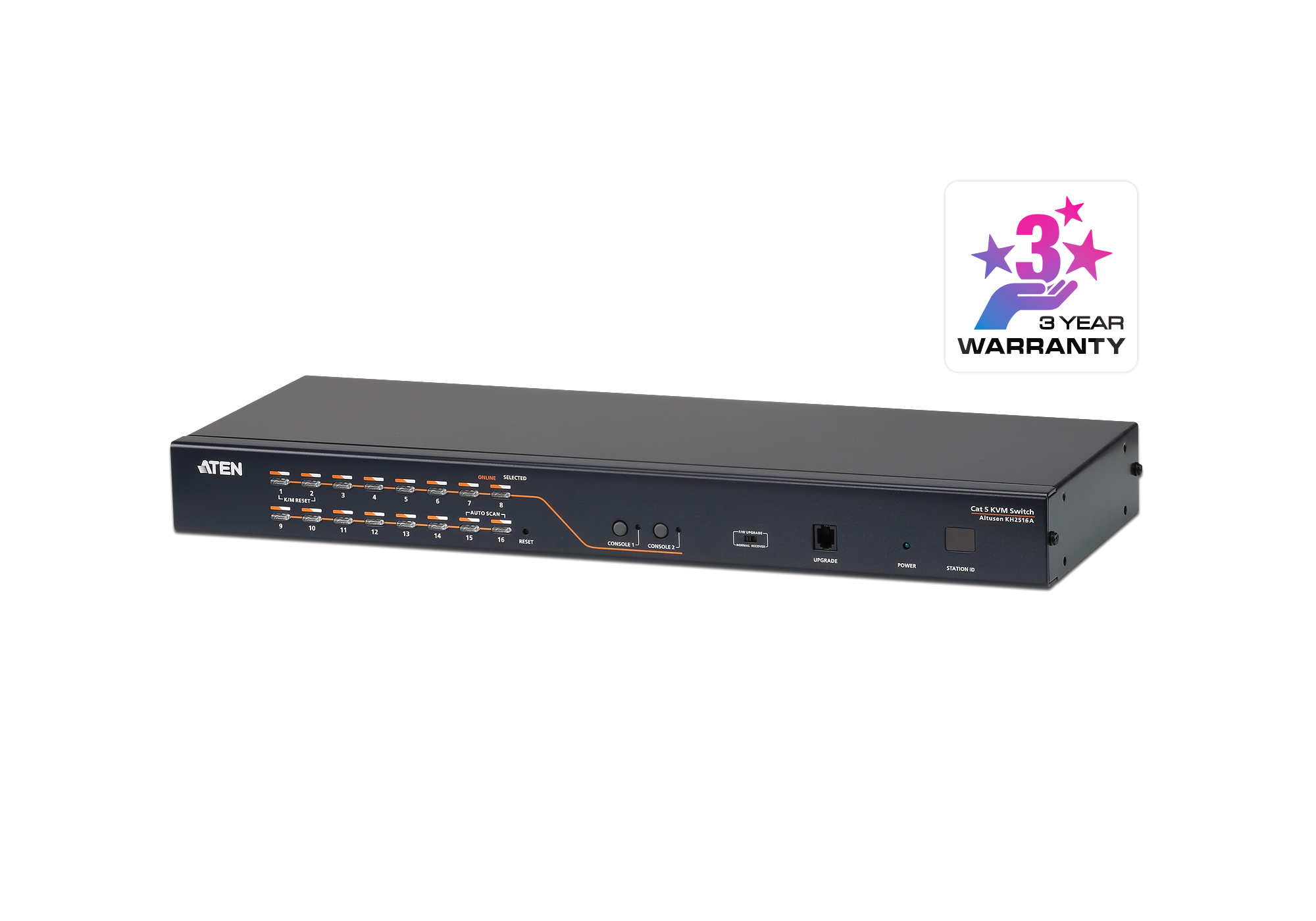

    ATEN 16-Port 2-console Cat 5e/6 KVM Switch


    €1107.45 incl tax

    SKU: ST05098746
    Manufacturer part number: KH2516A-AX-G
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    RJ-45 port 16
    Properties USB
    Number of computers controlled32
    Keyboard port typeUSB, PS/2
    Mouse port typeUSB, PS/2
    Video port typeVGA
    Console portsPS/2, USB A, VGA (D-Sub)
    Console USB ports quantity2
    USB connector typeUSB Type-A
    PS/2 ports quantity2
    Ethernet LANY
    Ethernet LAN (RJ-45) ports32
    HD typeWUXGA
    Maximum resolution1920 x 1200 pixels
    Video bandwidth60 Hz
    Scan interval1,255 s
    Product colourBlack
    Housing materialMetal
    LED indicatorsY
    Push buttonY
    Hot keysY
    Power sourceAC
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Input current1 A
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width437.2 mm
    Depth163.7 mm
    Height44 mm
    Weight3.21 kg
    Package width116 mm
    Package depth540 mm
    Package height233 mm
    Package weight3.77 kg
    Quick installation guideY
    ManualY
    Master (outer) case net weight9.63 kg
    Harmonized System (HS) code85176200
    Master (outer) case width375 mm
    Master (outer) case length565 mm
    Master (outer) case height258 mm
    Master (outer) case gross weight12.5 kg
    Products per master (outer) case3 pc(s)
    Description
    ATEN 16-Port 2-console Cat 5e/6 KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 437.2 mm, Depth: 163.7 mm, Height: 44 mm
    Gross depth (mm)540.00
    Gross height (mm)233.00
    Gross weight3.77
    Gross width (mm)116.00
    Net weight2.85
    Packing quantity1.00
    Paper/Pasteboard736.00
    Plastic (No PET)184.00
    Tare weight (kg)0.92
    Volume (m3)0.01
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    ProducerAten
    Producer product nameKH2516A
    Producer product family2-Console 16-Port Cat 5 KVM Switch with Daisy-Chain Port
    Colour of productBlack
    MaterialMetal
    Compatible operating systemsWindows, Linux, Mac and Sun
    Operating temperature (T-T)0-50°C
    Ports quantity4 x USB Type A Female; 2 x 6-pin Mini-DIN Female (Purple); 2 x 6-pin Mini-DIN Female (Green); 2 x HDB-15 Female (Blue)
    Resolution1920 x 1200 @ 60 Hz (30 m); 1600 x 1200 @ 60 Hz (40 m); 1280 x 1024 @ 75 Hz (50 m)
    Other featuresCompatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types; Supports up to 10 user and 1 administrator accounts; OSD Backup/Restore feature; By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console
    Warranty24

    Products specifications
    RJ-45 port 16
    Properties USB
    Number of computers controlled32
    Keyboard port typeUSB, PS/2
    Mouse port typeUSB, PS/2
    Video port typeVGA
    Console portsPS/2, USB A, VGA (D-Sub)
    Console USB ports quantity2
    USB connector typeUSB Type-A
    PS/2 ports quantity2
    Ethernet LANY
    Ethernet LAN (RJ-45) ports32
    HD typeWUXGA
    Maximum resolution1920 x 1200 pixels
    Video bandwidth60 Hz
    Scan interval1,255 s
    Product colourBlack
    Housing materialMetal
    LED indicatorsY
    Push buttonY
    Hot keysY
    Power sourceAC
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Input current1 A
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width437.2 mm
    Depth163.7 mm
    Height44 mm
    Weight3.21 kg
    Package width116 mm
    Package depth540 mm
    Package height233 mm
    Package weight3.77 kg
    Quick installation guideY
    ManualY
    Master (outer) case net weight9.63 kg
    Harmonized System (HS) code85176200
    Master (outer) case width375 mm
    Master (outer) case length565 mm
    Master (outer) case height258 mm
    Master (outer) case gross weight12.5 kg
    Products per master (outer) case3 pc(s)
    Description
    ATEN 16-Port 2-console Cat 5e/6 KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 437.2 mm, Depth: 163.7 mm, Height: 44 mm
    Gross depth (mm)540.00
    Gross height (mm)233.00
    Gross weight3.77
    Gross width (mm)116.00
    Net weight2.85
    Packing quantity1.00
    Paper/Pasteboard736.00
    Plastic (No PET)184.00
    Tare weight (kg)0.92
    Volume (m3)0.01
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    ProducerAten
    Producer product nameKH2516A
    Producer product family2-Console 16-Port Cat 5 KVM Switch with Daisy-Chain Port
    Colour of productBlack
    MaterialMetal
    Compatible operating systemsWindows, Linux, Mac and Sun
    Operating temperature (T-T)0-50°C
    Ports quantity4 x USB Type A Female; 2 x 6-pin Mini-DIN Female (Purple); 2 x 6-pin Mini-DIN Female (Green); 2 x HDB-15 Female (Blue)
    Resolution1920 x 1200 @ 60 Hz (30 m); 1600 x 1200 @ 60 Hz (40 m); 1280 x 1024 @ 75 Hz (50 m)
    Other featuresCompatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types; Supports up to 10 user and 1 administrator accounts; OSD Backup/Restore feature; By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console
    Warranty24
