    Manufacturer: ATEN

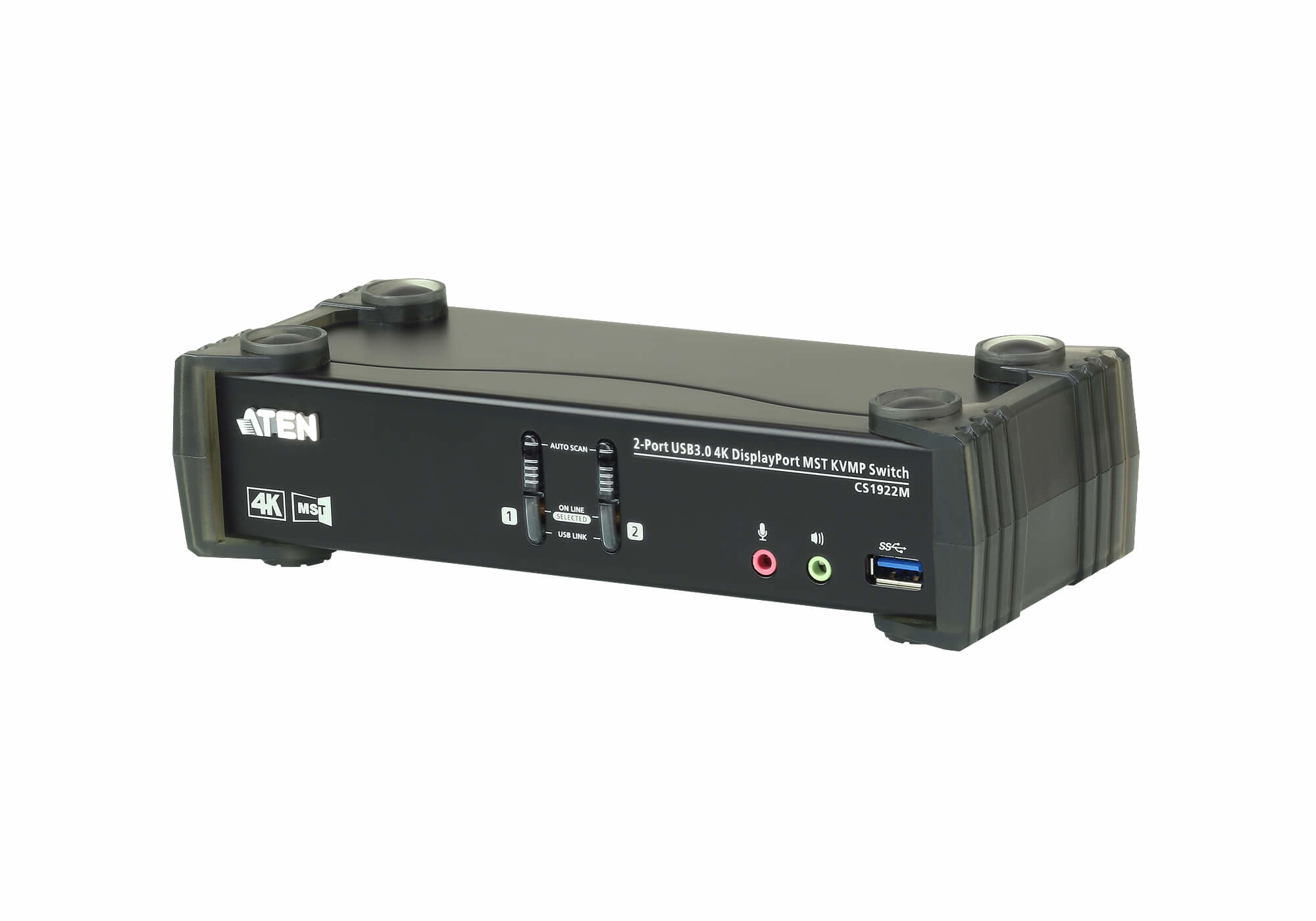

    Aten 2-Port USB 3.0 4K DisplayPort MST KVMP Switch


    €427.77 incl tax

    SKU: ST04593454
    Manufacturer part number: CS1922M-AT-G
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    Properties Display port
    RJ-45 port 2
    Properties USB 3.0
    Number of computers controlled2
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeDisplayPort
    Console ports3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
    DisplayPorts quantity2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity2
    Console USB ports quantity2
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    USB connector typeUSB Type-A, USB Type-B
    Audio connectionsYes
    Headphone outputs4
    Number of microphone inputs4
    DC-in jackYes
    HD type4K Ultra HD
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval1,5,99 s
    Firmware upgradeableYes
    Product colourBlack
    Housing materialMetal, Plastic
    LED indicatorsYes
    Push buttonYes
    Hot keysYes
    Built-in displayNo
    Power sourceDC
    DC input voltage5 V
    Power consumption (typical)4.09 W
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width210 mm
    Depth88 mm
    Height55.5 mm
    Weight560 g
    Package width100 mm
    Package depth283 mm
    Package height173 mm
    Package weight1.84 kg
    Quick installation guideYes
    ManualYes
    Master (outer) case net weight2.8 kg
    Harmonized System (HS) code85176200
    Master (outer) case width292 mm
    Master (outer) case length517 mm
    Master (outer) case height194 mm
    Master (outer) case gross weight9.85 kg
    Products per master (outer) case5 pc(s)
    Description
    ATEN 2-Port USB 3.0 4K DisplayPort MST KVMP Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 4.09 W. Width: 210 mm, Depth: 88 mm, Height: 55.5 mm
    Gross depth (mm)517.00
    Gross height (mm)194.00
    Gross weight9.85
    Gross width (mm)292.00
    Net weight7.00
    Packing quantity1.00
    Paper/Pasteboard2000.00
    Plastic (No PET)850.00
    Tare weight (kg)2.85
    Volume (m3)0.03
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    ProducerAten
    Warranty24
