    Manufacturer: LEVELONE

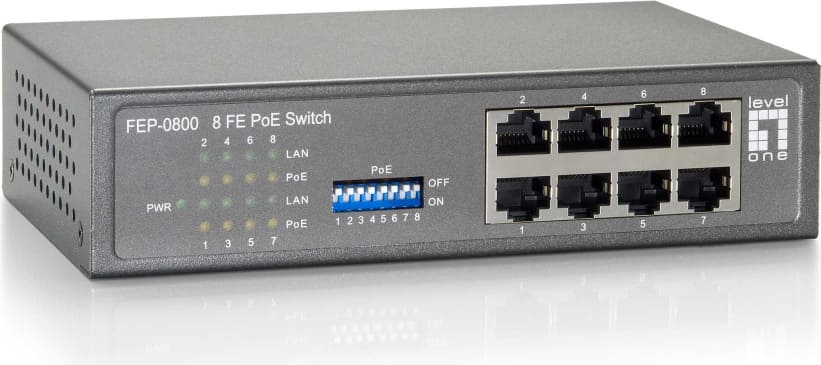

    Level One LevelOne Switch 8x FE FEP-0800 90W 8xPoE


    €159.62 incl tax

    SKU: ST03744755
    Manufacturer part number: FEP-0800
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties RJ-45
    Status7 dienas
    Description
    FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports. - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - PoE on/off control per port by dip switches - Total PoE power budget: 85W, up to 30W per port - Simple Plug and Play installation

    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Power connector DC-in jack
    Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Full duplex Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address table 1024 entries
    Switching capacity 1.6 Gbit/s
    Store-and-forward Y
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Rack mounting N
    Stackable N
    Product colour Black, Grey
    LED indicators Activity, LAN, PoE, Power
    On/off switch Y
    Country of origin Taiwan
    Certification FCC, CE, RoHS
    Buffer size 64 KB
    Power supply included Y
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Output voltage 56 V
    Power consumption (typical) 90 W
    Power protection features Over current, Short circuit
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 8
    Power over Ethernet (PoE) power per port 30 W
    Total Power over Ethernet (PoE) budget 85 W
    Operating temperature (T-T) 0 - 45 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Width 165 mm
    Depth 99 mm
    Height 41 mm
    Weight 1.4 kg
    Manual Y
    AC adapter included Y
    Package type Box
    Package width 371 mm
    Package depth 230 mm
    Package height 82 mm
    Package weight 1.6 kg
    Harmonized System (HS) code 85176990

    Products specifications
    Properties RJ-45
    Status7 dienas
    Description
    FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports. - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - PoE on/off control per port by dip switches - Total PoE power budget: 85W, up to 30W per port - Simple Plug and Play installation

    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Power connector DC-in jack
    Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Full duplex Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address table 1024 entries
    Switching capacity 1.6 Gbit/s
    Store-and-forward Y
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Rack mounting N
    Stackable N
    Product colour Black, Grey
    LED indicators Activity, LAN, PoE, Power
    On/off switch Y
    Country of origin Taiwan
    Certification FCC, CE, RoHS
    Buffer size 64 KB
    Power supply included Y
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Output voltage 56 V
    Power consumption (typical) 90 W
    Power protection features Over current, Short circuit
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 8
    Power over Ethernet (PoE) power per port 30 W
    Total Power over Ethernet (PoE) budget 85 W
    Operating temperature (T-T) 0 - 45 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Width 165 mm
    Depth 99 mm
    Height 41 mm
    Weight 1.4 kg
    Manual Y
    AC adapter included Y
    Package type Box
    Package width 371 mm
    Package depth 230 mm
    Package height 82 mm
    Package weight 1.6 kg
    Harmonized System (HS) code 85176990
