Manufacturer: APC

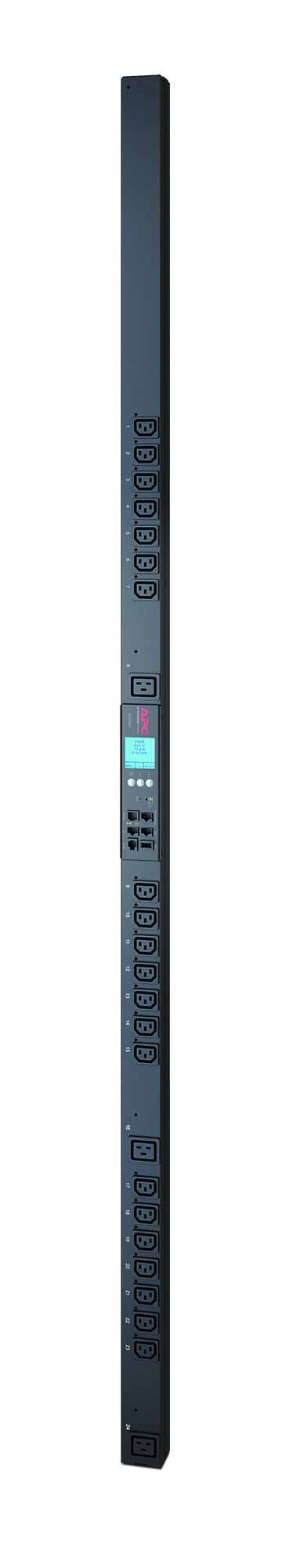

APC AP8659 power distribution unit (PDU) 24 AC outlet(s) 0U Black

€2008.66 incl tax

SKU: ST02377157

Manufacturer part number: AP8659

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	18	€2008.66 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

Socket (IEC320)	yes

Width	2000
Height	60
Depth	30
Weight	8000

Description	APC RACK PDU 2G, METERED BY OUTLET WITH SWITCHING, ZEROU, 16A, 100-240V, (21) C13 & (3) C19
CountryofOrigin	CHINA
PictureLocation	https://www2.f9baltic.com/productimages/big/AP8659.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/AP8659.jpg
Weight	8.250000
Height	167.000000
Length	2040.000000
Width	122.000000
BoxSize	0
PalletSize	0
Weight, kg	6.09
Width, mm	56
Depth, mm	51
Height, mm	1829
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL Listed, VCCI Class A, VDE
Input connection	IEC-320 C20
Operating temperature range (T-T), �C	-5 - 45
Operating relative humidity range, %	5 - 95
Storage temperature range (T-T), �C	-25 - 65
Nominal input voltage, V	200V, 208V, 230V
Input frequency, Hz	50/60
Output interface	(21) IEC 320 C13, (3) IEC 320 C19
Nominal output voltage, V	100V, 200V, 208V, 230V
Input current, A	20
Description
Description	Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A, 208V, (21) C13 & (3) C19, IEC309 Cord

PDU types	Metered, Metered-by-outlet, Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Nominal input voltage	200-230 V
Maximum current	16 A
AC input frequency	50 - 60 Hz
Nominal output voltage	200-230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	3680 W
Dimensions (WxDxH)	56 x 51 x 1829 mm
Weight	6.09 kg
Package dimensions (WxDxH)	162 x 117 x 2038 mm
Package weight	8.36 kg
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	RoHS
Description
Description	APC AP8659. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 200-230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz

Products specifications

1
Details 2
Details 3
Details 4

Socket (IEC320)	yes

Width	2000
Height	60
Depth	30
Weight	8000

Description	APC RACK PDU 2G, METERED BY OUTLET WITH SWITCHING, ZEROU, 16A, 100-240V, (21) C13 & (3) C19
CountryofOrigin	CHINA
PictureLocation	https://www2.f9baltic.com/productimages/big/AP8659.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/AP8659.jpg
Weight	8.250000
Height	167.000000
Length	2040.000000
Width	122.000000
BoxSize	0
PalletSize	0
Weight, kg	6.09
Width, mm	56
Depth, mm	51
Height, mm	1829
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL Listed, VCCI Class A, VDE
Input connection	IEC-320 C20
Operating temperature range (T-T), �C	-5 - 45
Operating relative humidity range, %	5 - 95
Storage temperature range (T-T), �C	-25 - 65
Nominal input voltage, V	200V, 208V, 230V
Input frequency, Hz	50/60
Output interface	(21) IEC 320 C13, (3) IEC 320 C19
Nominal output voltage, V	100V, 200V, 208V, 230V
Input current, A	20
Description
Description	Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A, 208V, (21) C13 & (3) C19, IEC309 Cord

PDU types	Metered, Metered-by-outlet, Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Nominal input voltage	200-230 V
Maximum current	16 A
AC input frequency	50 - 60 Hz
Nominal output voltage	200-230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	3680 W
Dimensions (WxDxH)	56 x 51 x 1829 mm
Weight	6.09 kg
Package dimensions (WxDxH)	162 x 117 x 2038 mm
Package weight	8.36 kg
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	RoHS
Description
Description	APC AP8659. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 200-230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz
