Manufacturer: ATEN

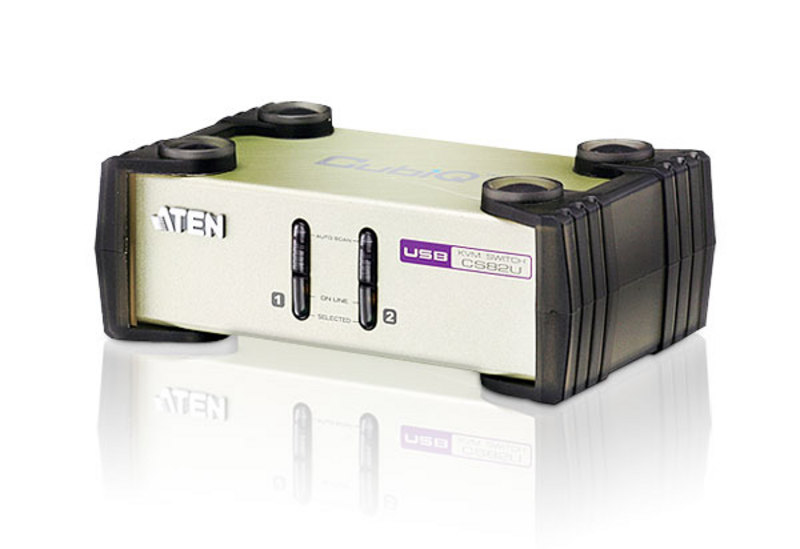

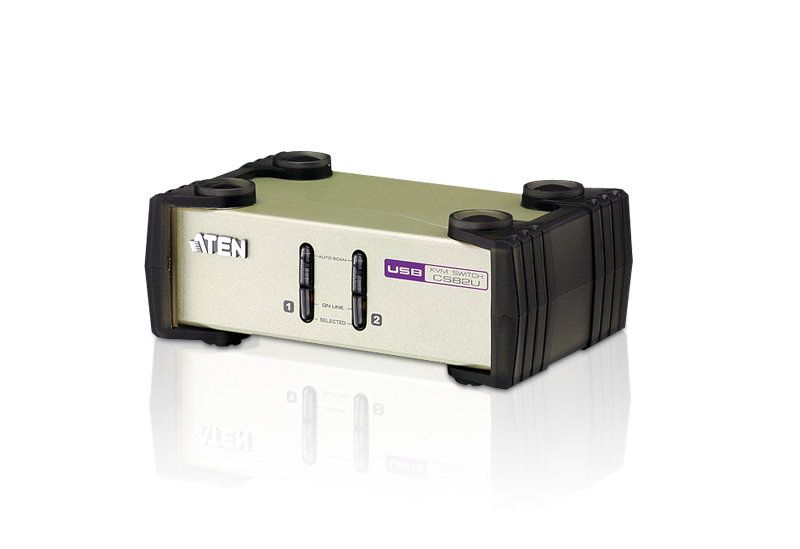

Aten 2-Port USB - PS/2 VGA KVM Switch (KVM Cables included)

€61.40 incl tax

SKU: ST00747262

Manufacturer part number: CS82U-AT

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	LT	3 - 5 days	90	€61.40 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3

RJ-45 port	2
Properties	USB

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Console ports	USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity	2
Console USB ports quantity	2
DC-in jack	Yes
HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Video bandwidth	60 Hz
Scan interval	3,5,10,20 s
DDC2B support	Yes
Rack mounting	No
Product colour	Light grey
Housing material	Metal
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Built-in display	No
Power source	DC
DC input voltage	5 V
Power consumption (typical)	0.72 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Width	88 mm
Depth	140 mm
Height	55.5 mm
Weight	869 g
Package width	59 mm
Package depth	239 mm
Package height	175 mm
Package weight	981 g
Quick installation guide	Yes
Manual	Yes
Master (outer) case net weight	8.69 kg
Harmonized System (HS) code	85176200
Master (outer) case width	328 mm
Master (outer) case length	497 mm
Master (outer) case height	196 mm
Master (outer) case gross weight	10.4 kg
Products per master (outer) case	10 pc(s)
Description
Description	ATEN 2-Port USB - PS/2 VGA KVM Switch (KVM Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Light grey, Housing material: Metal. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 88 mm, Depth: 140 mm, Height: 55.5 mm

Gross depth (mm)	239
Gross height (mm)	174
Gross weight	0.972
Gross width (mm)	60
Net weight	0.785
Packing quantity	1.00
Paper/Pasteboard	100.00
Plastic (No PET)	87.00
Tare weight (kg)	0.19
Volume (m3)	0.00249516
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Inner carton packing Qty	1.00
Producer product name	CS82U-AT
Other features	Console Ports: 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green); KVM Ports: 2 x SPHD-18 Female (Yellow); Power: 1 x DC Jack
Producer product family	2-Port PS/2-USB VGA KVM Switch
Resolution	2048 x 1536 @ 60Hz
Dimensions (WxDxH)	8.8 x 14 x 5.55
Operating temperature (T-T)	0 to 50
Operating relative humidity (H-H)	0 - 80% RH, Non-Condensing
Palette Qty	693
Producer	Aten
Warranty	24

Products specifications

1
Details 2
Details 3

RJ-45 port	2
Properties	USB

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Console ports	USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity	2
Console USB ports quantity	2
DC-in jack	Yes
HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Video bandwidth	60 Hz
Scan interval	3,5,10,20 s
DDC2B support	Yes
Rack mounting	No
Product colour	Light grey
Housing material	Metal
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Built-in display	No
Power source	DC
DC input voltage	5 V
Power consumption (typical)	0.72 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Width	88 mm
Depth	140 mm
Height	55.5 mm
Weight	869 g
Package width	59 mm
Package depth	239 mm
Package height	175 mm
Package weight	981 g
Quick installation guide	Yes
Manual	Yes
Master (outer) case net weight	8.69 kg
Harmonized System (HS) code	85176200
Master (outer) case width	328 mm
Master (outer) case length	497 mm
Master (outer) case height	196 mm
Master (outer) case gross weight	10.4 kg
Products per master (outer) case	10 pc(s)
Description
Description	ATEN 2-Port USB - PS/2 VGA KVM Switch (KVM Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Light grey, Housing material: Metal. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 88 mm, Depth: 140 mm, Height: 55.5 mm

Gross depth (mm)	239
Gross height (mm)	174
Gross weight	0.972
Gross width (mm)	60
Net weight	0.785
Packing quantity	1.00
Paper/Pasteboard	100.00
Plastic (No PET)	87.00
Tare weight (kg)	0.19
Volume (m3)	0.00249516
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Inner carton packing Qty	1.00
Producer product name	CS82U-AT
Other features	Console Ports: 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green); KVM Ports: 2 x SPHD-18 Female (Yellow); Power: 1 x DC Jack
Producer product family	2-Port PS/2-USB VGA KVM Switch
Resolution	2048 x 1536 @ 60Hz
Dimensions (WxDxH)	8.8 x 14 x 5.55
Operating temperature (T-T)	0 to 50
Operating relative humidity (H-H)	0 - 80% RH, Non-Condensing
Palette Qty	693
Producer	Aten
Warranty	24
