Manufacturer: ATEN

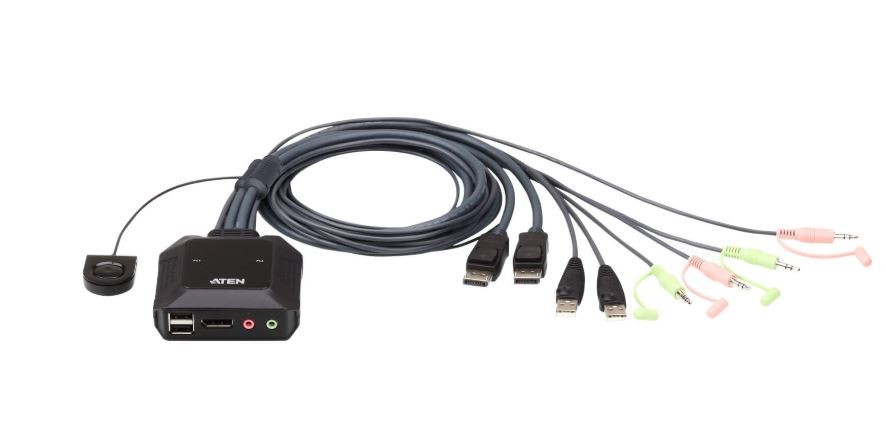

Aten 2-Port USB DisPlayPort Cable KVM Switch

€72.14 incl tax

SKU: ST02552275

Manufacturer part number: CS22DP-AT

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
PL	8 - 15 days	15	€72.14 incl tax
LT	5 - 15 days	5	€86.94 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

Properties	Display port
Properties	USB
RJ-45 port	2

No. of devices (max)	2
Console Ports	1x DisplayPort Female
Console Ports	2x Audio 3,5mm minijack Female
Console Ports	2x USB Type A Żeński
PC connectors	2x DisplayPort Male
PC connectors	4x Audio 3,5mm minijack Female
PC connectors	2x USB Type A Male
Resolution	4096 x 2160
Supported operating systems	Linux
Supported operating systems	Mac OS
Supported operating systems	Windows
Dimensions	8.34 x 8.42 x 3.04 cm
Weight	0.35 (kilogram)
Width	160
Height	190
Depth	60
Weight	460
Description
Description	Przełącznik KVM 2-portowy kabel USB DisplayPort CS22DP to jednostka sterująca, która umożliwia dostęp do dwóch komputerów z jednej konsoli USB i DisplayPort (klawiatura, wideo i mysz) z dźwiękiem. Dzięki CS22DP możesz szybko i łatwo przełączać się między dwoma komputerami DisplayPort za pomocą wygodnego przycisku zdalnego wyboru portu. CS22DP obsługuje operacje wieloplatformowe, umożliwiając przełączanie między dwoma komputerami z różnymi systemami operacyjnymi. Co więcej, kompaktowa konstrukcja pozwala na wydajną i uporządkowaną instalację, zapewniając idealne rozwiązanie zajmujące mało miejsca , aby dobrze zorganizować biurko. Konfiguracja CS22DP jest szybka i łatwa. Po prostu podłącz kable KVM do odpowiednich portów w CS22DP i na komputerach. Nie ma potrzeby instalowania oprogramowania ani konfigurowania urządzeń - wystarczy podłączyć i grać.

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
DisplayPorts quantity	1
DisplayPort version	1.1
Console USB ports quantity	2
USB 2.0 ports quantity	2
USB connector type	Micro-USB B, USB Type-A
Audio connections	Yes
Headphone outputs	1
Number of microphone inputs	1
Ethernet LAN	No
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Video bandwidth	30 Hz
HDCP	Yes
Hot-Plug support	Yes
Rack mounting	No
Product colour	Black
Housing material	Plastic
Wired remote switch	Yes
Cable length	1.2 m
Remote switch cable length	1.8 m
LED indicators	Yes
Built-in display	No
Power source	DC
DC input voltage	5 V
Power consumption (typical)	1.38 W
USB powered	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Sustainability certificates	RoHS
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	84.2 mm
Depth	83.4 mm
Height	30.4 mm
Weight	360 g
Package width	55 mm
Package depth	155 mm
Package height	225 mm
Package weight	435 g
Manual	Yes
Master (outer) case net weight	7.2 kg
Harmonized System (HS) code	85176200
Master (outer) case width	328 mm
Master (outer) case length	389 mm
Master (outer) case height	330 mm
Master (outer) case gross weight	9.33 kg
Products per master (outer) case	20 pc(s)
Description
Description	ATEN 2-Port USB DisPlayPort Cable KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 1.38 W. Sustainability certificates: RoHS

Gross depth (mm)	225
Gross height (mm)	55
Gross weight	1.14
Gross width (mm)	155
Net weight	0.35
Packing quantity	1.00
Paper/Pasteboard	671.50
Plastic (No PET)	118.50
Tare weight (kg)	0.79
Volume (m3)	0.001918125
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Type	2-Port KVM Switch
Other features	One KVM console controls two USB DisplayPort computers. Superior video quality – up to 4096 x 2160 @ 30 Hz. Supports DisplayPort Dual-Mode (DP++)* for directly outputting single-link HDMI and/or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter. Bus-powered design.
Producer product name	CS22DP
Producer product family	USB DisplayPort Cable with Remote Port Selector
I/O ports	Console Ports: 1 x DisplayPort Female, 2 x USB Type A Female, 1 x 3.5mm Audio Jack Female (Green), 1 x 3.5mm Audio Jack Female (Pink); KVM (Computer) Ports: 2 x DisplayPort Male, 2 x USB Type A Male, 2 x 3.5mm Audio Jack Male (Green), 2 x 3.5mm Audio Jack Male (Pink); Power (Optional): 1 x USB Micro Type B Female
Palette Qty	877
Producer	Aten
Warranty	24
