| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.128 MB |
| MAC address filtering | Yes |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, Power |
| Certification | FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
| Mean time between failures (MTBF) | 2053751 h |
| Shipping (inner) case height | 44.3 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case length | 37 cm |
| Shipping (inner) case net weight | 7.1 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 398.9 kg |
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Products per pallet (air) | 480 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 196.7 cm |
| Pallet gross weight (sea) | 398.9 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Products per pallet (sea) | 480 pc(s) |
| Pallet height (sea) | 196.7 cm |
| Shipping (inner) case gross weight | 7.79 kg |
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 2.8 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight | 440 g |
| Included power plug types | EU |
| Package width | 208 mm |
| Package depth | 250 mm |
| Package height | 68 mm |
| Package weight | 654 g |
| Harmonized System (HS) code | 85176990 |
| Data transfer rate | 2000 Mbit/s |
| Dimensions (WxDxH) | 162 x 102 x 28 mm |
| Connectivity technology | Wired |
| Description |

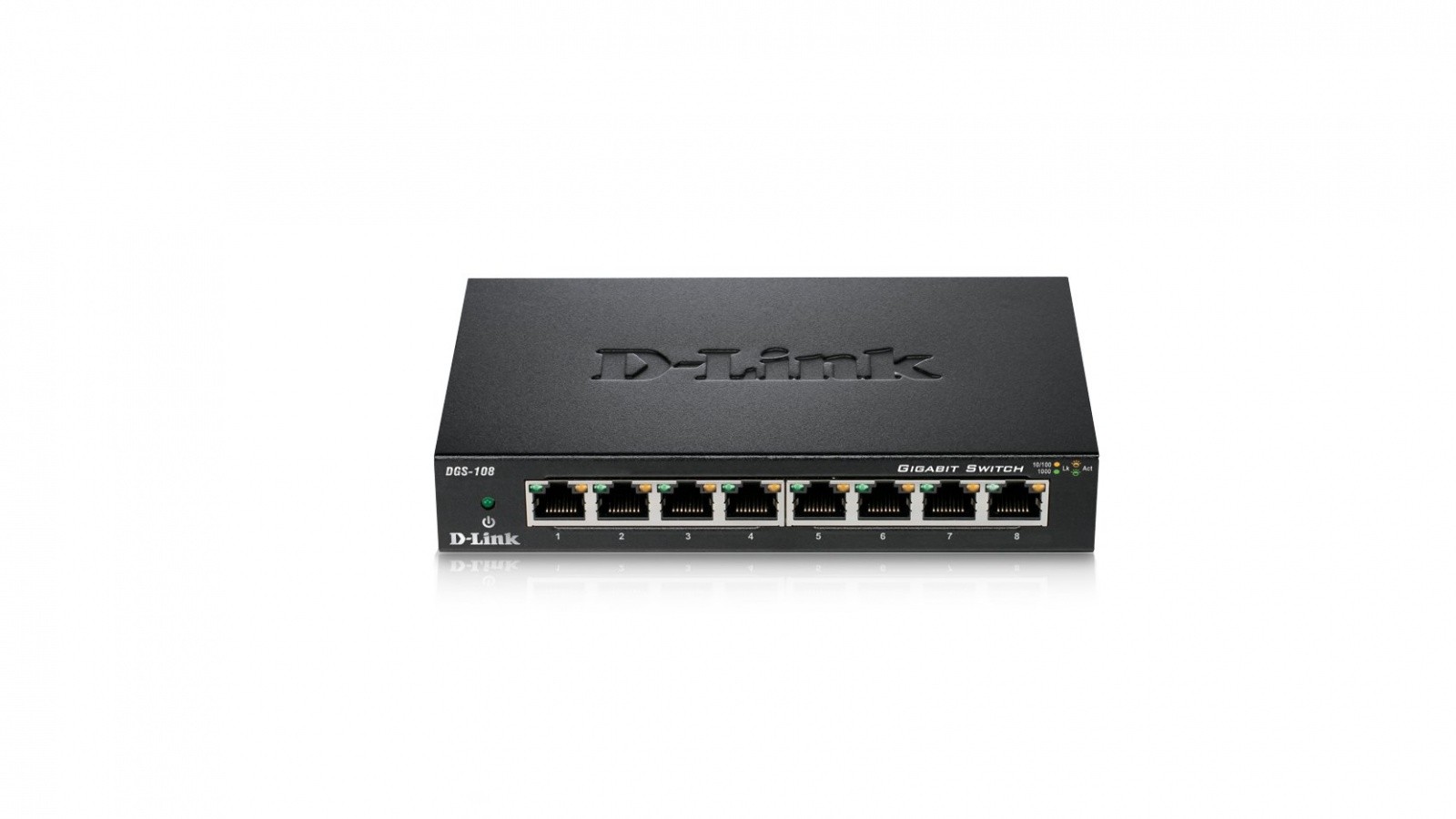

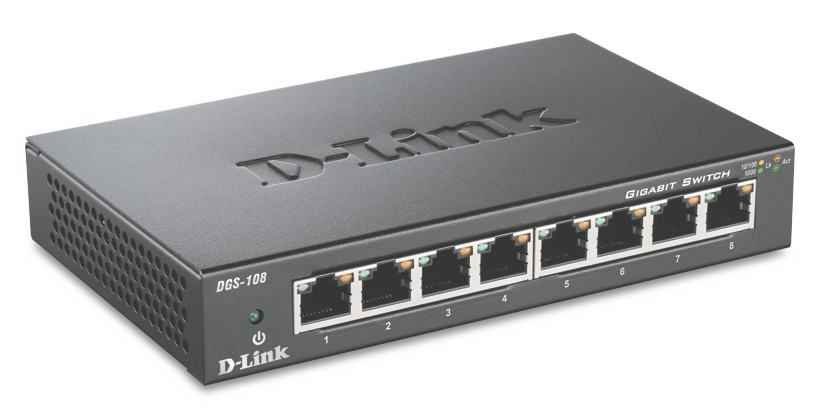

| D-Link DGS-108. Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack |
