Switch type | Unmanaged |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (copper) ports quantity | 8 |
Power connector | DC-in jack |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
10G support | N |
Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
Full duplex | Y |
Flow control support | Y |
Auto MDI/MDI-X | Y |
MAC address auto-learning supported | Y |
MAC address table | 8000 entries |
Switching capacity | 16 Gbit/s |
Store-and-forward | Y |
Jumbo frames support | Y |
Jumbo frames | 9216 |
Packet forwarding rate (1 Gbps) | 1488000 pps |
Packet forwarding rate (100 Mbps) | 148800 pps |
Packet forwarding rate (10 Mbps) | 14880 pps |
Supported network protocols | CSMA/CD |
Rack mounting | N |
Product colour | White |
LED indicators | Y |
Certification | FCC
cUL/UL
ICES-003
CCC
CE
Anatel
C-Tick
LVD
VCCI |
Buffer size | 128 KB |
Mean time between failures (MTBF) | 412433 h |
Shipping (inner) case height | 19.3 cm |
Shipping (inner) case width | 23 cm |
Shipping (inner) case length | 49.8 cm |
Shipping (inner) case net weight | 1.95 kg |
Products per shipping (inner) case | 10 pc(s) |
Pallet gross weight (air) | 348.5 kg |
Master (outer) cases per pallet (air) | 100 pc(s) |
Products per pallet (air) | 1000 pc(s) |
Pallet gross length | 110 cm |
Pallet gross width | 120 cm |
Pallet height (air) | 2.06 m |
Pallet gross weight (sea) | 348.5 kg |
Master (outer) cases per pallet (sea) | 100 pc(s) |
Products per pallet (sea) | 1000 pc(s) |
Pallet height (sea) | 2.06 m |
Shipping (inner) case gross weight | 3.3 kg |
Output voltage | 5 V |
Output current | 1 A |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Width | 128 mm |
Depth | 68.5 mm |
Height | 25.4 mm |
Weight | 195 g |
User guide | Y |
AC adapter included | Y |
Package width | 104 mm |
Package depth | 158 mm |
Package height | 94 mm |
Package weight | 281 g |
Harmonized System (HS) code | 85176990 |
Description |

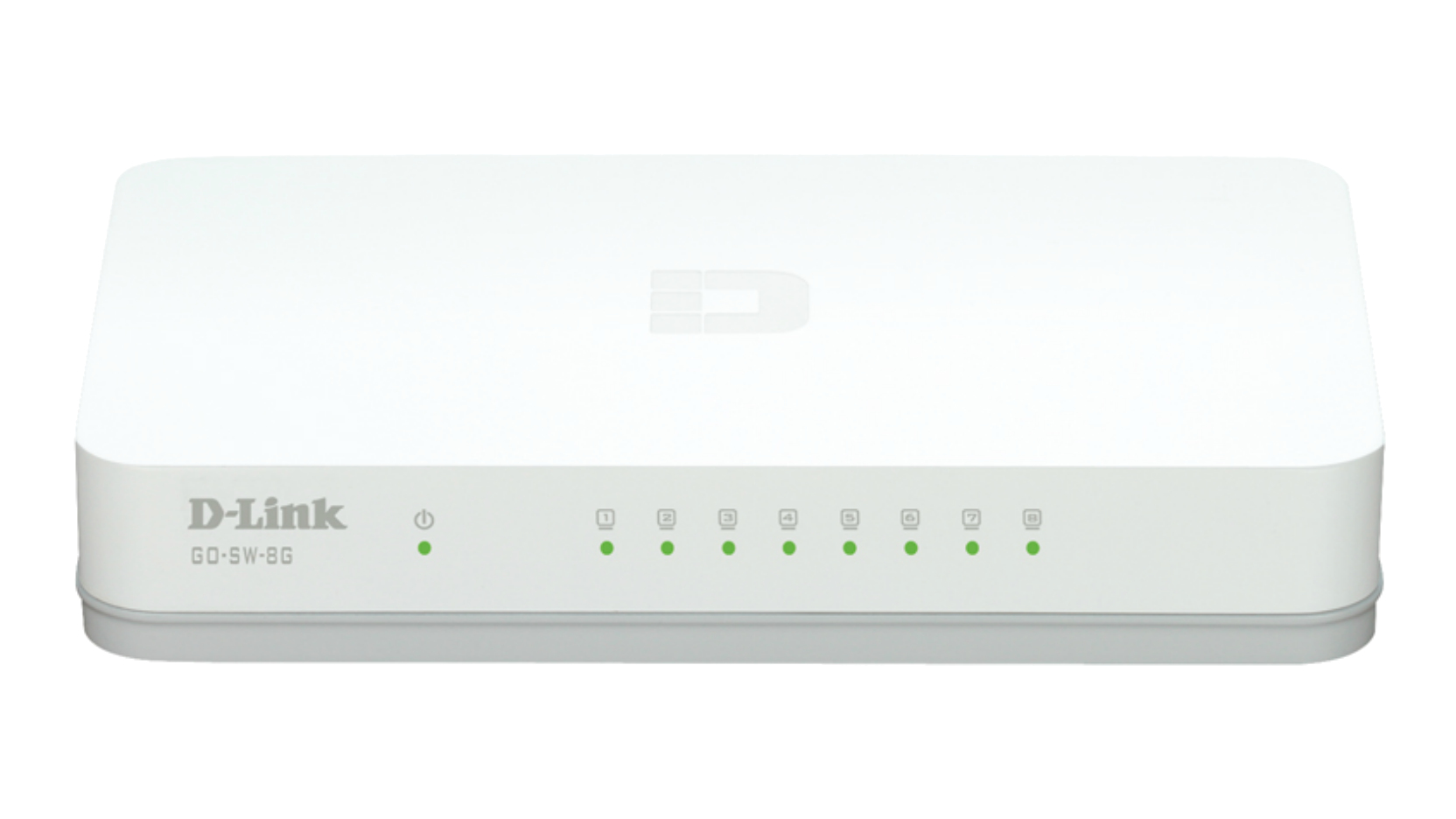

D-Link GO-SW-8G/E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack |
