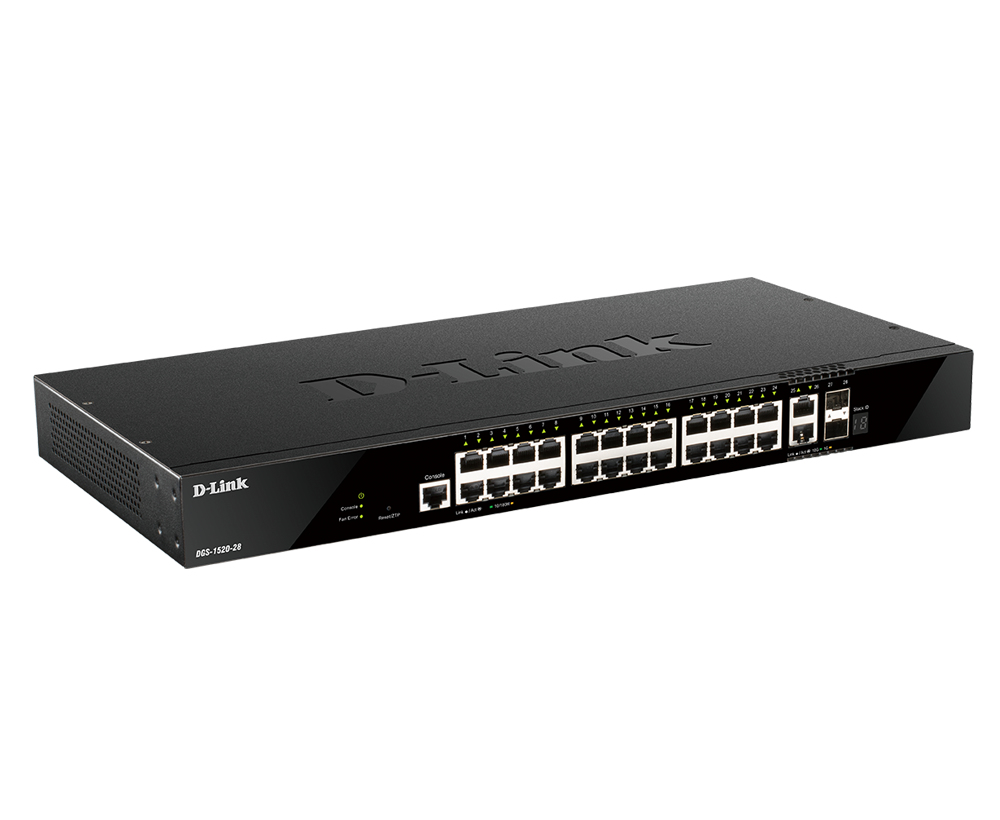

The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications. For unrestricted Wi-Fi 6 edge device capabilities, PoE models offer four 2.5 GB Base-T ports for Multi-Gigabit connectivity. For SMBs with expanding networks and significant bandwidth growth, the DGS-1520 effortlessly adds highly cost-effective 10 GB connectivity to ensure seamless aggregation between access and core layers.
- Stackable Smart Gigabit
Stack up to eight switches for high-density Gigabit aggregation
- Zero Touch Provisioning
Effortless multi-site deployment
- Multi-Gigabit Ports
Four 2.5 GB Base-T ports for Wi-Fi 6 APs (PoE models)
- Flexible Stacking or Uplink
10 GB Base-T and/or SFP+ (fiber) ports for stacking or uplink
- High Capacity
Up to 188 Gbps switching capacity per switch
- PoE Capable
Up to 370 W PoE output per switch
- Power Redundancy
Connect with DPS-520 for power redundancy (non-PoE models)
- Advanced Manageability
Supports dynamic routing and selective Q-in-Q tagging
High Availability
The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity.
Zero Touch Provisioning
Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralized location, then install the DGS-1520 switches for effortless deployments.
Multi-Gigabit Support
Multi-Gigabit ports on the DGS-1520 Series switch (PoE models only) support 100 MB / 1 GB / 2.5 GB speeds to maximize various device capabilities, such as Wi-Fi 6 (802.11ax) access points, which can often exceed single Gigabit speeds.
Powerful Stacking Capability
Stack up to eight DGS-1520 switches with a total of 80 GB stacking bandwidth using hybrid mode (copper and/or fiber), increasing flexibility, scalability, and cost effectiveness for SMBs.
Minimize Outages with Power Redundancy
For a more resilient network infrastructure, connect up to four DGS-1520 switches (non-PoE models only) with the DPS-520 PoE redundant power supply system through the management port and actively back-up four devices to significantly reduce power redundancy costs.
Auto Discovery: Automatically detect power requirements of connected PD devices.
RPS Port Priority: Enables administrators to define RPS failover policy.
Status Reporting: Administrators can connect via web browser to remotely monitor DPS-520 status.
Low Network Latency, High PoE Budget
High Gigabit-port density with up to 188 GB total switching capacity, and up to 30 W per port with 370 W total PoE budget to power your PoE-enabled devices.
Enhanced Manageability for Peace of Mind
D-View 7
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
D-Link Network Assistant
Built upon a highly-intuitive user interface, the D-Link Network Assistant (DNA) simplifies device configuration using the D-Link Discovery Protocol, auto-detecting supported devices and displaying them for port-level configurations.
| | Switch type | Managed | | Switch layer | L3 | | Web-based management | Jā | | Basic switching RJ-45 Ethernet ports quantity | 26 | | Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) | | Gigabit Ethernet (copper) ports quantity | 24 | | 10G Ethernet (copper) ports quantity | 2 | | SFP+ module slots quantity | 2 | | Fiber ports quantity | 2 | | Fiber optic connector | SFP+ | | Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z | | 10G support | Jā | | Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T | | Flow control support | Jā | | Link aggregation | Jā | | Auto MDI/MDI-X | Jā | | Spanning tree protocol | Jā | | Head-of-line (HOL) blocking | Jā | | MAC address table | 16384 entries | | Switching capacity | 128 Gbit/s | | Forwarding rate | 95.24 Mpps | | Store-and-forward | Jā | | Static route | Jā | | Jumbo frames support | Jā | | Jumbo frames | 12288 | | DHCP features | DHCP snooping | | IGMP snooping | Jā | | Loop protection | Jā | | BPDU filtering/protection | Jā | | MAC address entries | Static MAC address entries | | Multicast Listener Discovery (MLD) snooping | v1/v2 | | GARP VLAN Registration Protocol (GVRP) | Jā | | Routing protocols | OSPF, RIP, RIPng, VRRP | | Rack mounting | Jā | | Stackable | Jā | | Form factor | 1U | | Product colour | Black | | LED indicators | Activity, Link, Power, Speed | | Certification | CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A | | Physical stacking (units) | 8 | | Virtual stacking (units) | 32 | | Noise level | 51.8 dB | | Mean time between failures (MTBF) | 468252 h | | Redundant power supply (RPS) support | Jā | | Power consumption (max) | 30.4 W | | Power over Ethernet (PoE) | Nē | | Operating temperature (T-T) | -5 - 50 °C | | Storage temperature (T-T) | -40 - 70 °C | | Operating relative humidity (H-H) | 10 - 95% | | Storage relative humidity (H-H) | 5 - 95% | | Heat dissipation | 103.7 BTU/h | | Width | 207.4 mm | | Depth | 441 mm | | Height | 44 mm | | Weight | 2.33 kg | | Harmonized System (HS) code | 85176990 |
|
|
