Manufacturer: DELOCK

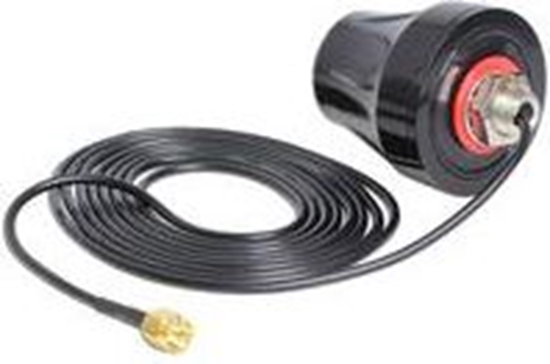

Delock LTE Antenna SMA Omnidirectional Black Outdoor

€49.11 incl tax

SKU: ST02823024

Manufacturer part number: 88749

Manufacturer Homepage

Warranty: 24 months

Stock *

Qty:

Products specifications

Color	Black
Properties	Bluetooth

Status	7 dienas
Description
Description	Description: This LTE antenna can be installed indoors or outdoors and is suitable for all four bands of LTE. The antenna is fully compatible with GSM / UMTS / WLAN 2.4 GHz, ZigBee and Bluetooth. Specification: • LTE Band: 1, 3, 7, 20 • GSM/ UMTS • WLAN 2.4 GHz • ZigBee • Bluetooth • Frequenzy range: 790 - 870 MHz, 1710 - 2690 Mhz • Gain: 2 dBi • Polarisation: linear vertical • Impedanz: 50 Ohm • VSWR: 2.0 max. @ 750~960 MHz/ 1710~2170 MHz 3.0 max. @ 2400~2700 MHz • Dimension: height: 48 mm diameter: 50 mm • Screw mounting 12 mm central hole • Cable length: 3 m • Cable type: RG-174 • Connector: SMA plug • Operating temperature: -10 Â°C ~ 55 Â°C • ABS UV resistant • IP 67 System requirements: Package content: • LTE antenna • Nut, washer

Products specifications

Color	Black
Properties	Bluetooth

Status	7 dienas
Description
Description	Description: This LTE antenna can be installed indoors or outdoors and is suitable for all four bands of LTE. The antenna is fully compatible with GSM / UMTS / WLAN 2.4 GHz, ZigBee and Bluetooth. Specification: • LTE Band: 1, 3, 7, 20 • GSM/ UMTS • WLAN 2.4 GHz • ZigBee • Bluetooth • Frequenzy range: 790 - 870 MHz, 1710 - 2690 Mhz • Gain: 2 dBi • Polarisation: linear vertical • Impedanz: 50 Ohm • VSWR: 2.0 max. @ 750~960 MHz/ 1710~2170 MHz 3.0 max. @ 2400~2700 MHz • Dimension: height: 48 mm diameter: 50 mm • Screw mounting 12 mm central hole • Cable length: 3 m • Cable type: RG-174 • Connector: SMA plug • Operating temperature: -10 Â°C ~ 55 Â°C • ABS UV resistant • IP 67 System requirements: Package content: • LTE antenna • Nut, washer
