    Manufacturer: DELOCK

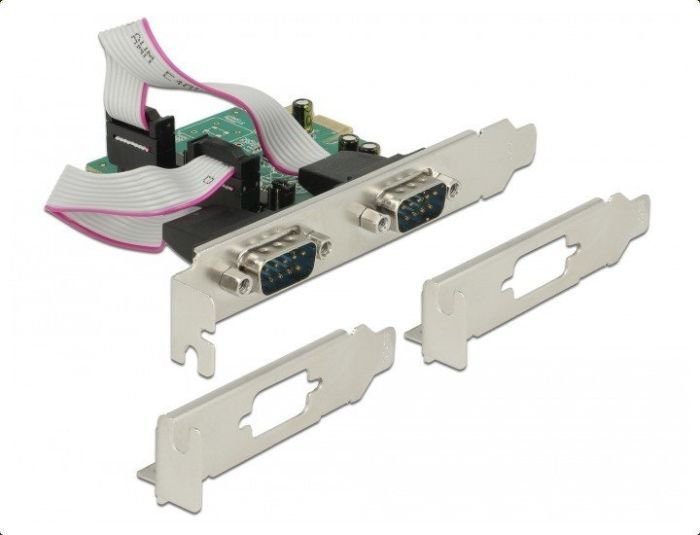

    Delock PCI Express Card > 2 x Serial RS-232 high speed 921K with voltage supply


    €48.25 incl tax

    SKU: ST02823305
    Manufacturer part number: 89641
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Status7 dienas
    Description
    The PCI Express card by Delock expands a PC by two external serial RS-232 ports. Devices such as scanners, protocol converters, POS systems, infrared -, IoT - devices etc. and different modes can be used. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
    System requirements:
    • Windows 7/7-64/8.1/8.1-64/10/10-64
    • PC with one free PCI Express slot
    Specification:
    • Connectors:
      external: 2 x serial RS-232 DB9 male
      internal: 1 x PCI Express x1, V2.0
    • Chipset: ASIX AX99100
    • Compatible with 16C950 UART
    • Selectable voltage supply: pin 1 / 9, maximum output power 23 W, 5 V (max. 1 A)
      and 12 V (max. 1.5 A)
    • Supports Active State Power Management (ASPM)
    • Supports Direct Memory Access (DMA)
    • Modes
      Supports slow IrDA mode up to 115 Kbps
      Supports Multi-Drop 9-bit mode
    • Data transfer rate up to 1 Mbps
    • Buffer: 256 byte on each port
    • Databits: 5, 6, 7, 8, 9
    • Stop bits: 1, 1.5, 2
    • Parity: even, odd, none, mark, space
    • Flow control: none, hardware RTS / CTS, software XON / XOFF
    • Operating temperature: 0 °C ~ 70 °C
    • Dimensions (LxWxH): ca. 72 x 63 x 10 mm
    Package content:
    • PCI Express card
    • 2 x low profile bracket
    • Driver CD
    • User manual
    Data sheet:
    http://www.delock.de/produkt/89641/pdf.html?sprache=en
