    PrevEaton 5SC 1000i Rack2U
    NextEaton 5SC 2200i RT2U
    Manufacturer: EATON

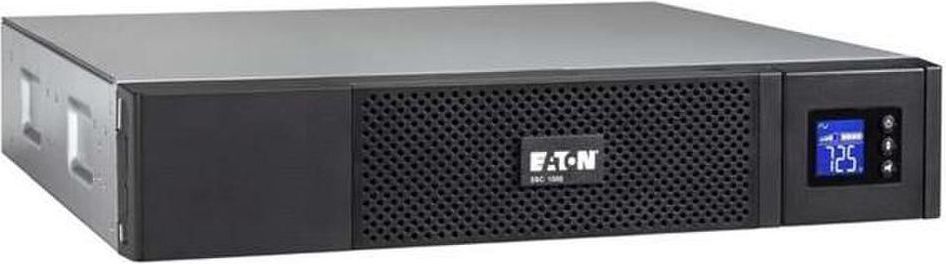

    Eaton 5SC 1500i Rack2U


    €989.30 incl tax

    SKU: ST02194419
    Manufacturer part number: 5SC1500IR
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    UPS voltage regulators 1500
    Output power 1050
    Socket (IEC320) yes
    Socket (RS232) yes
    Tips Line Interactive
    Socket (USB) yes
    Output power 1000
    Apparent power1500 VA
    Active power1050 (Watt)
    UPS Architectureline-interactive
    Number of phases input1 (230V)
    No. of batteries1
    Chassis typeRack
    Input power portsIEC-C14
    Output power ports8 x IEC-C13
    I/O connectors1 x RS-232 (COM)
    I/O connectors1 x USB 2.0
    ColorBlack
    Dimensions

    86.2 x 440 x 405
    Weight17.78 (kilogram)
    Video
    Video
    Width530
    Height585
    Depth235
    Weight22100
    UPS topologyLine-Interactive
    Output power capacity1.5 kVA
    Output power1050 W
    Input operation voltage (min)184 V
    Input operation voltage (max)276 V
    Input frequency45/65 Hz
    Output operation voltage (min)220 V
    Output operation voltage (max)240 V
    Output frequency regulation50/60 Hz
    Noise level45 dB
    Power protection featuresOverdischarge
    AC outlet typesC13 coupler
    Power plugC14 coupler
    AC outlets quantity8 AC outlet(s)
    USB portYes
    Serial interfaceYes
    Serial interface typeRS-232
    Serial ports quantity1
    Form factorRackmount
    Product colourBlack
    Rack capacity2U
    Display typeLED
    CertificationIEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV)
    Operating temperature (T-T)0 - 40 °C
    Width440 mm
    Depth405 mm
    Height86.2 mm
    Weight17.8 kg
    Harmonized System (HS) code85078000
    Description
    Eaton 5SC 1500I RACK2U. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1050 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 405 mm, Height: 86.2 mm
    Description
    1050 Watts | 1500 VA | Wave form type Pure sinewave | Topology LineInteractive | Input ports Single, IEC320 C14 (10AMP) | Output power connector type IEC 320 C13 | 1xRS232 | 1xUSB | Rack 2U | Colour Black
    DescriptionEATON 5SC 1500i Rack2U
    VatTypeVAT
    Weight22.100000000
    Height240.000000000
    Width540.000000000
    Length575.000000000
    Description
    EATON 5SC 1500i Rack2U 1500VA/1050W 9min runtime 1000W
    ShortDescEaton 5SC 1500i Rack2U
    UPS Power (VA)1500 VA
    UPS Power (W)1050 W
    Runtime (min)13/5
    Input Voltage (V)184V-276V
    Output Voltage (V)230V (+6/–10 %) (Adjustable to 220V/230V/240V)
    Input Frequency (Hz)45–55Hz (50Hz system), 55–65Hz (60Hz system)
    Output Frequency (Hz)50/60Hz +/–0.1 % (autosensing)
    Input ConnectionsIEC-320-C14
    Output Connections8x IEC-320-C13
    Waveform TypeLine-interactive high frequency with booster + fader, pure sinewave output
    Recharge time (hours)-
    Battery TypeABM, Automatic battery test, deep discharge protection
    TopologyOnline
    USBYes
    SmartSlot-
    RJ-45-
    Other Connections
  • USB port
  • RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
  • Mini terminal block for remote ON/OFF and Remote Power Off
  • Network management card or Relay card slot
    		•
    Control Panel-
    Alarm-
    ColorBlack
    Form FactorRack
    Package Contents-
    Width440 mm
    Depth405 mm
    Height86.2 mm
    Net Weight17.780 kg
    Gross Weight22.400 kg
    Gross depth (mm)580.00
    Gross height (mm)246.00
    Gross weight22.10
    Gross width (mm)540.00
    Net weight17.80
    Packing quantity1.00
    Paper/Pasteboard3850.00
    Plastic (No PET)450.00
    Tare weight (kg)4.30
    Volume (m3)0.08
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    TI weight (kg)2.30
    Palette Qty18
    Producer product name5SC 1500i Rack2U
    UPS topologyLine-Interactive
    Capacity1050
    Capacity1500
    Form factor2U
    Producer product familyUPS
    Colour of productBlack
    Warranty24
    Electrical output connectionsIEC
    ProducerEaton
