    Manufacturer: LEVELONE

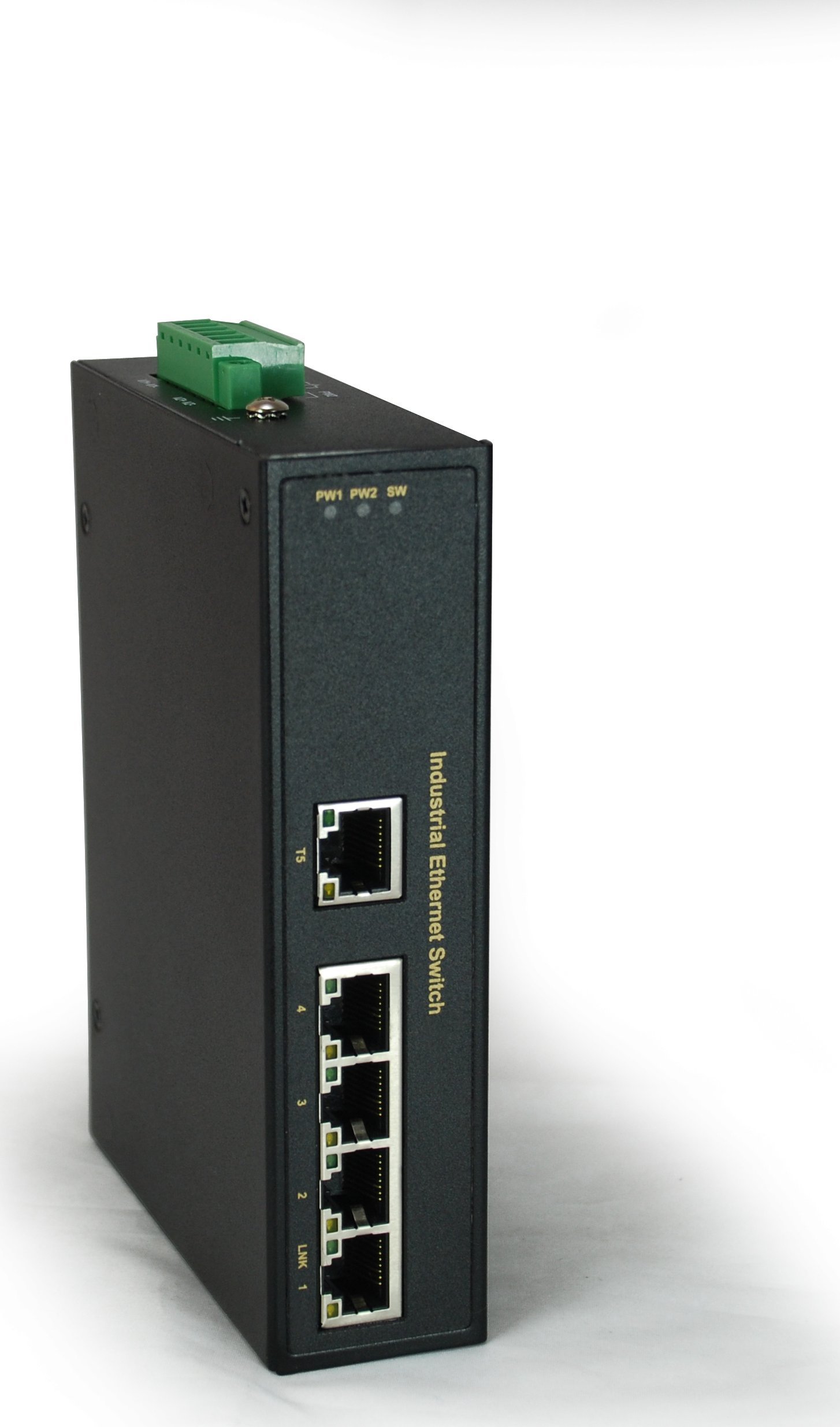

    LevelOne IFS-0501 Industrial 5-Port Fast Ethernet PoE Switch


    €75.06 incl tax

    SKU: ST04511294
    Manufacturer part number: IFS-0501
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties RJ-45
    RJ-45 port 5
    Status10 dienas
    Description
    The LevelOne IFS-0501 Industrial Fast Ethernet Switch provides 5 ports at 10/100M TX to enable high speed network in mission-critical environments. With an industrial standard DIN-rail mount, this switch can be installed in a cabinet, and clearly visible status LEDs provide simple monitoring of port link activity. The switch is housed in a solid metal case rated at IP30, keeping it safe from dust, vibration, heat and humidity, while an operational temperature range of -40°C to +75°C makes it suitable for deployment in almost any environment.

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 5
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Full duplex Y
    Flow control support Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address table 1024 entries
    Switching capacity 1 Gbit/s
    Store-and-forward Y
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Packet buffer memory 1 MB
    Rack mounting N
    Product colour Black
    Housing material Metal
    LED indicators Link, Power
    International Protection (IP) code IP30
    Wall mountable Y
    Country of origin Taiwan
    Safety EN60950-1
    Certification FCC, CE, RoHS, VCCI EN55022/24 EN55011 EN50121-3-2 EN50121-4 (pending) EN50155 (pending) EN60068-2-6 EN60068-2-27 EN60068-2-32
    Internal memory 1 MB
    Maximum data transfer rate 100 Mbit/s
    Output voltage 24 V
    Output current 1 A
    Power consumption (typical) 3.76 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) -40 - 75 °C
    Storage temperature (T-T) -40 - 85 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Width 36 mm
    Depth 105 mm
    Height 142 mm
    Weight 470 g
    Quick start guide Y
    Wall mounting kit Y
    Terminal block included Y
    Package type Box
    Package width 65 mm
    Package depth 165 mm
    Package height 215 mm
    Package weight 180 g
    Harmonized System (HS) code 85176990

    Products specifications
    Properties RJ-45
    RJ-45 port 5
    Status10 dienas
    Description
    The LevelOne IFS-0501 Industrial Fast Ethernet Switch provides 5 ports at 10/100M TX to enable high speed network in mission-critical environments. With an industrial standard DIN-rail mount, this switch can be installed in a cabinet, and clearly visible status LEDs provide simple monitoring of port link activity. The switch is housed in a solid metal case rated at IP30, keeping it safe from dust, vibration, heat and humidity, while an operational temperature range of -40°C to +75°C makes it suitable for deployment in almost any environment.

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 5
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Full duplex Y
    Flow control support Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address table 1024 entries
    Switching capacity 1 Gbit/s
    Store-and-forward Y
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Packet buffer memory 1 MB
    Rack mounting N
    Product colour Black
    Housing material Metal
    LED indicators Link, Power
    International Protection (IP) code IP30
    Wall mountable Y
    Country of origin Taiwan
    Safety EN60950-1
    Certification FCC, CE, RoHS, VCCI EN55022/24 EN55011 EN50121-3-2 EN50121-4 (pending) EN50155 (pending) EN60068-2-6 EN60068-2-27 EN60068-2-32
    Internal memory 1 MB
    Maximum data transfer rate 100 Mbit/s
    Output voltage 24 V
    Output current 1 A
    Power consumption (typical) 3.76 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) -40 - 75 °C
    Storage temperature (T-T) -40 - 85 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Width 36 mm
    Depth 105 mm
    Height 142 mm
    Weight 470 g
    Quick start guide Y
    Wall mounting kit Y
    Terminal block included Y
    Package type Box
    Package width 65 mm
    Package depth 165 mm
    Package height 215 mm
    Package weight 180 g
    Harmonized System (HS) code 85176990
