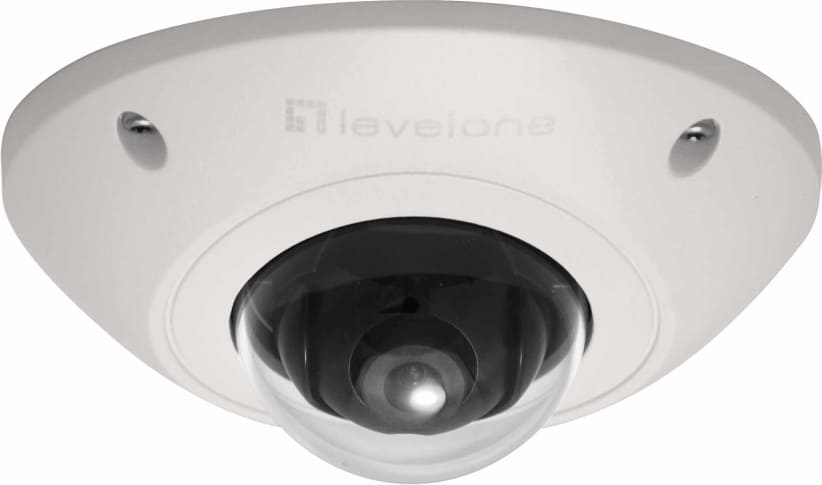

The LevelOne FCS-3073 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3073 offers 2-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
| | Type | IP security camera | | Placement supported | Indoor & outdoor | | Connectivity technology | Wired | | PTZ control | Y | | Wide Dynamic Range (WDR) | Y | | Day/night mode | Y | | Certification | CE, FCC, ONVIF | | Mounting type | Ceiling | | Product colour | White | | Form factor | Dome | | Protection features | Vandal proof | | International Protection (IP) code | IP66 | | IK code | IK10 | | Weatherproof | Y | | Country of origin | China | | Minimum illumination | 0.001 lx | | Field of view (FOV) angle | 78° | | Camera shutter speed | 1 - 1/10000 s | | Sensor type | CMOS | | Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") | | Progressive scan | Y | | Number of lenses | 1 | | Focus adjustment | 2.0 | | Fixed focal length | 6 mm | | Night vision | N | | Maximum resolution | 1920 x 1080 pixels | | Total megapixels | 2 MP | | Video formats supported | AVI | | Video compression formats | H.264, M-JPEG | | Supported graphics resolutions | 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080) | | Supported video modes | 1080p | | Frame rate | 30 fps | | Video streaming | Y | | Noise reduction | Y | | Full HD | Y | | Image quality adjustment | Brightness, Contrast, Saturation, Sharpness | | Flip & mirror | Y | | Portrait mode | Y | | Privacy masking | Y | | Time stamp overlay | Y | | Text caption overlay | Y | | Back Light Compensation (BLC) | Y | | Ethernet LAN | Y | | Wi-Fi | N | | Bluetooth | N | | Ethernet interface type | Fast Ethernet | | Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u | | Supported network protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS | | Cabling technology | 10/100Base-T(X) | | Number of users | 20 user(s) | | Quality of Service (QoS) support | Y | | Built-in HDD | N | | Card reader integrated | Y | | Compatible memory cards | MicroSD (TransFlash), MicroSDHC, SD | | Maximum memory card size | 16 GB | | Ethernet LAN (RJ-45) ports | 1 | | Video motion detection | Y | | Active tampering alarm | Y | | IP address filtering | Y | | HTTPS encryption | Y | | Motion sensor | Y | | Reset button | Y | | Power source type | PoE | | Power consumption (typical) | 3.5 W | | Power over Ethernet (PoE) | Y | | Operating temperature (T-T) | -30 - 60 °C | | Operating relative humidity (H-H) | 10 - 90% | | Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 | | Width | 111 mm | | Depth | 111 mm | | Height | 82 mm | | Weight | 500 g | | Package width | 134 mm | | Package depth | 134 mm | | Package height | 108 mm | | Package weight | 500 g | | Package type | Box | | Number of cameras | 1 | | Screws included | Y | | Resource CD | Y | | Sustainability certificates | RoHS | | Harmonized System (HS) code | 85258900 | | Master (outer) case width | 345 mm | | Master (outer) case length | 288 mm | | Master (outer) case height | 568 mm | | Products per master (outer) case | 24 pc(s) |
|
|
