| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | SXGA |
| Panel type | TN |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.78 million colours |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Response time | 5 ms |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Supported video modes | 1024p |
| Aspect ratio | 5:4 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.4 - 80 kHz |
| Viewable size, horizontal | 27.1 cm |
| Viewable size, vertical | 33.8 cm |
| Viewable size diagonal | 43 cm |
| Display brightness | 350 cd/m² |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Built-in camera | No |
| Built-in microphone | No |
| Product colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 6 mm |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH |
| HDMI | Yes |
| USB required | Yes |
| USB Touch port | Yes |
| USB Touch ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| VESA mounting | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | DC |
| Energy efficiency scale | A to G |
| Cables included | AC, DisplayPort, HDMI, USB |
| Width (without stand) | 369 mm |
| Depth (without stand) | 47.5 mm |
| Height (without stand) | 307 mm |
| Weight (without stand) | 3.6 kg |
| Package width | 455 mm |
| Package depth | 145 mm |
| Package height | 387 mm |
| Package weight | 4.9 kg |
| Harmonized System (HS) code | 85285210 |
| Display viewable area (HxV) | 338 x 270 mm |
| Connection to PC | Yes |
| Placement supported | Horizontal/Vertical |
| Description |

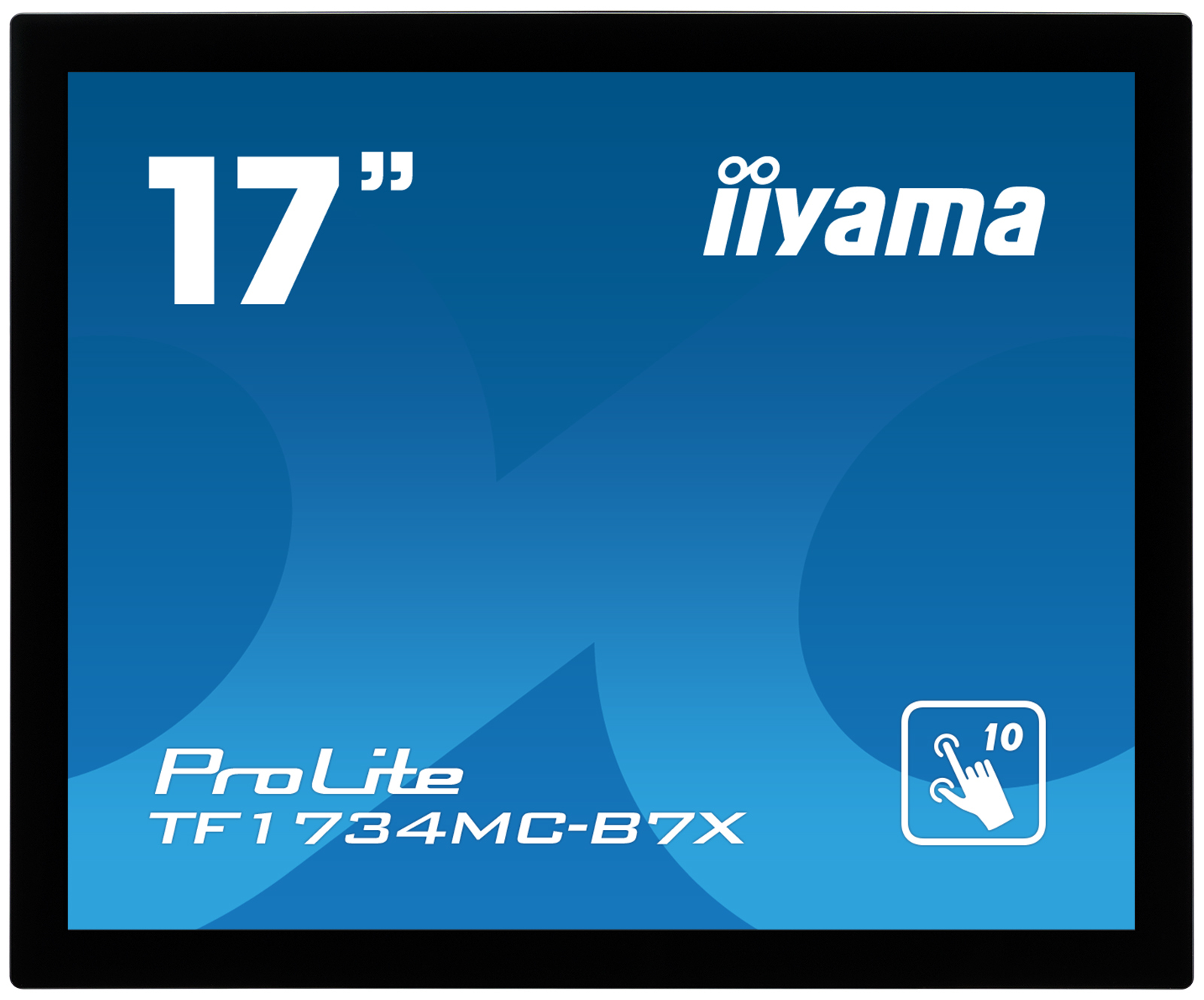

| iiyama ProLite TF1734MC-B7X. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LED, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 170°. VESA mounting. Product colour: Black |
