| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Built-in light | Yes |
| Infrared (IR) cut-off filter | Yes |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black, White |
| Form factor | Bullet |
| LED indicators | Yes |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 50° |
| Lens viewing angle, vertical | 27° |
| Lens viewing angle, diagonal | 59° |
| Tilt angle range | -90 - 90° |
| Pan range | -90 - 90° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Number of lenses | 1 |
| Detect distance | 128 m |
| Observe distance | 53 m |
| Recognize distance | 16 m |
| Maximum aperture number | 1.6 |
| Identify distance | 13 m |
| Fixed focal length | 6 mm |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| 3D positioning | Yes |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio input channels | 1 channels |
| Audio output channels | 1 channels |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Built-in microphone | Yes |
| Bit rate range | 0 - 64 Kbit/s |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Web browser | Yes |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Power source type | DC, PoE |
| Power consumption (typical) | 3.4 W |
| Power consumption (max) | 7 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 174 mm |
| Height | 70 mm |
| Length | 78 mm |
| Weight | 280 g |
| Package weight | 420 g |
| Package type | Box |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Sustainability compliance | Yes |
| Sustainability certificates | BSMI, CE, KC |
| Description |

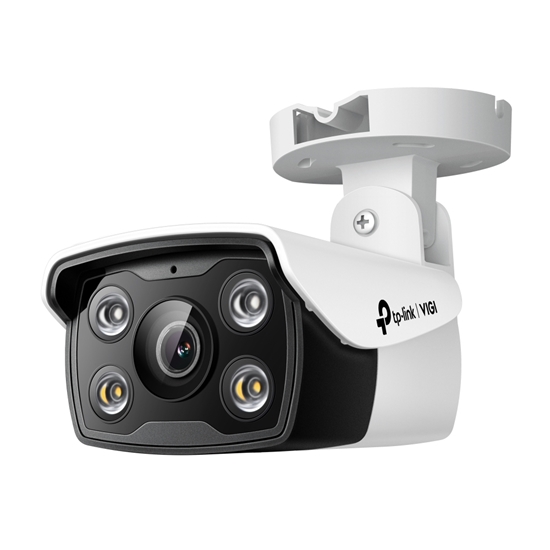

| TP-Link VIGI C340. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 50°, Lens viewing angle, vertical: 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 128 m, Observe distance: 53 m, Recognize distance: 16 m |
