Manufacturer: LENOVO

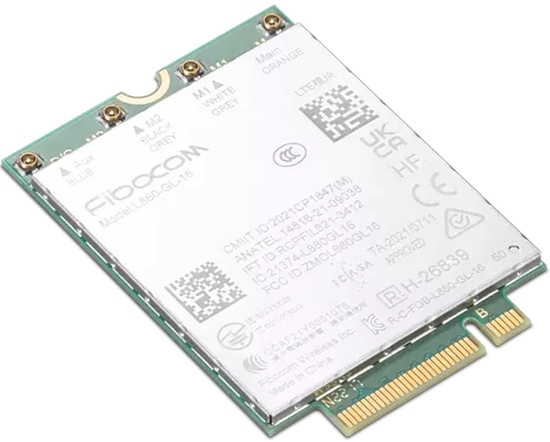

Lenovo 4XC1K20993 network card Internal WWAN 1000 Mbit/s

€142.68 incl tax

SKU: ST06402840

Manufacturer part number: 4XC1K20993

Manufacturer Homepage

Warranty: 12 months

Stock *

Qty:

Products specifications

3G/4G support	4G

Interface	M.2
Data transmission	HSPA+
Data transmission	HSPA +DC
Data transmission	LTE
Data transmission	UMTS
Data transmission	HSPA
GSM network	1900 MHz
GSM network	850 MHz
GSM network	1800 MHz
GSM network	900 MHz
UMTS network	1900 MHz
UMTS network	2100 MHz
UMTS network	2600 MHz
UMTS network	1800 MHz
UMTS network	900 MHz
UMTS network	1700 MHz
UMTS network	850 MHz
UMTS network	800 MHz
LTE network	700 MHz
LTE network	3400 MHz
LTE network	2100 MHz
LTE network	2300 MHz
LTE network	900 MHz
LTE network	1700 MHz
LTE network	1800 MHz
LTE network	1900 MHz
LTE network	800 MHz
LTE network	850 MHz
LTE network	2500 MHz
LTE network	2600 MHz
LTE network	3600 MHz
SIM card	Not applicable
Antenna	Not applicable
Aero2 support	No
Supported operating systems	Windows 11
Supported operating systems	Windows 10
Color	Aluminium
Color	Green
Dimensions	Wysokość 2,3 x Głębokość 42 x Długość 30 [mm]
Weight	6.2 (gram)
Designation	CE+WEEE
Width	135
Height	140
Depth	35
Weight	60
Description
Description	Modem GSM Fibocom L860-GL-16 CAT16 4G LTE WWAN 4XC1K20993

Connectivity technology	Wireless
Host interface	M.2
Interface	WWAN
Maximum data transfer rate	1000 Mbit/s
3G standards	WCDMA
4G standard	LTE-TDD & LTE-FDD
Mobile network generation	4G
Internal	Yes
Component for	PC/Laptop
Antenna design	Internal
Certification	CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
Compatible products	ThinkPad X1 Carbon Gen 10
Windows operating systems supported	Windows 10, Windows 11
Operating temperature (T-T)	-20 - 65 °C
Storage temperature (T-T)	-40 - 85 °C
Width	30 mm
Depth	42 mm
Height	2.3 mm
Weight	6.2 g
Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
MU-MIMO	Yes
Description
Description	Lenovo 4XC1K20993. Internal. Connectivity technology: Wireless, Host interface: M.2, Interface: WWAN. Maximum data transfer rate: 1000 Mbit/s

Gross depth (mm)	132.00
Gross height (mm)	135.00
Gross weight	0.124
Gross width (mm)	35.00
Net weight	0.01
Packing quantity	1.00
Paper/Pasteboard	0.11
Tare weight (kg)	0.11
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Warranty	1
Weight	6.2
Producer product name	ThinkPad Fibocom L860-GL-16 CAT16
Producer product family	4G LTE WWAN Module
Dimensions (WxDxH)	30 x 42 x 2.3
Interface	PCIe Gen2 M.2
Other features	Antenna Connector: WWAN Antenna x 4; Support 4x4 MIMO Protocol Stack: IPV4/IPV6 Firmware Update: PCIe
Compatible products	For ThinkPad X1 Carbn Gen10
Palette Qty	2771
Producer	Lenovo
Warranty	12
