Manufacturer: LENOVO

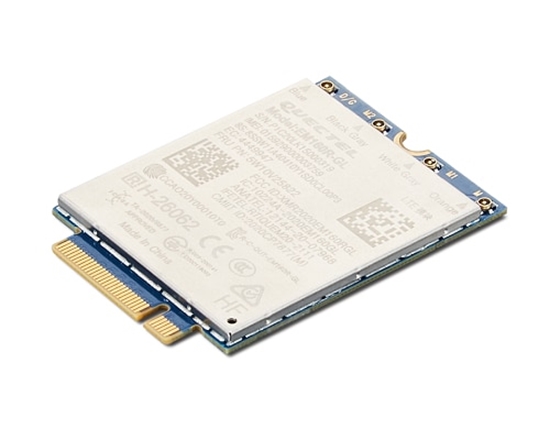

Lenovo 4XC1D69579 network card Internal WWAN 1000 Mbit/s

€183.34 incl tax

SKU: ST04789856

Manufacturer part number: 4XC1D69579

Manufacturer Homepage

Warranty: 12 months

Stock *

Qty:

Products specifications

3G/4G support	4G
Cable length (m.)	1.1 - 1.7 m

Description	LENOVO TS QUECTEL (CAT16) WWAN MODULE (W/MIMO)
CountryofOrigin	CHINA
TariffHeading	84733080
PictureLocation	https://www2.f9baltic.com/productimages/big/4XC1D69579.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/4XC1D69579.jpg
Weight	0.610000
Height	35.000000
Length	140.000000
Width	130.000000
BoxSize	0
PalletSize	0

Connectivity technology	Wireless
Host interface	M.2
Interface	WWAN
Maximum data transfer rate	1000 Mbit/s
Mobile network generation	4G
Internal	Yes
Component for	PC
Product colour	Multicolour
Certification	CE, FCC, ANATEL, TELEC&JATE, RCM SDoC, KC, NCC, IC, ICASA, IFETEL
Windows operating systems supported	Windows 10
Operating temperature (T-T)	-25 - 75 °C
Operating relative humidity (H-H)	0.1 - 0.9%
Width	42 mm
Depth	30 mm
Height	2.3 mm
Weight	6.8 g
Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
Harmonized System (HS) code	85176990
Description
Description	Lenovo 4XC1D69579. Internal. Connectivity technology: Wireless, Host interface: M.2, Interface: WWAN. Maximum data transfer rate: 1000 Mbit/s. Product colour: Multicolour

Gross depth (mm)	132
Gross height (mm)	135
Gross weight	0.06
Gross width (mm)	35
Net weight	0.014
Packing quantity	1.00
Paper/Pasteboard	41
Plastic (No PET)	5
Tare weight (kg)	0.046
Volume (m3)	0.0006237
Embeeded battery	No
WEEE tax	No
Warranty	1
Weight	6.8
Producer product name	Quectel EM160R-GL
Producer product family	Wireless cellular modem - 4G LTE Advanced - M.2 Card - 1 Gbps
Dimensions (WxDxH)	42 x 30 x 2.3
Interface	PCI Express M.2
Other features	PCI Express M.2 Interface; Main, Rx-diversity/GNSS, MIMO1 and MIMO2 antenna connectors; 4 × 4 MIMO in downlink direction; Data rate: up to 1000 Mbps (Downlink)/150 Mbps (Uplink)
Compatible products	For (WWAN-ready): ThinkPad P14s Gen 2 20VX, 20VY; P15 Gen 2 20YQ, 20YR; P15s Gen 2 20W6, 20W7; T14 Gen 2 20W0, 20W1; T15 Gen 2 20W4, 20W5
Palette Qty	2771
Producer	Lenovo
Warranty	12

Products specifications

3G/4G support	4G
Cable length (m.)	1.1 - 1.7 m

Description	LENOVO TS QUECTEL (CAT16) WWAN MODULE (W/MIMO)
CountryofOrigin	CHINA
TariffHeading	84733080
PictureLocation	https://www2.f9baltic.com/productimages/big/4XC1D69579.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/4XC1D69579.jpg
Weight	0.610000
Height	35.000000
Length	140.000000
Width	130.000000
BoxSize	0
PalletSize	0

Connectivity technology	Wireless
Host interface	M.2
Interface	WWAN
Maximum data transfer rate	1000 Mbit/s
Mobile network generation	4G
Internal	Yes
Component for	PC
Product colour	Multicolour
Certification	CE, FCC, ANATEL, TELEC&JATE, RCM SDoC, KC, NCC, IC, ICASA, IFETEL
Windows operating systems supported	Windows 10
Operating temperature (T-T)	-25 - 75 °C
Operating relative humidity (H-H)	0.1 - 0.9%
Width	42 mm
Depth	30 mm
Height	2.3 mm
Weight	6.8 g
Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
Harmonized System (HS) code	85176990
Description
Description	Lenovo 4XC1D69579. Internal. Connectivity technology: Wireless, Host interface: M.2, Interface: WWAN. Maximum data transfer rate: 1000 Mbit/s. Product colour: Multicolour

Gross depth (mm)	132
Gross height (mm)	135
Gross weight	0.06
Gross width (mm)	35
Net weight	0.014
Packing quantity	1.00
Paper/Pasteboard	41
Plastic (No PET)	5
Tare weight (kg)	0.046
Volume (m3)	0.0006237
Embeeded battery	No
WEEE tax	No
Warranty	1
Weight	6.8
Producer product name	Quectel EM160R-GL
Producer product family	Wireless cellular modem - 4G LTE Advanced - M.2 Card - 1 Gbps
Dimensions (WxDxH)	42 x 30 x 2.3
Interface	PCI Express M.2
Other features	PCI Express M.2 Interface; Main, Rx-diversity/GNSS, MIMO1 and MIMO2 antenna connectors; 4 × 4 MIMO in downlink direction; Data rate: up to 1000 Mbps (Downlink)/150 Mbps (Uplink)
Compatible products	For (WWAN-ready): ThinkPad P14s Gen 2 20VX, 20VY; P15 Gen 2 20YQ, 20YR; P15s Gen 2 20W6, 20W7; T14 Gen 2 20W0, 20W1; T15 Gen 2 20W4, 20W5
Palette Qty	2771
Producer	Lenovo
Warranty	12
