Manufacturer: LEVELONE

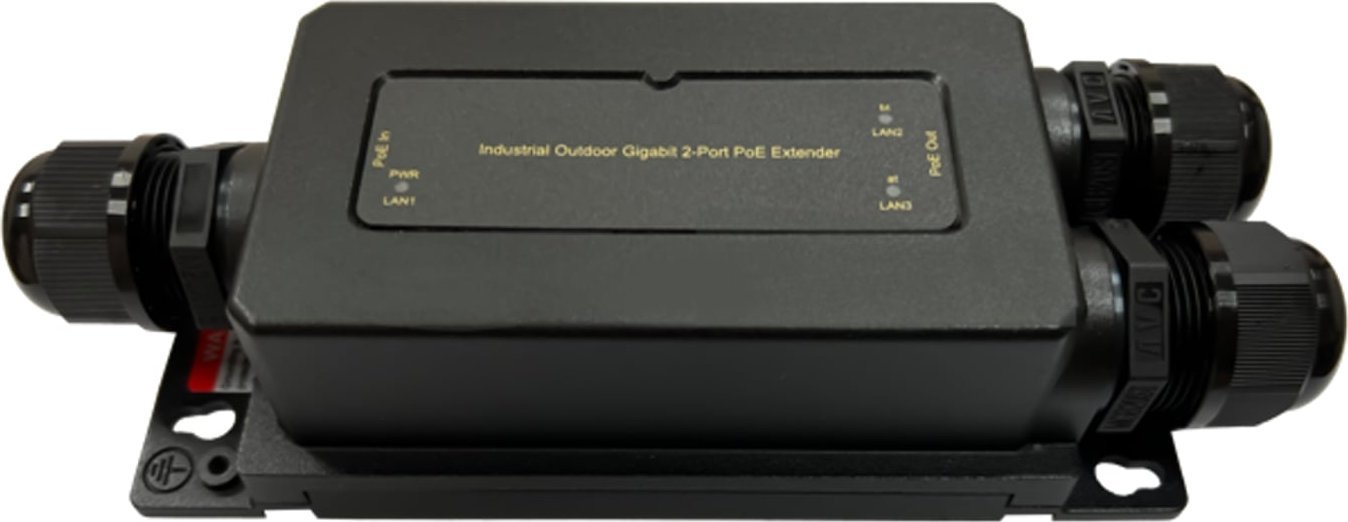

LevelOne POR-1322 Industrial IP67 PoE BT extender

€343.25 incl tax

SKU: ST07375523

Manufacturer part number: POR-1322

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	27	€343.25 incl tax
PL	8 - 15 days	27	€433.54 incl tax

Qty:

Specifications

Products specifications

1
Details 2

WRL stadarti	802.11b

Status

7 dienas

Description

The LevelOne POR-1322 is the perfect accessory to increase your Power over Ethernet network performance. Normal ethernet cable runs only reach 100 meters, but with POR-1322 installers can extend the PoE network performance up to 500 meters with 4 nodes . Simple yet durable, no software required. As a PoE Repeater, POR-1322 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that POR-1322 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices. The POR-1322 is the perfect solution for taking Ethernet to areas such as roof tops, factory floors, airports manufacturing plants, and large warehouses.

Type	Network repeater
Maximum transfer distance	100 m
International Protection (IP) code	IP67
Plug and Play	Y
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Power over Ethernet (PoE) ports quantity	3
Product colour	Black
Mounting type	Wall
LED indicators	Activity, Power
Country of origin	China
Power consumption (typical)	5 W
Output voltage	36 - 57 V
Power over Ethernet (PoE)	Y
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	0 - 90 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	125.8 mm
Depth	73.5 mm
Height	44.3 mm
Weight	380 g
Receiver width	21.1 cm
Receiver depth	16.2 cm
Receiver height	6.4 cm
Receiver weight	630 g
Master (outer) cases per pallet (air)	15 pc(s)
Pallet gross length	80 cm
Pallet gross width	120 cm
Pallet height (air)	160 cm
Master (outer) case width	370 mm
Master (outer) case length	360 mm
Master (outer) case height	260 mm
Master (outer) case gross weight	7 kg
Products per master (outer) case	12 pc(s)
