Manufacturer: LEVELONE

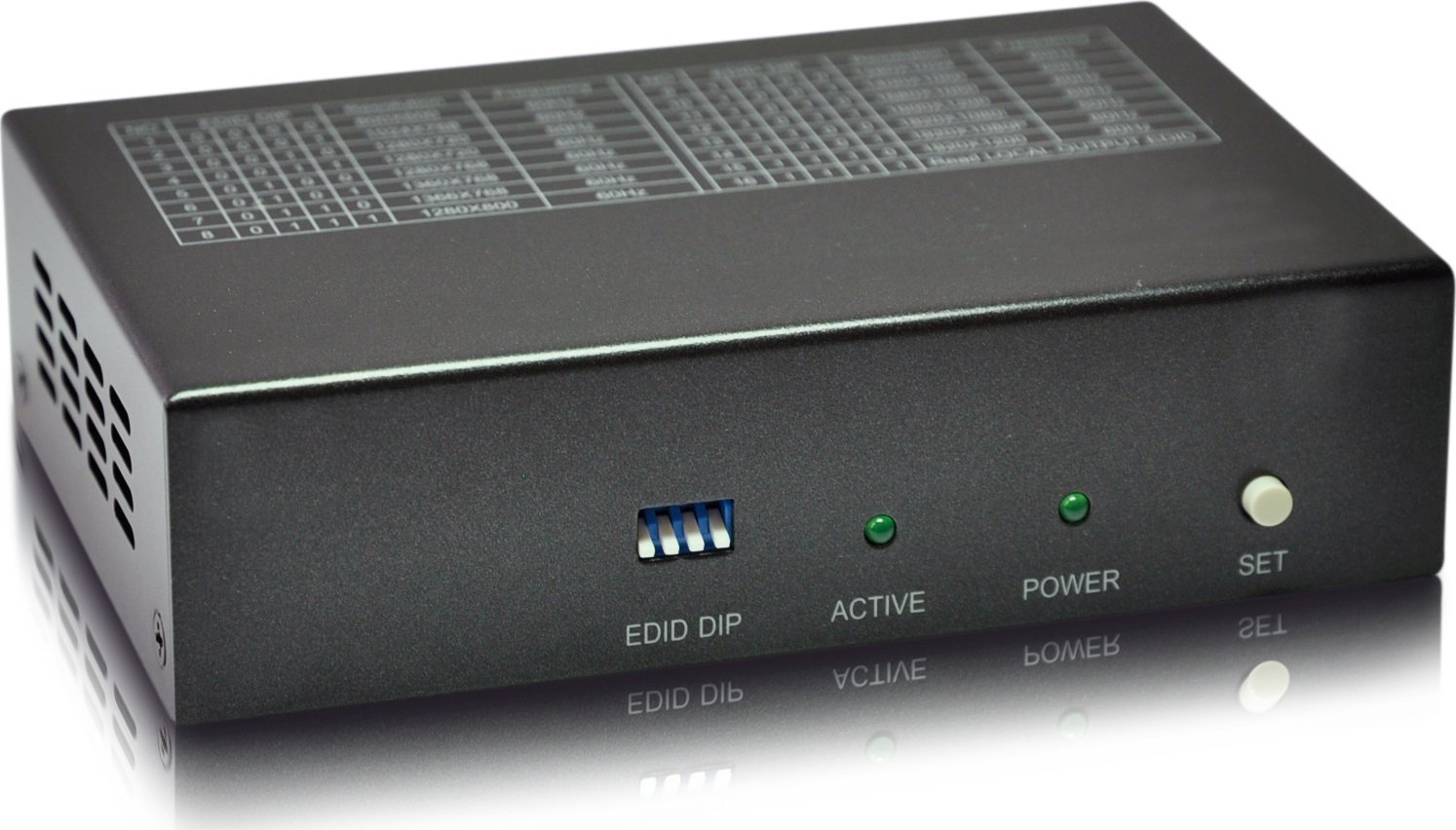

Level One LevelOne HDMI HVE-9111T over Cat.5 Transmitter 300m

€154.75 incl tax

SKU: ST07395042

Manufacturer part number: HVE-9111T

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	13	€154.75 incl tax
PL	8 - 15 days	13	€187.40 incl tax

Qty:

Specifications

Products specifications

1
Details 2

Properties	HDMI
Properties	RJ-45

Status

7 dienas

Description

The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, providing a crystal-clear, high-definition signal without the expense of using optical fiber. The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications. The LevelOne HVE-9111T is a HDMI Transmitter with 1 HDMI local output port and 1 link port for connecting to 1 receiver. - Transmission distance of up to 300m for 4k2k resolution - HDMI outputs with EDID management - Screw-in power socket for added safety

Type	AV transmitter
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5
Maximum transfer distance	300 m
Maximum refresh rate	60 Hz
LED indicators	Activity, Power
Supported video modes	1080p
Bandwidth	340 MHz
HDCP & EDID bypass	Y
Product colour	Black
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
AC input voltage	5 V
Input current	2 A
Power consumption (transmitter) (max)	700 mA
Operating temperature (T-T)	0 - 48 °C
Operating relative humidity (H-H)	10 - 90%
Width	85 mm
Depth	130 mm
Height	35 mm
Weight	365 g
Transmitter dimensions (WxDxH)	130 x 97 x 35 mm
Transmitter weight	358.9 g
Package dimensions (WxDxH)	170 x 295 x 120 mm
Package width	170 mm
Package depth	295 mm
Package height	120 mm
Package weight	620 g
AC adapter included	Y
Quick start guide	Y
Country of origin	Taiwan
Master (outer) case width	320 mm
Master (outer) case length	630 mm
Master (outer) case height	400 mm
Master (outer) case gross weight	1.4 kg
Products per master (outer) case	10 pc(s)
