Manufacturer: LEVELONE

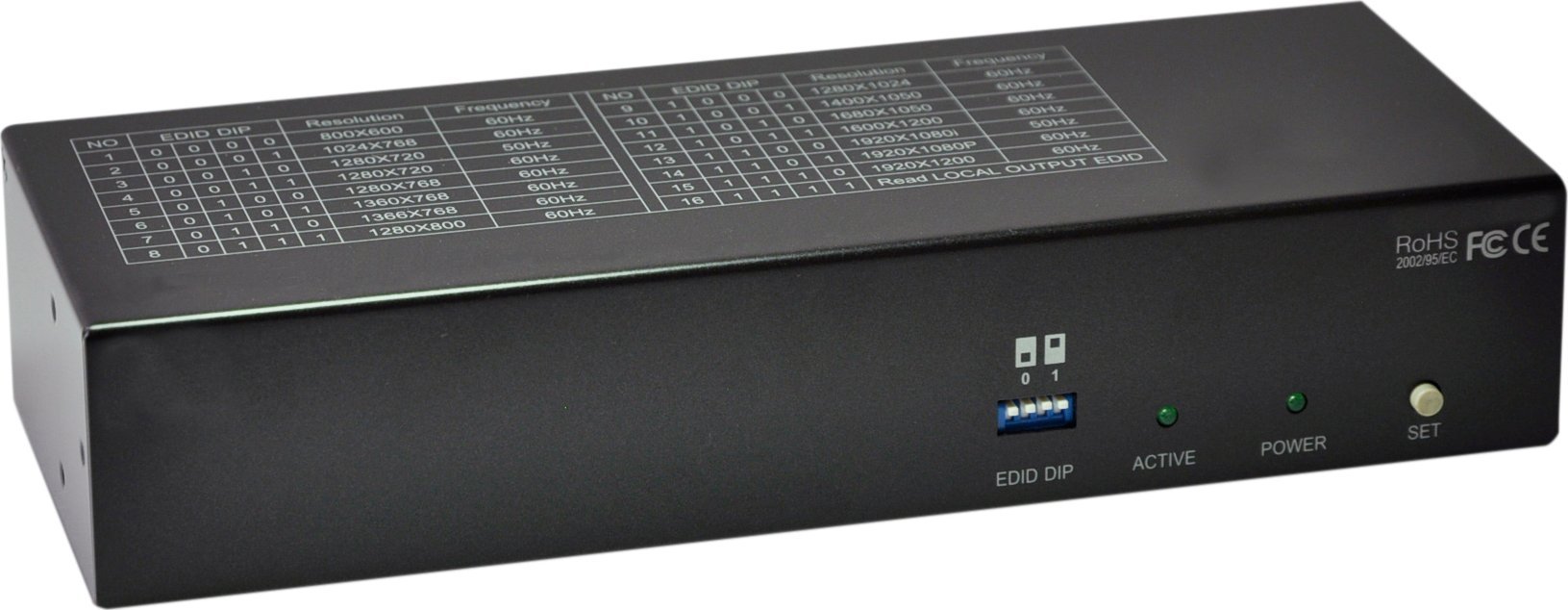

Level One LevelOne HDMI HVE-9118T over Cat.5 Transmitter 300m

€345.29 incl tax

SKU: ST07400141

Manufacturer part number: HVE-9118T

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	7	€345.29 incl tax
PL	8 - 15 days	7	€474.53 incl tax

Qty:

Specifications

Products specifications

1
Details 2

Properties	HDMI
Properties	RJ-45

Status

7 dienas

Description

The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, providing a crystal-clear, high-definition signal without the expense of using optical fiber. The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications. The LevelOne HVE-9118T is a HDMI Transmitter with 1 HDMI local output port and 8 link ports for connecting to 8 receivers. - Screw-in power socket for added safety - HDMI outputs with EDID management - Transmission distance of up to 300m for 4k2k resolution

Type	AV transmitter
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5
Maximum transfer distance	300 m
Maximum refresh rate	60 Hz
LED indicators	Activity, Power
Supported video modes	1080p
Bandwidth	340 MHz
HDCP & EDID bypass	Y
Product colour	Black
RJ-45 output ports	8
HDMI in	1
Number of HDMI outputs	1
AC input voltage	5 V
Input current	2 A
Power consumption (transmitter) (max)	900 mA
Operating temperature (T-T)	0 - 48 °C
Operating relative humidity (H-H)	10 - 80%
Width	90 mm
Depth	220 mm
Height	45 mm
Weight	612 g
Transmitter dimensions (WxDxH)	220 x 83 x 44 mm
Transmitter weight	650 g
Package dimensions (WxDxH)	173 x 305 x 122 mm
Package weight	1.18 kg
Package type	Box
AC adapter included	Y
Cables included	AC
Quick start guide	Y
Country of origin	Taiwan
Master (outer) case width	400 mm
Master (outer) case length	330 mm
Master (outer) case height	630 mm
Master (outer) case gross weight	13 kg
Products per master (outer) case	10 pc(s)

Products specifications

1
Details 2

Properties	HDMI
Properties	RJ-45

Status

7 dienas

Description

Type	AV transmitter
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5
Maximum transfer distance	300 m
Maximum refresh rate	60 Hz
LED indicators	Activity, Power
Supported video modes	1080p
Bandwidth	340 MHz
HDCP & EDID bypass	Y
Product colour	Black
RJ-45 output ports	8
HDMI in	1
Number of HDMI outputs	1
AC input voltage	5 V
Input current	2 A
Power consumption (transmitter) (max)	900 mA
Operating temperature (T-T)	0 - 48 °C
Operating relative humidity (H-H)	10 - 80%
Width	90 mm
Depth	220 mm
Height	45 mm
Weight	612 g
Transmitter dimensions (WxDxH)	220 x 83 x 44 mm
Transmitter weight	650 g
Package dimensions (WxDxH)	173 x 305 x 122 mm
Package weight	1.18 kg
Package type	Box
AC adapter included	Y
Cables included	AC
Quick start guide	Y
Country of origin	Taiwan
Master (outer) case width	400 mm
Master (outer) case length	330 mm
Master (outer) case height	630 mm
Master (outer) case gross weight	13 kg
Products per master (outer) case	10 pc(s)
