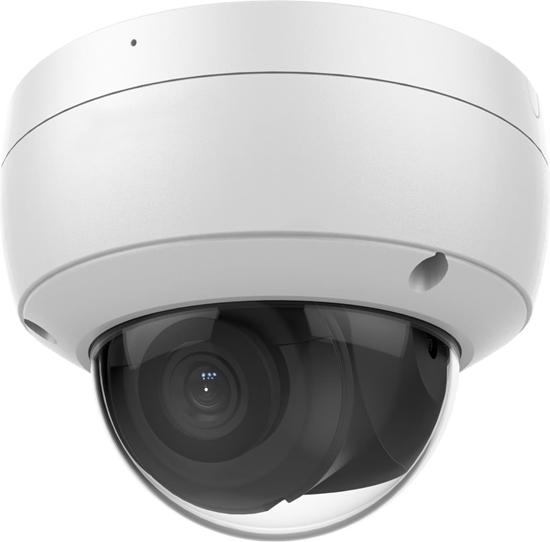

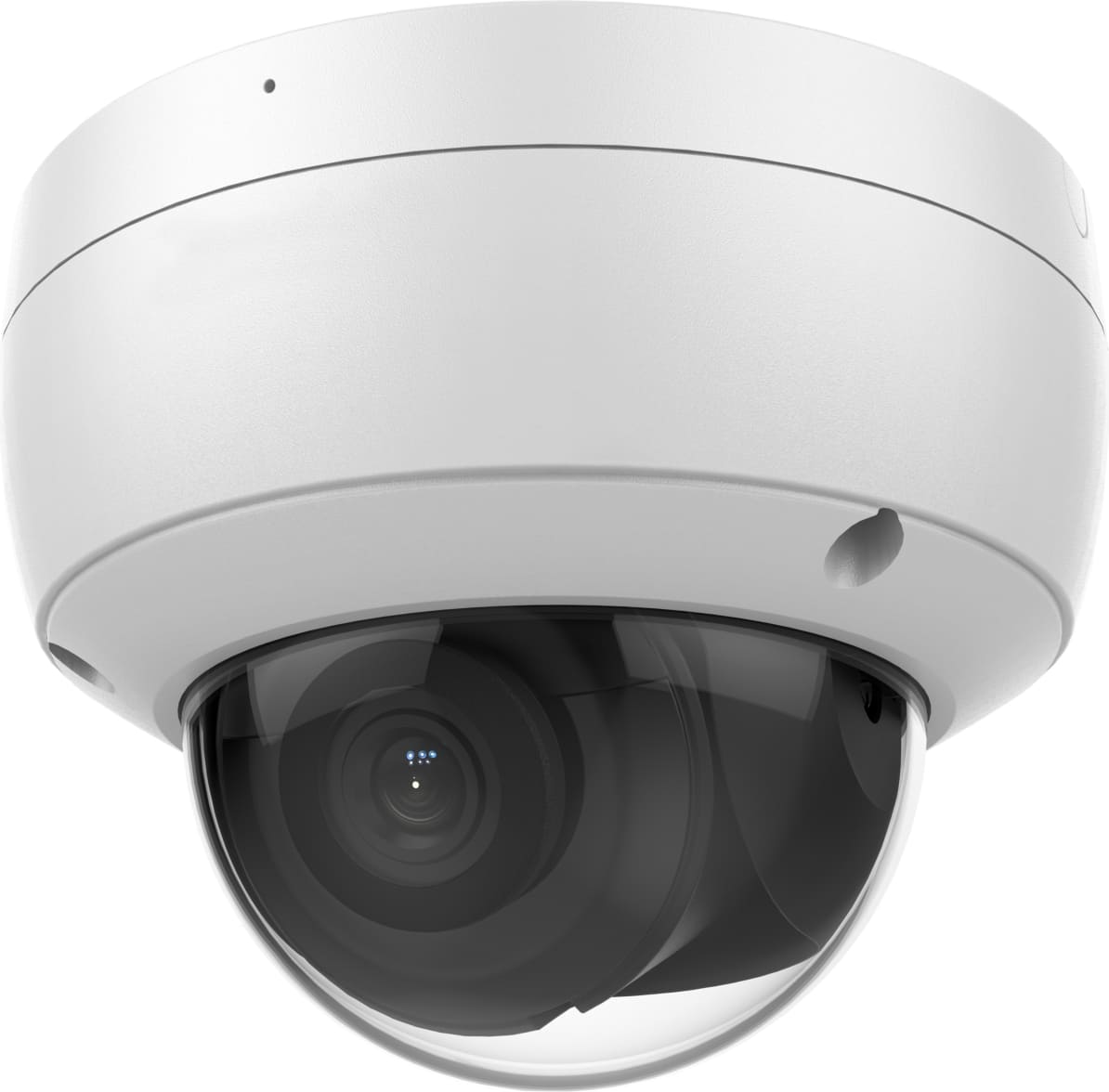

The LevelOne FCS-3096 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP67 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3096 offers 8-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
| | Type | IP security camera | | Placement supported | Indoor & outdoor | | Connectivity technology | Wired | | Infrared (IR) cut-off filter | Y | | Dynamic range | 120 dB | | Mounting type | Ceiling | | Product colour | White | | Form factor | Dome | | LED indicators | Power | | Protection features | Vandal proof | | International Protection (IP) code | IP67 | | IK code | IK10 | | Weatherproof | Y | | Country of origin | China | | Field of view (FOV) angle | 79° | | Camera shutter speed | 1/3 - 1/10000 s | | Sensor type | CMOS | | Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") | | Progressive scan | Y | | Number of lenses | 1 | | Zoom capability | Y | | Lens diameter | 4 mm | | Maximum aperture number | 2 | | Night vision | Y | | Night vision distance | 30 m | | LED type | IR | | Maximum resolution | 3840 x 2160 pixels | | Total megapixels | 8 MP | | Video compression formats | H.264, H.265, M-JPEG | | Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920, 3840 x 2160 | | Frame rate | 30 fps | | Noise reduction | Y | | Noise reduction technology | 3D noise reduction | | Image quality adjustment | Brightness, Contrast, Saturation, Sharpness | | Digital Wide Dynamic Range (DWDR) | Y | | Audio system | 2-way | | Voice codecs | G.711, G.722.1, G.726, MP2L2 | | Ethernet LAN | Y | | Wi-Fi | N | | Bluetooth | N | | Networking standards | IEEE 802.3af | | Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | | Quality of Service (QoS) support | Y | | Built-in HDD | N | | Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC | | Maximum memory card size | 128 GB | | Ethernet LAN (RJ-45) ports | 1 | | Terminal block port | Y | | Web-based management | Y | | Power source type | DC, PoE | | Power consumption (typical) | 6.2 W | | Power consumption (max) | 9 W | | Operating temperature (T-T) | -30 - 60 °C | | Storage temperature (T-T) | 0 - 95 °C | | Width | 111 mm | | Depth | 111 mm | | Height | 82 mm | | Weight | 500 g | | Package width | 134 mm | | Package depth | 134 mm | | Package height | 108 mm | | Package type | Box | | Number of cameras | 1 | | Screws included | Y | | Manual | Y | | Resource CD | Y | | Master (outer) cases per pallet (air) | 20 pc(s) | | Pallet gross length | 80 cm | | Pallet gross width | 120 cm | | Pallet height (air) | 162 cm | | Sustainability compliance | Y | | Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS, WEEE | | Harmonized System (HS) code | 8525890000 | | Master (outer) case width | 345 mm | | Master (outer) case length | 590 mm | | Master (outer) case height | 568 mm | | Master (outer) case gross weight | 17 kg | | Products per master (outer) case | 24 pc(s) |
|
|
