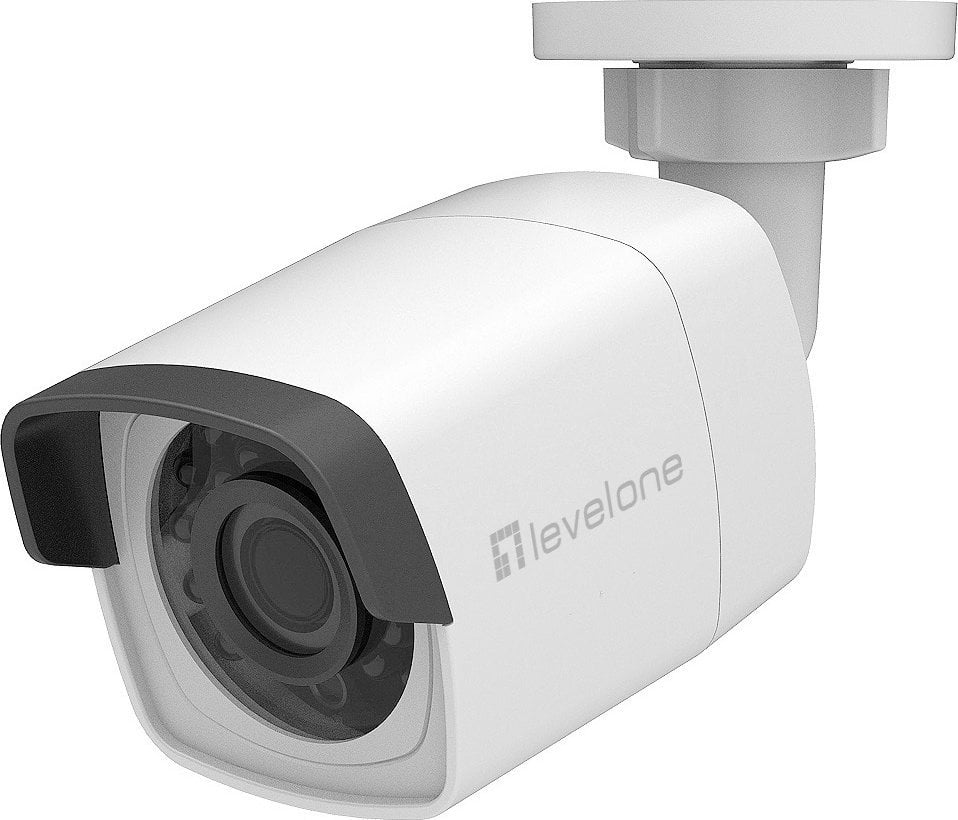

The LevelOne FCS-5202 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 4-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5202 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.
| | Type | IP security camera | | Placement supported | Indoor & outdoor | | Connectivity technology | Wired | | Wide Dynamic Range (WDR) | Jā | | Infrared (IR) cut-off filter | Jā | | Dynamic range | 120 dB | | Certification | CE/FCC | | Mounting type | Ceiling/wall | | Product colour | White | | Form factor | Dome | | LED indicators | Power | | International Protection (IP) code | IP67 | | Weatherproof | Jā | | Country of origin | China | | Lens viewing angle, horizontal | 83° | | Lens viewing angle, vertical | 45° | | Lens viewing angle, diagonal | 99° | | White balance | Auto | | Camera shutter speed | 1/3 - 1/100000 s | | Sensor type | CMOS | | Optical sensor size | 25.4 / 3 mm (1 / 3") | | Zoom capability | Jā | | Digital zoom | 8x | | Focus adjustment | 1.6 | | Fixed focal length | 4 mm | | Night vision | Jā | | Night vision distance | 30 m | | LED type | IR | | Maximum resolution | 2688 x 1520 pixels | | Total megapixels | 4 MP | | Video formats supported | H.264, H.265, M-JPEG | | Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520 | | Noise reduction | Jā | | Noise reduction technology | 3D noise reduction | | Gain control type | Auto | | Image quality adjustment | Brightness, Contrast, Saturation, Sharpness | | Flip & mirror | Jā | | Bit rate | 256 Kbps - 16 Mbps | | Back Light Compensation (BLC) | Jā | | Region of Interest (ROI) encoding | Jā | | Ethernet LAN | Jā | | Wi-Fi | Nē | | Bluetooth | Nē | | Networking standards | IEEE 802.3af | | Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Number of users | 20 user(s) | | User access level | Administrator, Operator, User | | Quality of Service (QoS) support | Jā | | Live view | Jā | | Number of simultaneous live view channels | 6 channels | | Built-in HDD | Nē | | Card reader integrated | Jā | | Compatible memory cards | SD, SDHC, SDXC | | Maximum memory card size | 128 GB | | Ethernet LAN (RJ-45) ports | 1 | | Password protection | Jā | | Video motion detection | Jā | | Active tampering alarm | Jā | | IP address filtering | Jā | | Intelligent Video Surveillance (IVS) system features | Crossing line, Intrusion | | Anti-flicker | Jā | | Heartbeat | Jā | | Mirror | Jā | | Digital watermark | Jā | | Digest authentication | Jā | | Reset button | Jā | | Power source type | DC, PoE | | Power consumption (max) | 6 W | | Power over Ethernet (PoE) | Jā | | Operating temperature (T-T) | -30 - 60 °C | | Operating relative humidity (H-H) | 0 - 95% | | Width | 154 mm | | Depth | 60.5 mm | | Height | 70 mm | | Weight | 500 g | | Package width | 101 mm | | Package depth | 111 mm | | Package height | 174 mm | | Package weight | 734 g | | Package type | Box | | Number of cameras | 1 | | Screws included | Jā | | Manual | Jā | | Resource CD | Jā | | Browser supported | Internet Explorer 8.0+ | | Harmonized System (HS) code | 85258900 | | Master (outer) case width | 535 mm | | Master (outer) case length | 352 mm | | Master (outer) case height | 385 mm | | Master (outer) case gross weight | 22 kg | | Products per master (outer) case | 30 pc(s) |
|
|
