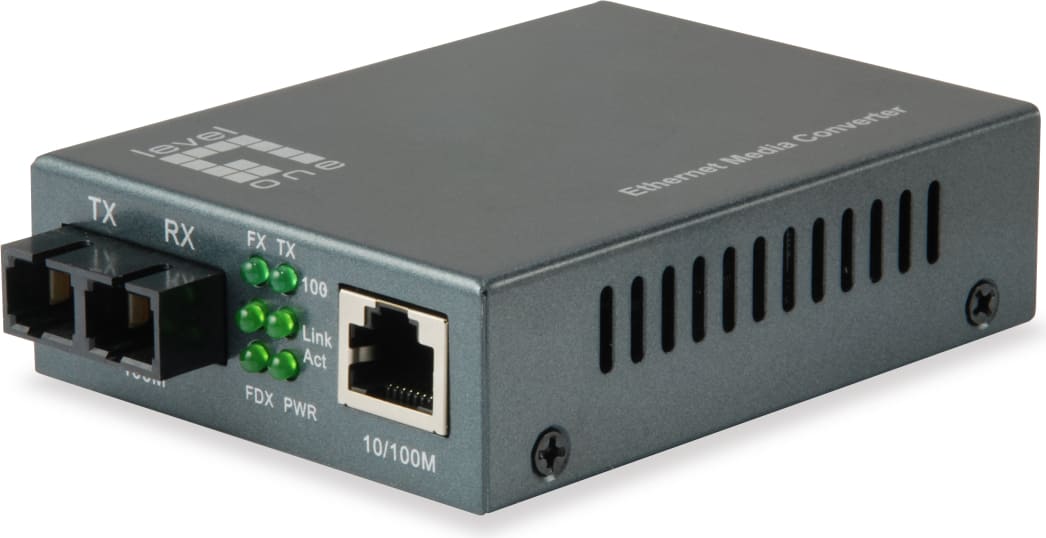

    • Level One LevelOne Konverter FVT-1102 10/100TX>100FX 2km
    Manufacturer: LEVELONE

    Level One LevelOne Konverter FVT-1102 10/100TX>100FX 2km


    €30.77 incl tax

    SKU: ST07663333
    Manufacturer part number: FVT-1102
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Status7 dienas
    Description
    The FVT-1102 SMF SC media converter can convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fiber-optic cabling, this can extend a network range up to 20km.
    The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.

    Maximum data transfer rate 100 Mbit/s
    Converter input interface 10Base-T, 100Base-TX
    Converter output interface 100Base-FX
    Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Ethernet interface type Fast Ethernet
    Ethernet LAN data rates 10,100 Mbit/s
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Fiber ethernet cabling technology 100BASE-FX
    Flow control support Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    Store-and-forward Y
    Duplex system Full
    Fiber optic connector SC
    Connectivity technology Wired
    Ethernet LAN (RJ-45) ports 1
    Fiber ports quantity 1
    DC-in jack Y
    Maximum transfer distance 20000 m
    Wavelength 1310 nm
    Fiber mode structure Single-mode
    Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
    Mean time between failures (MTBF) 100000 h
    Internal N
    LED indicators Y
    Product colour Black
    Country of origin China
    Certification FCC, CE
    Input voltage 5 V
    Input current 1 A
    Width 94 mm
    Depth 71 mm
    Height 26 mm
    Weight 200 g
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 70 °C
    Operating relative humidity (H-H) 5 - 90%
    Package width 230 mm
    Package depth 150 mm
    Package height 58 mm
    Package weight 300 g
    Package type Blister
    AC adapter included Y
    Quick installation guide Y
    Sustainability certificates RoHS
    Harmonized System (HS) code 85176990
    Master (outer) case width 440 mm
    Master (outer) case length 420 mm
    Master (outer) case height 305 mm
    Master (outer) case gross weight 32 kg
    Products per master (outer) case 40 pc(s)
    Description
    LevelOne Media Converter LevelOne FVT-1102 RJ45 toSC 10/100 Single-Mode Fiber 1310nm 20km 4015867208045

    Products specifications
    Status7 dienas
    Description
    The FVT-1102 SMF SC media converter can convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fiber-optic cabling, this can extend a network range up to 20km.
    The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.

    Maximum data transfer rate 100 Mbit/s
    Converter input interface 10Base-T, 100Base-TX
    Converter output interface 100Base-FX
    Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Ethernet interface type Fast Ethernet
    Ethernet LAN data rates 10,100 Mbit/s
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Fiber ethernet cabling technology 100BASE-FX
    Flow control support Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    Store-and-forward Y
    Duplex system Full
    Fiber optic connector SC
    Connectivity technology Wired
    Ethernet LAN (RJ-45) ports 1
    Fiber ports quantity 1
    DC-in jack Y
    Maximum transfer distance 20000 m
    Wavelength 1310 nm
    Fiber mode structure Single-mode
    Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
    Mean time between failures (MTBF) 100000 h
    Internal N
    LED indicators Y
    Product colour Black
    Country of origin China
    Certification FCC, CE
    Input voltage 5 V
    Input current 1 A
    Width 94 mm
    Depth 71 mm
    Height 26 mm
    Weight 200 g
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 70 °C
    Operating relative humidity (H-H) 5 - 90%
    Package width 230 mm
    Package depth 150 mm
    Package height 58 mm
    Package weight 300 g
    Package type Blister
    AC adapter included Y
    Quick installation guide Y
    Sustainability certificates RoHS
    Harmonized System (HS) code 85176990
    Master (outer) case width 440 mm
    Master (outer) case length 420 mm
    Master (outer) case height 305 mm
    Master (outer) case gross weight 32 kg
    Products per master (outer) case 40 pc(s)
    Description
    LevelOne Media Converter LevelOne FVT-1102 RJ45 toSC 10/100 Single-Mode Fiber 1310nm 20km 4015867208045
