    PrevLevel One FSW-0808 TX
    NextLevel One FSW-2450 19 24-P...
    Manufacturer: LEVELONE

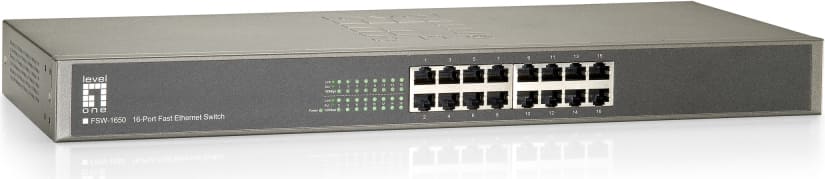

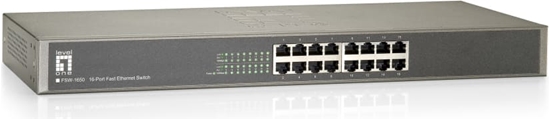

    Level One FSW-1650 19 16 Port 10/100Mbps Switch


    €56.68 incl tax

    SKU: ST07369353
    Manufacturer part number: FSW-1650
    Manufacturer Homepage
    *
    Stock Delivery Quantity Price
    EU
    LV

    Products specifications
    Properties RJ-45
    RJ-45 port 8
    Status14 dienas
    Description
    Product Overview The FSW-1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices. Advanced Networking Features The LevelOne FSW-1650 is a wire-speed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX. The 16-port Fast Ethernet Switch utilizes packetstore- and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss. Compact Design The FSW-1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit. Quick Configuration and Easy Maintenance The LevelOne FSW-1650 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting. - Provides flexibility of 16 x 10/100BASE-TX ports - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - Supports 8K MAC address auto-learning and auto-aging - QoS control for traffic prioritization and bandwidth management - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 19-inch metal housing - Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 16
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Cable types supported Cat5
    Full duplex Y
    MAC address table 8192 entries
    Switching capacity 3.2 Gbit/s
    Store-and-forward Y
    Switching protocols CSMA/CD
    Rack mounting Y
    Stackable N
    Product colour Grey
    LED indicators Activity, LAN, Link, Power
    Country of origin China
    Certification CE RoHS
    Buffer size 160 KB
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (typical) 6.2 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 5 - 95%
    Width 44 mm
    Depth 208 mm
    Height 440 mm
    Weight 2.6 kg
    Cables included AC
    Quick start guide Y
    Wall mounting kit Y
    Package width 308 mm
    Package depth 94 mm
    Package height 550 mm
    Package weight 2.7 kg
    Harmonized System (HS) code 85176990

    Products specifications
    Properties RJ-45
    RJ-45 port 8
    Status14 dienas
    Description
    Product Overview The FSW-1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices. Advanced Networking Features The LevelOne FSW-1650 is a wire-speed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX. The 16-port Fast Ethernet Switch utilizes packetstore- and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss. Compact Design The FSW-1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit. Quick Configuration and Easy Maintenance The LevelOne FSW-1650 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting. - Provides flexibility of 16 x 10/100BASE-TX ports - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - Supports 8K MAC address auto-learning and auto-aging - QoS control for traffic prioritization and bandwidth management - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 19-inch metal housing - Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

    Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 16
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
    Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX
    Cable types supported Cat5
    Full duplex Y
    MAC address table 8192 entries
    Switching capacity 3.2 Gbit/s
    Store-and-forward Y
    Switching protocols CSMA/CD
    Rack mounting Y
    Stackable N
    Product colour Grey
    LED indicators Activity, LAN, Link, Power
    Country of origin China
    Certification CE RoHS
    Buffer size 160 KB
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (typical) 6.2 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 5 - 95%
    Width 44 mm
    Depth 208 mm
    Height 440 mm
    Weight 2.6 kg
    Cables included AC
    Quick start guide Y
    Wall mounting kit Y
    Package width 308 mm
    Package depth 94 mm
    Package height 550 mm
    Package weight 2.7 kg
    Harmonized System (HS) code 85176990
