    Manufacturer: LEVELONE

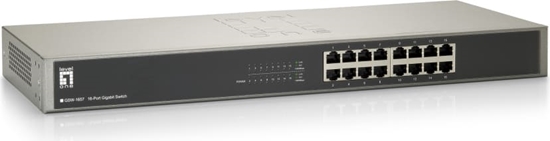

    Level One GSW-1657 16 Port Gigabit Ethernet Switch


    €102.89 incl tax

    SKU: ST07364291
    Manufacturer part number: GSW-1657
    Manufacturer Homepage
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    Properties RJ-45
    WRL stadarti 802.11b
    Status7 dienas
    Description
    Gigabit Speeds: Take Your Data to the Next Level GSW-1657 is a 16-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 32Gbps and bring Gigabit speeds all the way to your computers. Bandwidth hungry? Not a problem. What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-1657 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag. Standards-based GSW-1657 features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, you have powerful features sending your data throughout the network. Plug and Play, Flexible and Easy GSW-1657 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.

    Switch type Unmanaged
    Quality of Service (QoS) support Y
    Basic switching RJ-45 Ethernet ports quantity 16
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Cable types supported Cat5, Cat6, Cat7
    Full duplex Y
    Flow control support Y
    Auto MDI/MDI-X Y
    MAC address table 8192 entries
    Switching capacity 32 Gbit/s
    Store-and-forward Y
    Jumbo frames support Y
    Jumbo frames 10000
    Packet forwarding rate (1 Gbps) 1488000 pps
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Packet buffer memory 0.5 MB
    Rack mounting Y
    Product colour Black, Grey
    LED indicators Activity, Link
    Certification FCC, CE
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Input current 0.6 A
    Power consumption (typical) 13.3 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 45 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Width 140 mm
    Depth 440 mm
    Height 44 mm
    Weight 1.48 kg
    Cables included AC
    Quick start guide Y
    Mounting brackets included Y
    Package width 224 mm
    Package depth 486 mm
    Package height 77 mm
    Package weight 2.15 kg
    Master (outer) case width 405 mm
    Master (outer) case length 500 mm
    Master (outer) case height 240 mm
    Harmonized System (HS) code 85176990
    Master (outer) case gross weight 11.8 kg
