    Manufacturer: LEVELONE

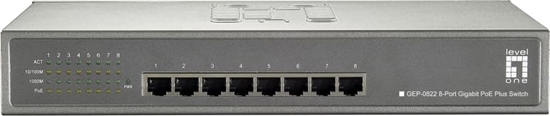

    Level One LevelOne Switch 8x GE GEP-0822 240W 8xPoE+


    €328.89 incl tax

    SKU: ST07371210
    Manufacturer part number: GEP-0822
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties RJ-45
    RJ-45 port 8
    WRL stadarti 802.11b
    Status7 dienas
    Description
    The LevelOne GEP-0822 provides 8 x 10/100/1000Mbps ports with IEEE 802.3at PoE-Plus supported. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 240W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an inexpensive solution for PoE deploying infrastructure. - IEEE 802.3af/at PoE compliant to simplify deployment and installation - 10/100/1000Mbps wire speed transmission and reception - 9K jumbo frames to increase data transfer rates - Supports 8K MAC address auto-learning and auto-aging - Auto-detection and protection of non-standard PoE devices - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 19-inch rackmount kit included - Total PoE power budget: 240W, up to 30W per port - Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TX
    Cable types supported Cat5, Cat5e, Cat6, Cat7
    MAC address table 8192 entries
    Switching capacity 16 Gbit/s
    Store-and-forward Y
    Jumbo frames support Y
    Jumbo frames 9000
    Packet forwarding rate (1 Gbps) 1488000 pps
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Rack mounting Y
    Product colour Grey
    LED indicators Activity, PoE, Power
    Country of origin Taiwan
    Certification FCC, CE
    Buffer size 128 KB
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Input current 5 A
    Power consumption (typical) 250 W
    Power over Ethernet (PoE) Y
    Power over Ethernet plus (PoE+) ports quantity 8
    Total Power over Ethernet (PoE) budget 240 W
    Operating temperature (T-T) 0 - 45 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Width 280 mm
    Depth 185 mm
    Height 44 mm
    Weight 2 kg
    Cables included AC
    Quick start guide Y
    Package type Box
    Package width 371 mm
    Package depth 230 mm
    Package height 82 mm
    Package weight 2.26 kg
    Harmonized System (HS) code 85176990
