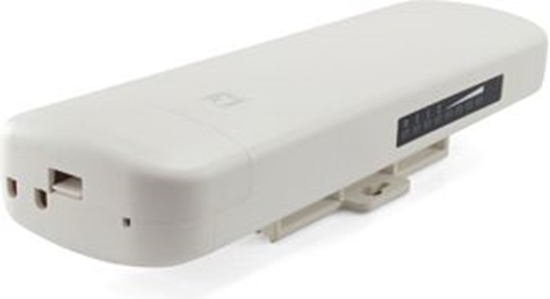

The LevelOne WAB-5010 is a managed, outdoor single-band 802.11a/n wireless access point, capable of 300 Mbps wireless internet speeds. The device runs on 5 GHz frequency, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAB-5010 also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAP is designed for outdoor deployments, and can withstand rain, humidity, dust, snow and extremely hot conditions. A fast, versatile and secure access point for a wide variety of outdoor network requirements.
Key Features
- Share your wireless network up to 300Mbps
- Multi-operation modes to suit different wireless applications
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Weatherproof IP65-rated housing
- Provides up to 4 SSIDs to separate network traffic and enhance security
| | 2.4 GHz | N | | 5 GHz | Y | | Maximum data transfer rate | 300 Mbit/s | | Ethernet LAN data rates | 10,100 Mbit/s | | Frequency band | 5.18 - 5.825 GHz | | Networking standards | IEEE 802.11a, IEEE 802.11e, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3u | | Number of users | 64 user(s) | | Channels quantity | 165 channels | | Modulation | 16-QAM, 64-QAM, BPSK, CCK, DSSS, OFDM, QPSK | | Wi-Fi Multimedia (WMM)/(WME) | Y | | Operating modes | Access Point (AP),Gateway,Repeater,WDS,WISP | | Quality of Service (QoS) support | Y | | Security algorithms | 64-bit WEP, 128-bit WEP, WPA-AES, WPA-TKIP, WPA2-AES, WPA2-TKIP, WPS | | Service Set Identifier (SSID) features | SSID broadcast on/off | | Number of SSID supported | 4 | | Auto Wireless Distribution System (WDS) | Y | | Web-based management | Y | | Firmware upgradeable | Y | | Ethernet LAN (RJ-45) ports | 1 | | WAN connection | Ethernet (RJ-45) | | Power over Ethernet (PoE) | Y | | AC input voltage | 12 V | | Input current | 1.5 A | | Power consumption (typical) | 15 W | | Product colour | White | | International Protection (IP) code | IP65 | | Reset button | Y | | Country of origin | China | | Certification | CE, FCC | | Internal | N | | Antenna features | Integrated antenna | | Antenna gain level (max) | 15 dBi | | Width | 87 mm | | Depth | 257 mm | | Height | 40 mm | | Weight | 440 g | | CD manual | Y | | CD quick installation guide | Y | | Package width | 106 mm | | Package depth | 332 mm | | Package height | 95 mm | | Package weight | 700 g | | Package type | Box | | Cables included | LAN (RJ-45) | | Mounting kit | Y | | Quick start guide | Y | | Operating relative humidity (H-H) | 10 - 90% | | Operating temperature (T-T) | -40 - 55 °C | | Storage temperature (T-T) | -40 - 70 °C | | Storage relative humidity (H-H) | 5 - 90% | | Harmonized System (HS) code | 85176990 | | Master (outer) case width | 350 mm | | Master (outer) case length | 495 mm | | Master (outer) case height | 452 mm | | Master (outer) case gross weight | 2.1 kg | | Products per master (outer) case | 20 pc(s) |
|
|
