    Manufacturer: LEVELONE

    Level One LevelOne Antenne panel direktional dual-polarization 5GHz


    €140.11 incl tax

    SKU: ST07108743
    Manufacturer part number: WAN-9151
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    WRL stadarti 802.11a
    WRL stadarti 802.11n
    Status7 dienas
    Description

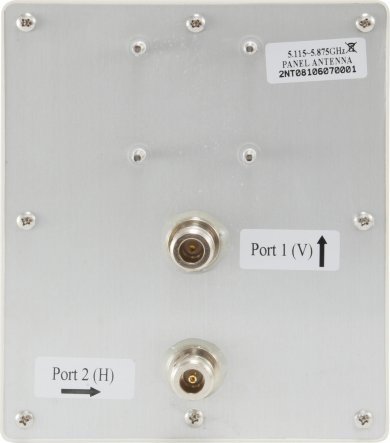

    The LevelOne WAN-9151 is a directional, dual-polarization antenna that can be mounted either indoors or outside. Dual-polarization offers the flexibility of two different communication channels receiving simultaneously, while a high gain of 15dBi offers better range and signal strength. If mounted outdoors the IP65-rated weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions. - Provides 15dBi directional operation - Directional operation provides extended point to point coverage - For IEEE 802.11a/n Wireless applications in 5 GHz frequency range - Dual-Polarization to avoid interference - Low wind loading

    Antenna gain level (max) 15 dBi
    Frequency band 5.1 ~ 5.9 GHz
    Networking standards IEEE 802.11a, IEEE 802.11n
    Impedance 50 Ω
    Horizontal beam width 22°
    Vertical beam width 15°
    Antenna type Directional antenna
    Antenna connector type N-type
    Polarization Dual polarization
    Voltage Standing Wave Ratio (VSWR) 2.0
    Protection features Dust resistant, Snow resistant, Water resistant
    Survival wind speed 180 km/h
    Purpose Indoor & outdoor
    Maximum cable loss with connectors -10 dB
    Country of origin Taiwan
    Product colour Grey
    Operating temperature (T-T) -30 - 60 °C
    Operating relative humidity (H-H) 0 - 95%
    Width 137.5 mm
    Depth 162.5 mm
    Height 16 mm
    Weight 208 g
    Package width 161 mm
    Package depth 218 mm
    Package height 74 mm
    Package weight 726 g
    Mounting kit Y
    Quick installation guide Y
    Package type Box
    Harmonized System (HS) code 85177100
    Master (outer) case width 370 mm
    Master (outer) case length 450 mm
    Master (outer) case height 340 mm
    Master (outer) case gross weight 15.5 kg
    Products per master (outer) case 20 pc(s)
