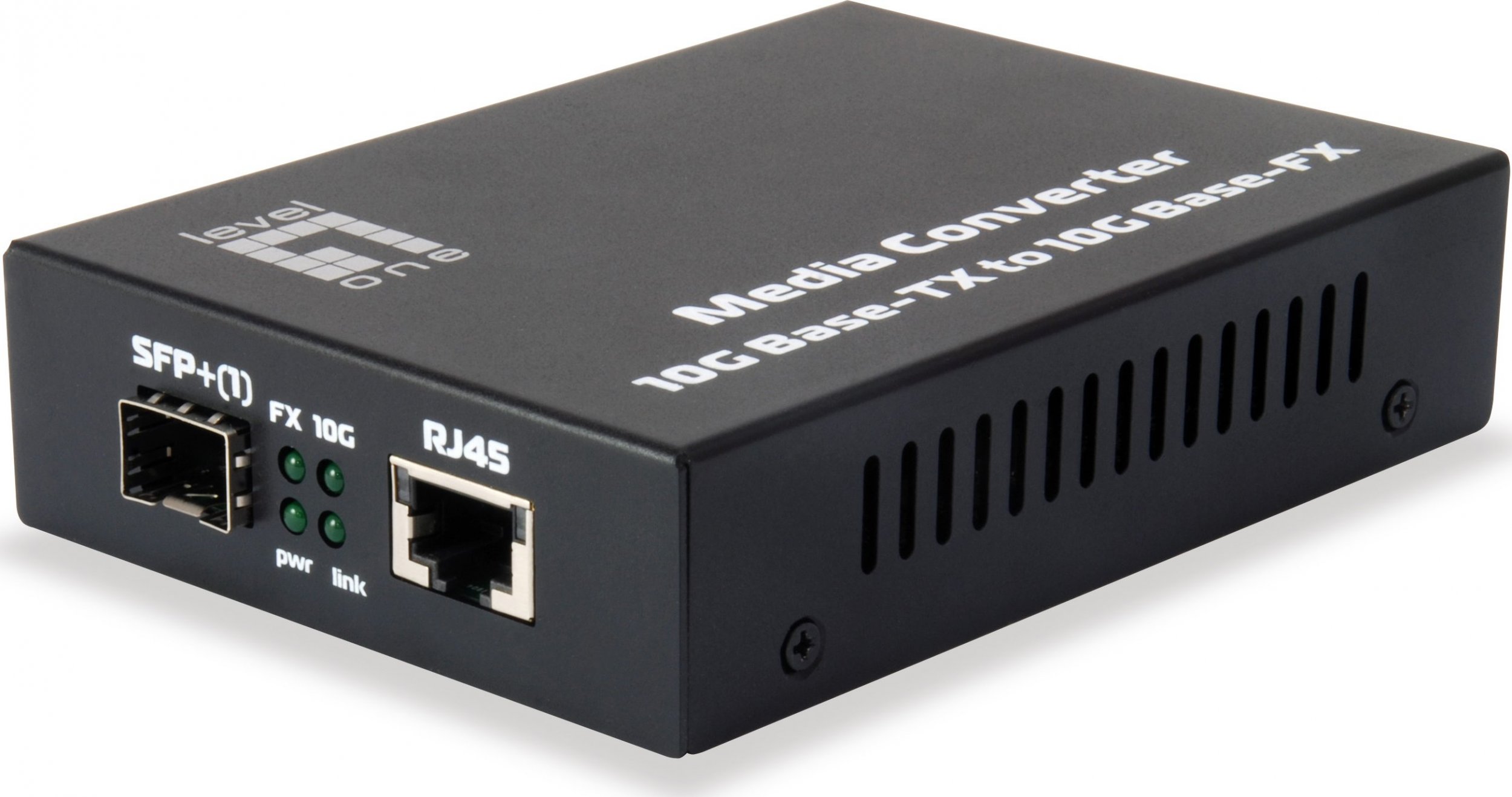

The LevelOne GVT-0500 is a powerful 10 Gigabit media converter which, in combination with the optional available LevelOne SFP+ modules, converts optical into electrical signals, supports optical signal equilibrium amplification, clock extraction and optical regeneration. It uses WDM (DWDM/CWDM) technology, which can transmit data signals over a long distance in a single fiber in simple or multiple ways. On existing network infrastructure, the GVT-0500 can quickly improve transmission capacity and expand bandwidth. At the same time, it is a cost-efficent and highly cost-effective solution for managing and operating the system. It is also optimized for ease of operation and maintenance.
| | Maximum data transfer rate | 10000 Mbit/s | | Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z | | Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet | | Ethernet LAN data rates | 10,100,1000,10000 Mbit/s | | Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T | | Fiber ethernet cabling technology | 10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 10GBASE-ZR | | Jumbo frames support | Y | | Jumbo frames | 9000 | | Auto MDI/MDI-X | Y | | Duplex system | Full | | Cable types supported | Cat6a | | Fiber optic connector | SFP | | Connectivity technology | Wired | | Ethernet LAN (RJ-45) ports | 1 | | DC-in jack | Y | | Maximum transfer distance | 100 m | | Mean time between failures (MTBF) | 50000 h | | Internal | N | | LED indicators | Activity, Link, Power | | Product colour | Black | | Housing material | Metal | | Country of origin | China | | Certification | CE | | Input voltage | 5 V | | Input current | 3 A | | Power consumption (typical) | 1.2 W | | Hot-swap | Y | | Width | 115 mm | | Depth | 85 mm | | Height | 25 mm | | Weight | 300 g | | Operating temperature (T-T) | -10 - 55 °C | | Storage temperature (T-T) | -40 - 75 °C | | Operating relative humidity (H-H) | 5 - 90% | | Package width | 230 mm | | Package depth | 150 mm | | Package height | 85 mm | | Package weight | 700 g | | Package type | Box | | AC adapter included | Y | | Quick installation guide | Y | | Sustainability certificates | RoHS | | Harmonized System (HS) code | 85176990 |
|
|
