Manufacturer: LEVELONE

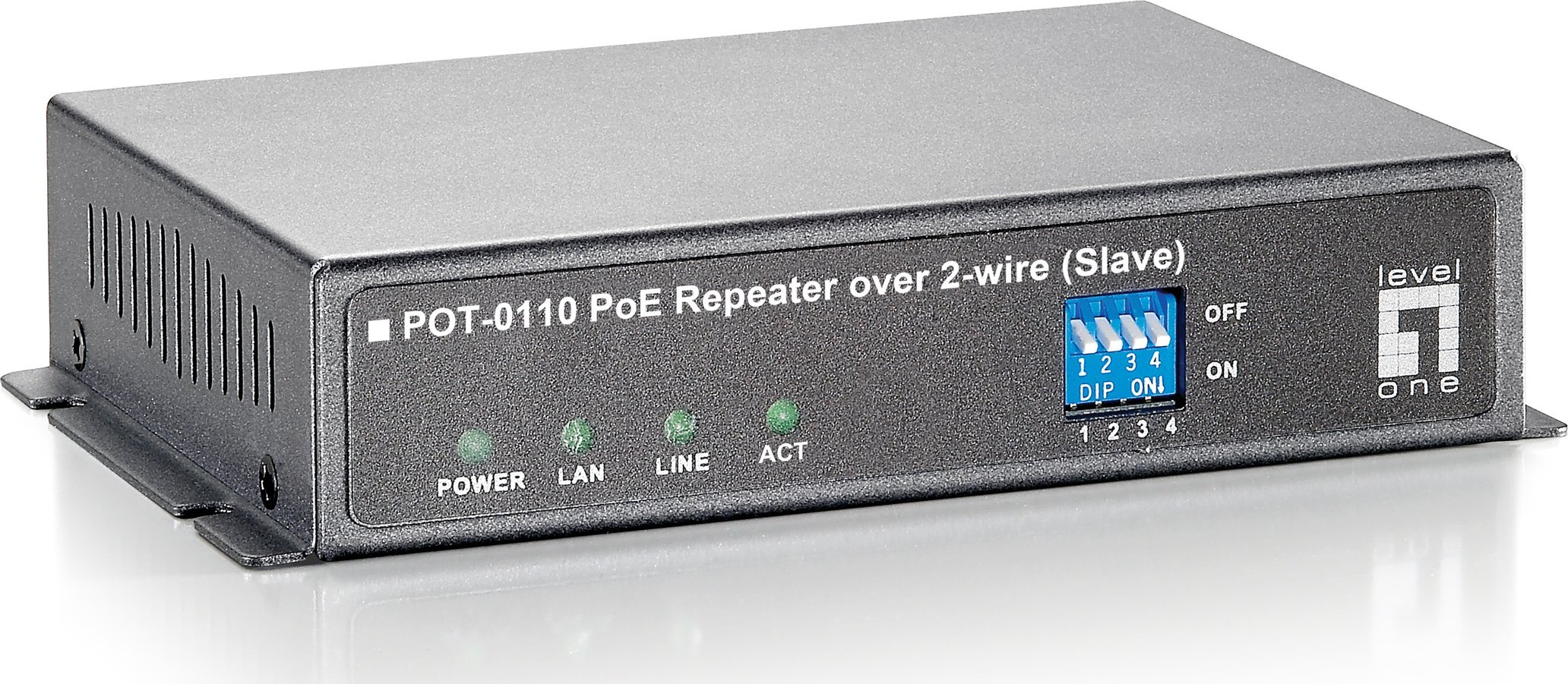

LevelOne POT-0110 PoE over 2-wire-Repeater

€313.10 incl tax

SKU: ST08126813

Manufacturer part number: POT-0110

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
PL	8 - 15 days	3	€313.10 incl tax
LV	7 - 12 days	3	€338.92 incl tax

Qty:

Specifications

Products specifications

1
Details 2

Properties	RJ-45

Status

7 dienas

Description

The POT system, one master & one slave units, provide a long-reach Ethernet extension with remote Powerover-Ethernet (PoE) capability over a 2-wire line. Connection with a Class 0 PD device, the distance of two-wire 24AWG cables can be up to 400 meters when using a 48Watt high power PoE Switch, FSW-0513/0543. Users may select a fixed data rate for different copper line ranging. The maximum data rate can be up to 60 Mbps full duplex for 2-wire line.

The POT master unit is powered by the local PoE Ethernet network, and transmits both the data and power to the remote slave unit over 2-wire cable. The remote unit regenerates the power and provides the PoE capability to power up the remote PD device up to 15 watts when connecting to 48Watt High Power Switch, FSW-0513. The POT M/S supports the indoor & outdoor models with wall-mount feature.

Equipped with dip switches, the 2-wire line speed can be configured to meet different line gauges and distances. A POT pair offers a cost effective solution for remote power applications such as LAN-to-LAN connectivity, Video Streaming, FTTB, and MDU/MTU over single twisted line.

- Two-wire cables are used to connect 100Mbps Fast Ethernet PoE devices
- Maximum distance up to 400 meters for 24 AWG cable
- Maximum data rate up to 60 Mbps full duplex
- Remote PoE capability for PD devices of WiFi AP, IP camera, IP telephones
- Up to 15 Watts for remote PoE, Depending on PSE power
- Easy installation by indoor & outdoor different models
- Dip Switches for 2-wire line rate settings
- Auto MDIX for 10/100 Base T Ethernet LAN Ports
- Low-Latency for Video/Voice/Data applications

Type	Network repeater
Maximum transfer distance	400 m
Data transfer rate	60 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN (RJ-45) ports	1
RJ-11 ports quantity	1
Product colour	Black
LED indicators	Jā
Country of origin	Taiwan
Certification	FCC Rules Part 15, CE
Output voltage	57 V
Power over Ethernet (PoE)	Jā
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Width	90 mm
Depth	120 mm
Height	28 mm
Manual	Jā
Package width	148 mm
Package depth	235 mm
Package height	80 mm
Package weight	540 g
Harmonized System (HS) code	85176990
