Manufacturer: LEVELONE

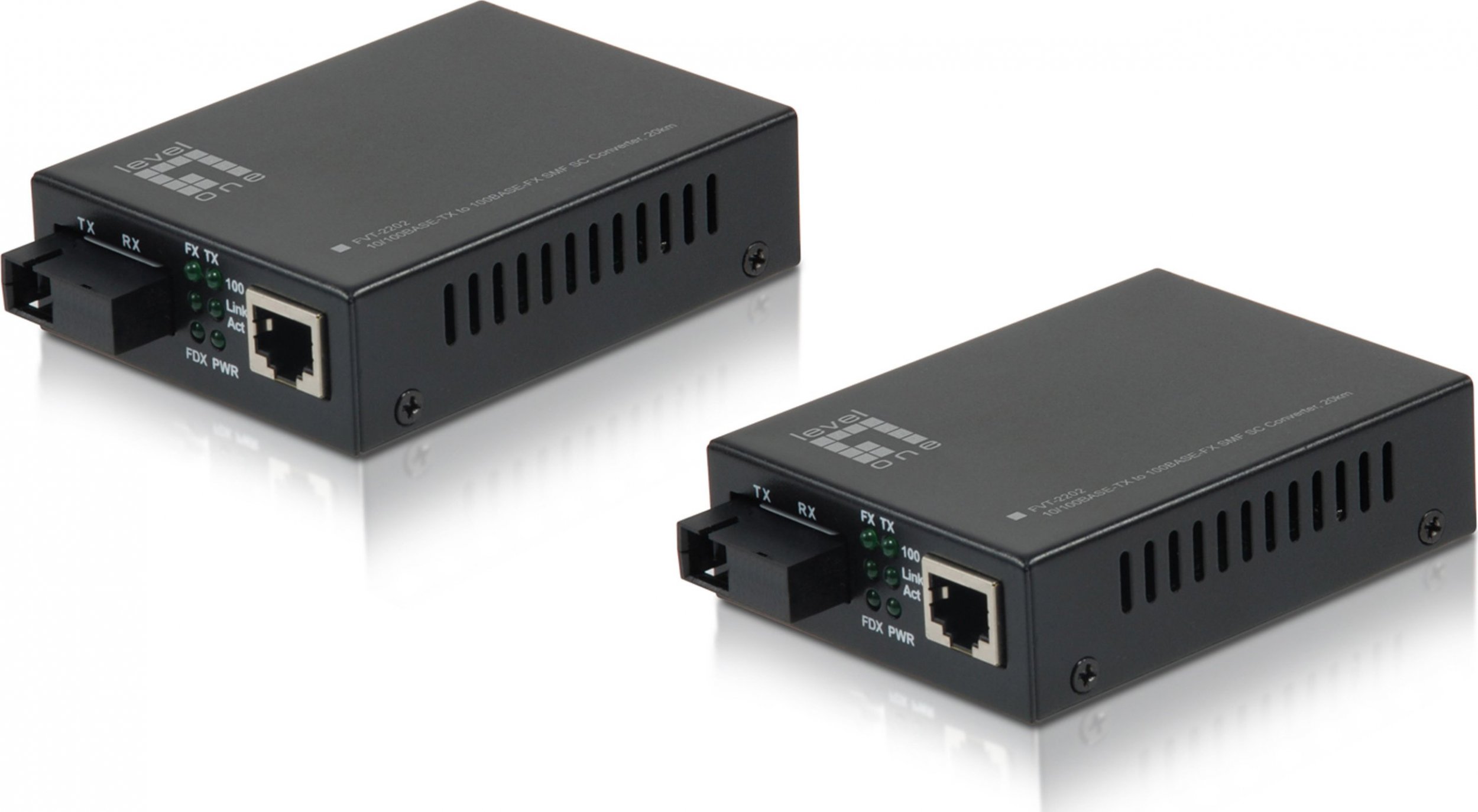

Level One LevelOne Konverter FVT-2202 10/100T>1000FX BIDI SM 20km

€101.22 incl tax

SKU: ST07093593

Manufacturer part number: FVT-2202

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	8	€101.22 incl tax
PL	8 - 15 days	8	€156.95 incl tax

Qty:

Specifications

Products specifications

Status

7 dienas

Description

FVT-2202 Fast Ethernet Media Converter Set is ideally designed for connecting two copper wire networks over long distances via fiber optical communication. Featuring Bi-directional (BIDI) fiber optic interface with SC connector allows data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction. Used in single-mode with fibre-optic cabling, this can extend a network range up to 20km. Transfers data from 10/100Base-TX copper to fiber interfaces Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology Dip switches for customized configuration Supports low-time lag transmission Supports the transmission of extra-long packets up to 1.6KB -10°C to 55°C operating temperature range Single-mode fiber with BIDI SC connector for transmission of up to 20km

Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Fiber ethernet cabling technology	100BASE-FX
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Store-and-forward	Y
Duplex system	Full, Half
Link Loss Carry Forward (LLCF) supported	Y
Link Loss Return (LLR) supported	Y
Cable types supported	Cat5
Fiber optic connector	SX
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Maximum transfer distance	20000 m
Wavelength-division multiplexing (WDM)	Y
Fiber cable diameters supported (core/cladding)	8.3/125,9/125,10/125 µm
Internal	N
LED indicators	Activity, Link, Power
Product colour	Black
Country of origin	China
Certification	CE, FCC
Input voltage	5 V
Input current	1 A
Width	94 mm
Depth	70 mm
Height	25 mm
Weight	420 g
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 90%
Package width	235 mm
Package depth	125 mm
Package height	55 mm
Package weight	914 g
Package type	Blister
AC adapter included	Y
Quick installation guide	Y
Harmonized System (HS) code	85176990
Master (outer) case width	480 mm
Master (outer) case length	360 mm
Master (outer) case height	390 mm
Master (outer) case gross weight	16.2 kg
Products per master (outer) case	36 pc(s)
