Manufacturer: LEVELONE

Level One LevelOne Konverter FVT-1106 10/100TX>100FX 120km

€197.30 incl tax

SKU: ST07097474

Manufacturer part number: FVT-1106

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	34	€197.30 incl tax
PL	8 - 15 days	34	€246.37 incl tax

Qty:

Specifications

Products specifications

Status

7 dienas

Description

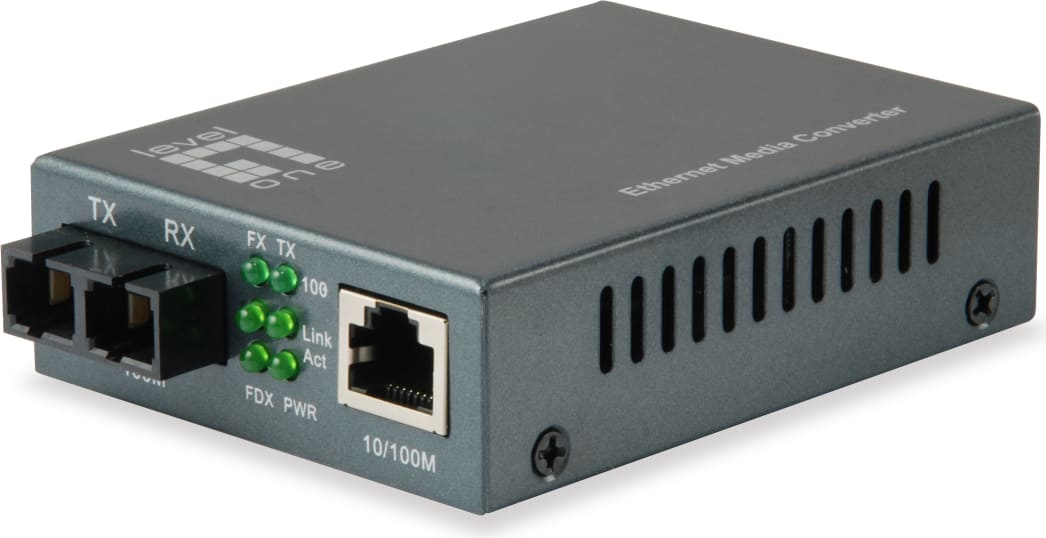

The LevelOne FVT-1106 SMF SC media converter can convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fiber-optic cabling, this can extend a network range up to 120km. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.

Maximum data transfer rate	100 Mbit/s
Converter input interface	10Base-T, 100Base-TX
Converter output interface	100Base-FX
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Fiber ethernet cabling technology	100BASE-FX
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Store-and-forward	Y
Duplex system	Full
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
DC-in jack	Y
Maximum transfer distance	120000 m
Wavelength	1550 nm
Fiber mode structure	Single-mode
Mean time between failures (MTBF)	100000 h
Internal	N
LED indicators	Y
Product colour	Black
Country of origin	China
Safety	CE
Certification	CE
Input voltage	5 V
Input current	1 A
Width	94 mm
Depth	71 mm
Height	26 mm
Weight	200 g
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Package width	230 mm
Package depth	150 mm
Package height	58 mm
Package weight	300 g
Package type	Box
AC adapter included	Y
Quick installation guide	Y
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Master (outer) case width	440 mm
Master (outer) case length	420 mm
Master (outer) case height	305 mm
Master (outer) case gross weight	32 kg
Products per master (outer) case	40 pc(s)
