Manufacturer: LEVELONE

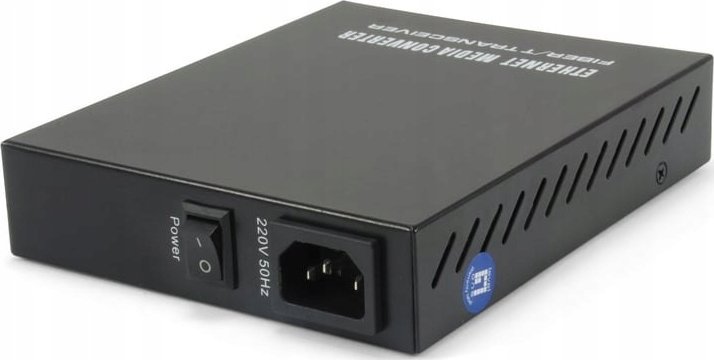

Level One LevelOne Konverter FVM-1000 10/100TX>100

€153.66 incl tax

SKU: ST07108244

Manufacturer part number: FVM-1000

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	5	€153.66 incl tax
PL	8 - 15 days	5	€195.63 incl tax

Qty:

Specifications

Products specifications

Status

7 dienas

Description

FVM-1000 is remote Managed Fast Ethernet fiber media converter with OAM functions developed by our company. It can convert Ethernet signal between 10/100Base-Tx and 100Base-FX, It supports both half-duplex and full-duplex operations and a variety of fiber options. Remote devices can be managed by fiber-connected OAM media converter or OAM switch when deployed as a stand-alone solution. It incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.

Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Jumbo frames support	Y
Jumbo frames	9000
Flow control support	Y
VLAN support	Y
Duplex system	Full, Half
Fiber optic connector	SFP
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Mean time between failures (MTBF)	30000 h
Internal	N
LED indicators	Activity, FDX, Link, Power
Product colour	Black
Country of origin	China
Certification	FCC, CE
Input voltage	100 - 240 V
Output voltage	5 V
Output current	2 A
Web-based management	Y
Hot-swap	Y
Width	127 mm
Depth	156 mm
Height	32 mm
Weight	700 g
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 90%
Package width	185 mm
Package depth	275 mm
Package height	62 mm
Package weight	860 g
Package type	Box
Manual	Y
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Master (outer) case width	360 mm
Master (outer) case length	480 mm
Master (outer) case height	390 mm
Master (outer) case gross weight	17.5 kg
Products per master (outer) case	17 pc(s)
