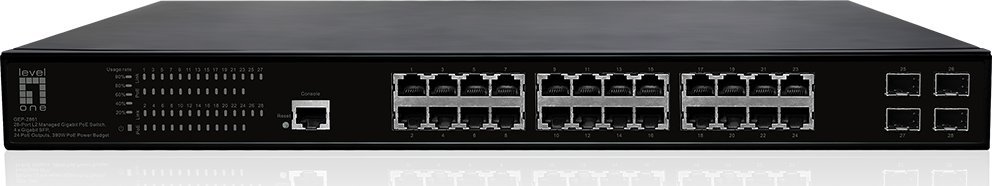

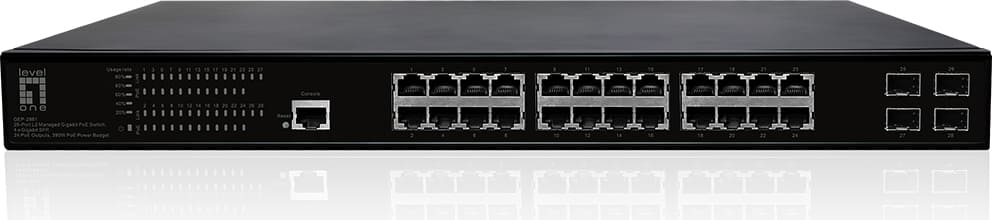

The levelone GEP-2861 is a 28-Port L2 Managed Gigabit PoE Switch that supports up to 24*10/100/1000M PoE ports and 4*1000M SFP ports. 24*10/100/1000M ports support PoE+ and total up to 390W PoE power budget, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W. supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management. It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection. supports 19" rack mount and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions. GEP-2861 provides high HW performance and environment flexibility for SMBs and Enterprises. GEP-2861 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
| | Switch type | Managed | | Switch layer | L2 | | Quality of Service (QoS) support | Y | | Basic switching RJ-45 Ethernet ports quantity | 24 | | Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | | Gigabit Ethernet (copper) ports quantity | 24 | | SFP module slots quantity | 4 | | Console port | RJ-45 | | Power connector | AC-in jack | | Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z | | 10G support | N | | Copper ethernet cabling technology | 10BASE-T, 1000BASE-T, 100BASE-TX | | Port mirroring | Y | | Broadcast storm control | Y | | Ethernet LAN data rates | 10,100,1000 Mbit/s | | VLAN support | Y | | MAC address table | 16000 entries | | Switching capacity | 56 Gbit/s | | Jumbo frames support | Y | | Jumbo frames | 10000 | | Packet buffer memory | 4 MB | | Access Control List (ACL) | Y | | BPDU filtering/protection | Y | | Password protection | Y | | Multicast support | Y | | Rack mounting | Y | | Stackable | N | | Form factor | 1U | | Product colour | Black | | LED indicators | Activity, Link, PoE, Speed, System | | Country of origin | China | | Certification | CE, RoHS | | Firmware upgradeable | Y | | Fanless | N | | Power source | AC | | Power supply included | Y | | AC input voltage | 100 - 240 V | | AC input frequency | 50 - 60 Hz | | Power over Ethernet (PoE) | Y | | Power over Ethernet (PoE) power per port | 30 W | | Total Power over Ethernet (PoE) budget | 390 W | | Operating temperature (T-T) | -10 - 50 °C | | Storage temperature (T-T) | -40 - 85 °C | | Operating relative humidity (H-H) | 0 - 95% | | Storage relative humidity (H-H) | 0 - 95% | | Width | 442 mm | | Depth | 285 mm | | Height | 44 mm | | Weight | 4 kg | | Cables included | AC | | Quick start guide | Y | | Package type | Box | | Rack mount kit | Y | | Package width | 395 mm | | Package depth | 90 mm | | Package height | 530 mm | | Package weight | 4.8 kg | | Harmonized System (HS) code | 85176990 |
|
|
