| Model | Z890 PRO-A |
| CPU socket | LGA1851 |
| Processor family | Intel Core Ultra |
| Integrated CPU | No |
| Chipset manufacturer | Intel |
| Chipset type | Intel Z890 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 6533 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 8666 MHz |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 4400 MHz |
| Max memory size | 256 (GigaBajt) |
| Expansion slots | 1 x M.2 |
| Expansion slots | 1 x PCIe 4.0 x 1 |
| Expansion slots | 2 x PCIe 4.0 x 4 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Max. number of SATA devices | 4 |
| Max. number of ATA devices | 0 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | - Intel Xe LPG Graphics Architecture
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
|
| Sound card | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
|
| USB ports at back panel | 9 |
| USB ports on motherboard | 9 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 4 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 4 x USB 2.0 |
| External connectors | 1 x USB 3.2 Gen 2 Type-A |
| External connectors | 2 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x USB 3.2 Gen 2 Type-C |
| External connectors | 1 x DisplayPort |
| External connectors | 1 x HDMI |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 1 x Thunderbolt 4 |
| External connectors | 2 x SMA |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 2 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 2 x 4pin wentylator CPU |
| Onboard connectors | 5 x 4pin Chassis fan |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 1 x Power LED and Speaker Header |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Form factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
| Accessories included | - Osłona I/O
- 2 x kable danych SATA
- Śruba do gniazda M.2
|
| Supported operating systems | Windows 11 |
| Software | Software - ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI - ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
|
| Other information | Certyfikaty - FCC, CE
- ErP/EuP ready (wymagany zasilacz ErP/EuP ready)
|
| Width | 350 |
| Height | 280 |
| Depth | 80 |
| Weight | 1648 |
| Description |

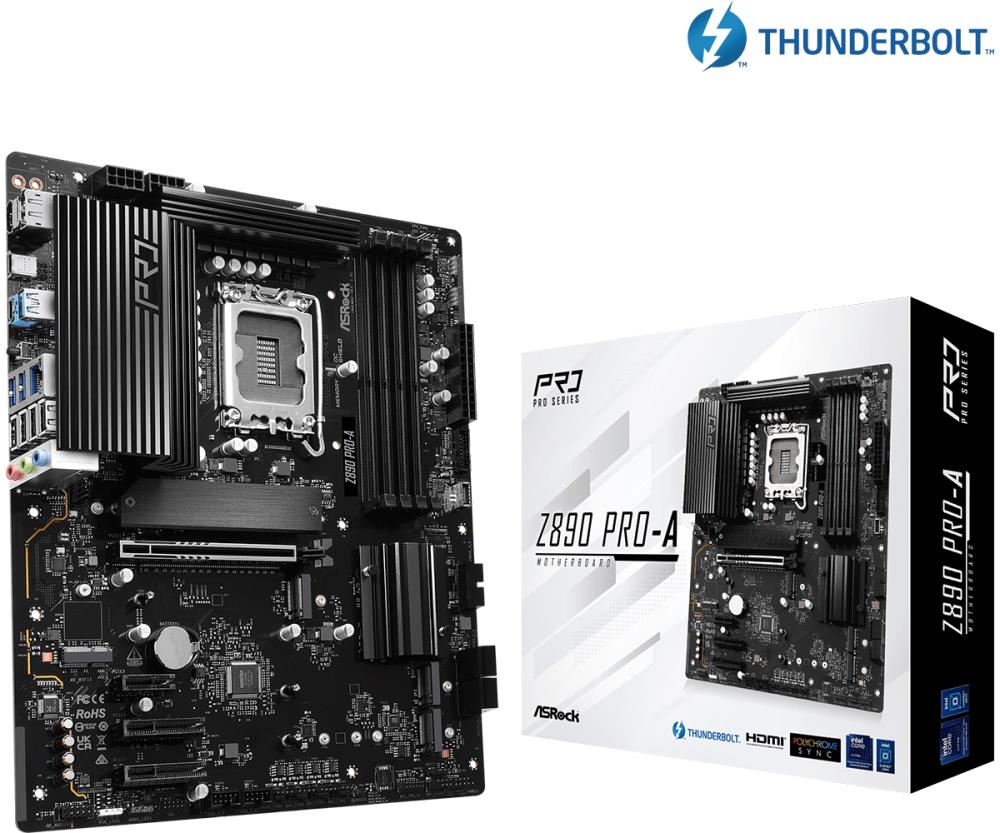

Z890 Pro-A
Seria Pro-A została zaprojektowana z myślą o zwiększonej stabilności, trwałości i wydajności, oferuje niezawodną wydajność, przyjazne dla użytkownika funkcje i opływowy wygląd, dzięki czemu idealnie nadaje się do codziennych potrzeb komputerowych. - Obsługuje procesory Intel Core Ultra (seria 2) (LGA1851)
- 16+1+1+1+1 faza zasilania, Dr.MOS dla VCore+GT
- 4 x DDR5 DIMM
- Obsługuje Dual Channel, do 8666+ (OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E dla WiFi
- Opcje wyjścia graficznego: 1 HDMI, 1 DisplayPort, 1 Thunderbolt 4 Type-C
- Kodek audio Realtek ALC897 7.1 CH HD
- 4 SATA3
- 1 Blazing M.2 (PCIe Gen5 x4)
- 2 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 i SATA3)
- 1 Thunderbolt 4 Type-C (tył)
- 2 USB 3.2 Gen2x2 Type-C (1 z tyłu, 1 z przodu),
- 1 USB 3.2 Gen2 Type-A (z tyłu),
- 6 USB 3.2 Gen1 (2 z tyłu, 4 z przodu),
- 8 USB 2.0 (4 z tyłu, 4 z przodu)
- Realtek 2.5G LAN
- Obsługuje BIOS Flashback, Memory OC Shield, Durable Caps o pojemności 1000uF
|
