    Manufacturer: INTELLINET

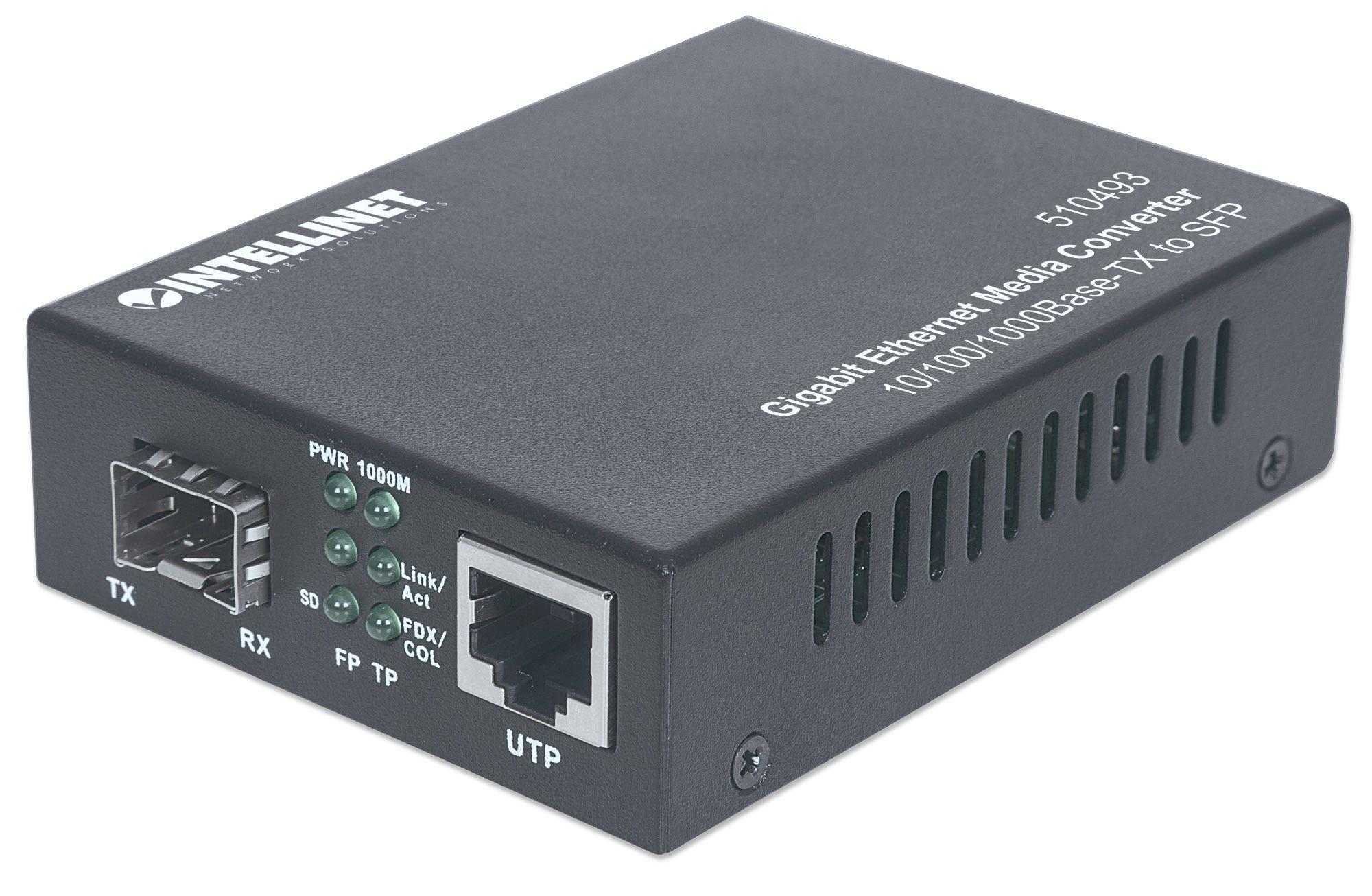

    Intellinet Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty (Euro 2-pin plug)


    €74.23 incl tax

    SKU: ST02831237
    Manufacturer part number: 510493
    Manufacturer Homepage
    Warranty: 36 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    WRL stadarti 802.11b
    RJ-45 port 1
    Properties RJ-45
    UsageLAN
    Inputs1 x Ethernet
    Outputs1 x SFP
    Accessories included

    - Instrukcja
    - Zasilacz
    ColorBlack
    Dimensions

    96 (L) x 70 (W) x 26 (H) mm
    Weight170 (gram)
    Other features

    Standardy:
    IEEE 802.3 (Twisted Pair Ethernet)
    IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
    IEEE 802.3u (Twisted Pair Fast Ethernet)
    IEEE 802.3z (Fiber Optic Gigabit Ethernet)
    Width125
    Height230
    Depth55
    Weight355
    Maximum data transfer rate1000 Mbit/s
    Converter input interface10Base-T,100Base-TX,1000Base-TX
    Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z
    Ethernet interface typeFast Ethernet, Gigabit Ethernet
    Ethernet LAN data rates10,100,1000 Mbit/s
    Data transfer rate1000 Mbit/s
    Auto MDI/MDI-XY
    Duplex systemFull
    Cable types supportedCat5e, Fiber
    Fiber optic connectorSFP
    Connectivity technologyWired
    Ethernet LAN (RJ-45) ports1
    Fiber ports quantity1
    Maximum transfer distance100 m
    InternalN
    LED indicatorsLink, Power
    Product colourBlack
    Housing materialMetal
    CertificationFCC Class A, CE
    Input voltage12 V
    Input current1.2 A
    Power consumption (max)5 W
    External power adapterY
    Width70 mm
    Depth96 mm
    Height26 mm
    Weight170 g
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 70 °C
    Operating relative humidity (H-H)10 - 80%
    User guideY
    Description
    Intellinet Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty (Euro 2-pin plug). Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T,100Base-TX,1000Base-TX, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z. Fiber optic connector: SFP, Connectivity technology: Wired. Maximum transfer distance: 100 m. LED indicators: Link, Power, Product colour: Black, Housing material: Metal. Input voltage: 12 V, Input current: 1.2 A, Power consumption (max): 5 W
    Status7 dienas
    Description
    The Intellinet Network Solutions Gigabit Ethernet to SFP Media Converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums. Expands the Size of an Existing Network Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. Cabling Flexibility Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

    Maximum data transfer rate 1000 Mbit/s
    Converter input interface 10Base-T, 100Base-TX, 1000Base-TX
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
    Ethernet interface type Fast Ethernet, Gigabit Ethernet
    Ethernet LAN data rates 10,100,1000 Mbit/s
    Data transfer rate 1000 Mbit/s
    Auto MDI/MDI-X Y
    Duplex system Full
    Cable types supported Cat5e, Fiber
    Fiber optic connector SFP
    Connectivity technology Wired
    Ethernet LAN (RJ-45) ports 1
    Fiber ports quantity 1
    Maximum transfer distance 100 m
    Internal N
    LED indicators Link, Power
    Product colour Black
    Housing material Metal
    Certification FCC Class A, CE
    Input voltage 12 V
    Input current 1.2 A
    Power consumption (max) 5 W
    External power adapter Y
    Width 70 mm
    Depth 96 mm
    Height 26 mm
    Weight 170 g
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 70 °C
    Operating relative humidity (H-H) 10 - 80%
    User guide Y
    Harmonized System (HS) code 85176990

    Products specifications
    WRL stadarti 802.11b
    RJ-45 port 1
    Properties RJ-45
    UsageLAN
    Inputs1 x Ethernet
    Outputs1 x SFP
    Accessories included

    - Instrukcja
    - Zasilacz
    ColorBlack
    Dimensions

    96 (L) x 70 (W) x 26 (H) mm
    Weight170 (gram)
    Other features

    Standardy:
    IEEE 802.3 (Twisted Pair Ethernet)
    IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
    IEEE 802.3u (Twisted Pair Fast Ethernet)
    IEEE 802.3z (Fiber Optic Gigabit Ethernet)
    Width125
    Height230
    Depth55
    Weight355
    Maximum data transfer rate1000 Mbit/s
    Converter input interface10Base-T,100Base-TX,1000Base-TX
    Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z
    Ethernet interface typeFast Ethernet, Gigabit Ethernet
    Ethernet LAN data rates10,100,1000 Mbit/s
    Data transfer rate1000 Mbit/s
    Auto MDI/MDI-XY
    Duplex systemFull
    Cable types supportedCat5e, Fiber
    Fiber optic connectorSFP
    Connectivity technologyWired
    Ethernet LAN (RJ-45) ports1
    Fiber ports quantity1
    Maximum transfer distance100 m
    InternalN
    LED indicatorsLink, Power
    Product colourBlack
    Housing materialMetal
    CertificationFCC Class A, CE
    Input voltage12 V
    Input current1.2 A
    Power consumption (max)5 W
    External power adapterY
    Width70 mm
    Depth96 mm
    Height26 mm
    Weight170 g
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 70 °C
    Operating relative humidity (H-H)10 - 80%
    User guideY
    Description
    Intellinet Gigabit Ethernet to SFP Media Converter, 10/100/1000Base-Tx to SFP slot, empty (Euro 2-pin plug). Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T,100Base-TX,1000Base-TX, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z. Fiber optic connector: SFP, Connectivity technology: Wired. Maximum transfer distance: 100 m. LED indicators: Link, Power, Product colour: Black, Housing material: Metal. Input voltage: 12 V, Input current: 1.2 A, Power consumption (max): 5 W
    Status7 dienas
    Description
    The Intellinet Network Solutions Gigabit Ethernet to SFP Media Converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums. Expands the Size of an Existing Network Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. Cabling Flexibility Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

    Maximum data transfer rate 1000 Mbit/s
    Converter input interface 10Base-T, 100Base-TX, 1000Base-TX
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
    Ethernet interface type Fast Ethernet, Gigabit Ethernet
    Ethernet LAN data rates 10,100,1000 Mbit/s
    Data transfer rate 1000 Mbit/s
    Auto MDI/MDI-X Y
    Duplex system Full
    Cable types supported Cat5e, Fiber
    Fiber optic connector SFP
    Connectivity technology Wired
    Ethernet LAN (RJ-45) ports 1
    Fiber ports quantity 1
    Maximum transfer distance 100 m
    Internal N
    LED indicators Link, Power
    Product colour Black
    Housing material Metal
    Certification FCC Class A, CE
    Input voltage 12 V
    Input current 1.2 A
    Power consumption (max) 5 W
    External power adapter Y
    Width 70 mm
    Depth 96 mm
    Height 26 mm
    Weight 170 g
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 70 °C
    Operating relative humidity (H-H) 10 - 80%
    User guide Y
    Harmonized System (HS) code 85176990
