Manufacturer: NETGEAR

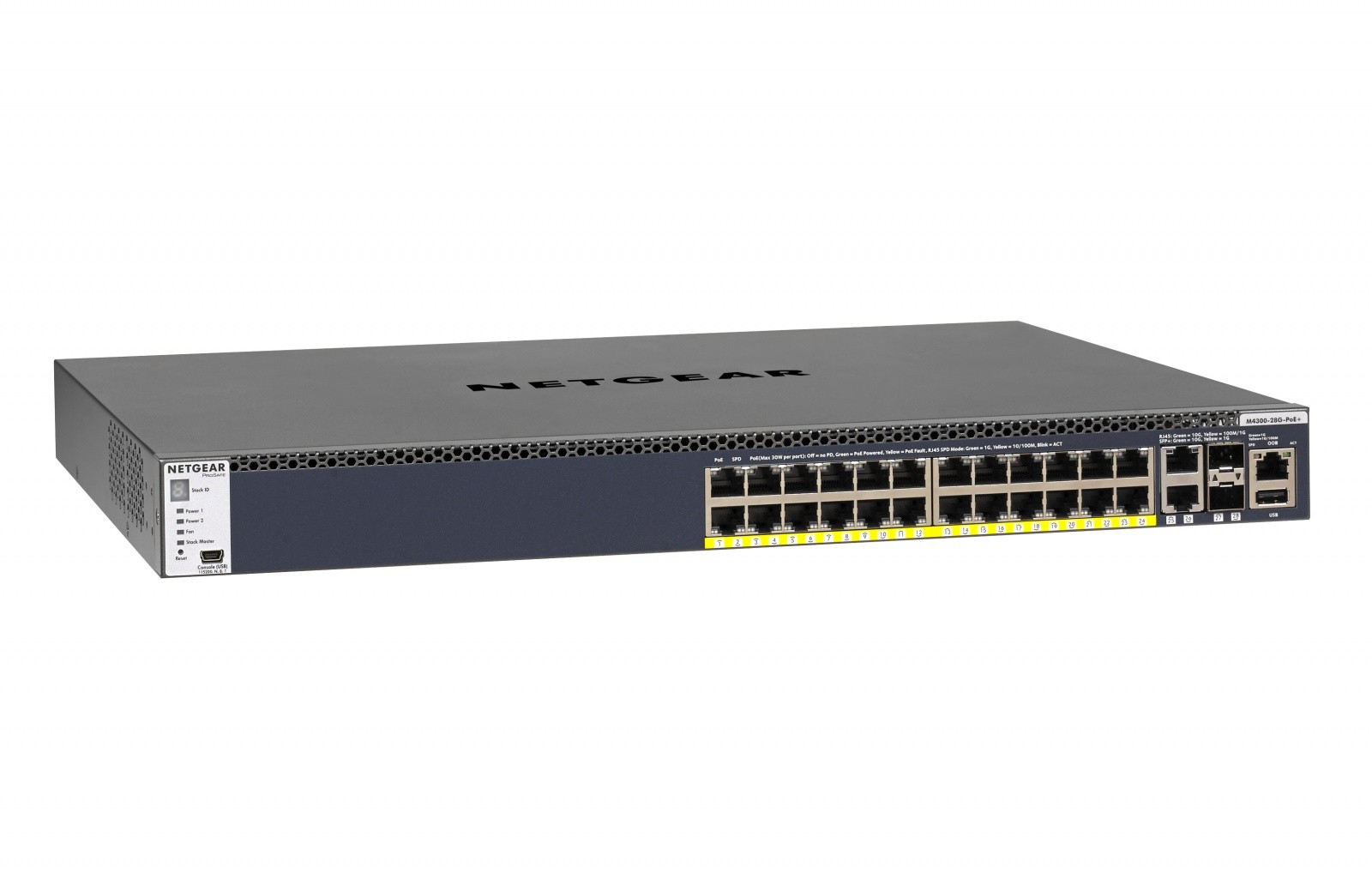

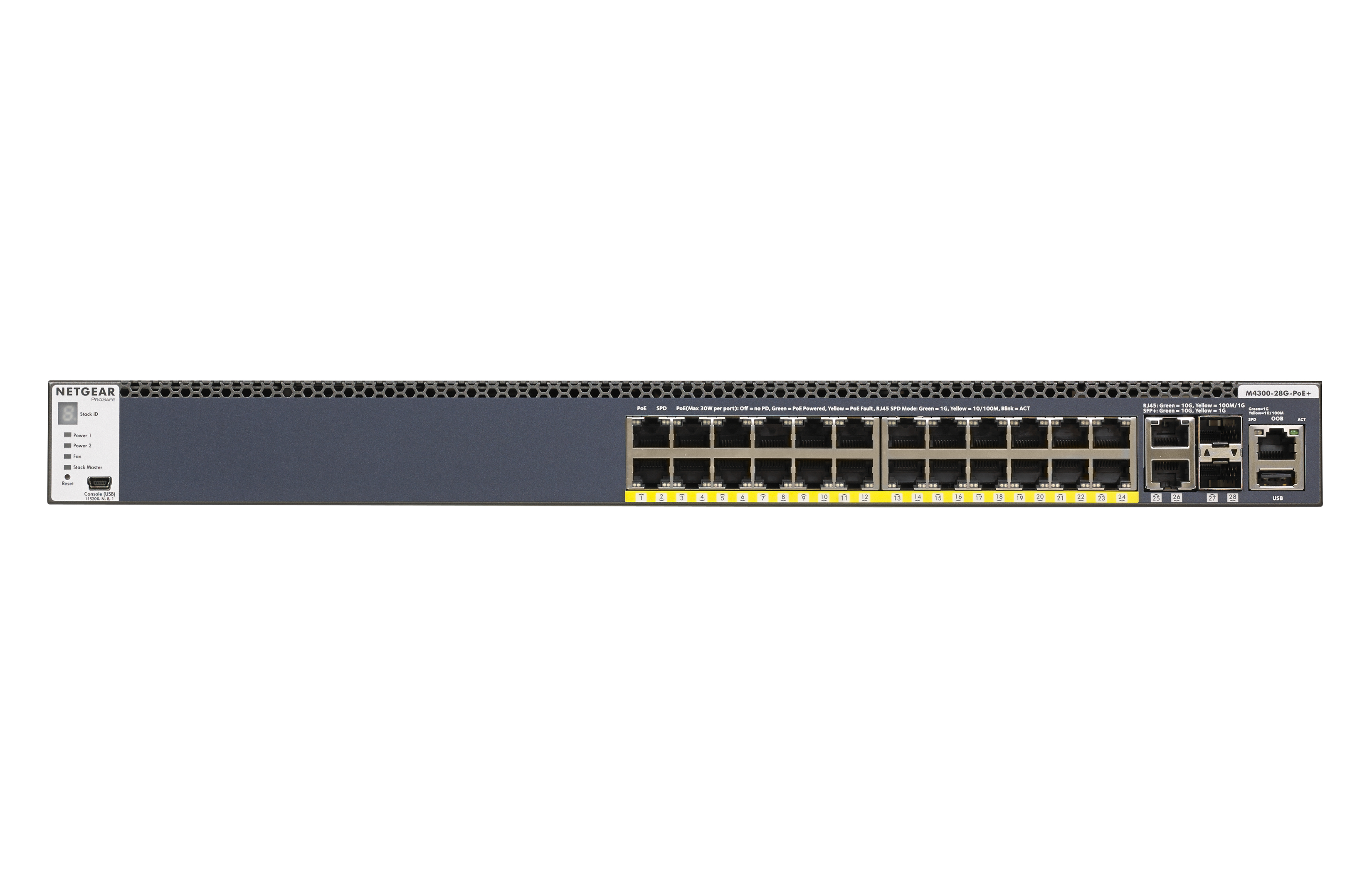

Netgear M4300-28G-PoE+ Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

€2360.95 incl tax

SKU: ST00686391

Manufacturer part number: GSM4328PA-100NES

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
PL	8 - 15 days	3	€2360.95 incl tax
LT	5 - 15 days	5	€2963.31 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3

RJ-45 port	24
Properties	USB
Properties	RJ-45

Switch class	Managed
Application	Medium and large companies
Switch layer	L3
Network architecture	GigabitEthernet
Number of 10/100 Mbps ports	None
Number of 10/100/1000 Mbps ports	24
Number of 10Gb ports	4
Number of PoE ports (PoE & PoE+)	24
Number of PoE+ ports	None
Number of COMBO ports	None
Number of SFP ports	None
Number of SFP+ ports	2
Number of QSFP+ ports	None
Console port	Yes
Throughput	128 (Gigabity na sek.)
Stackability	Yes
Management, monitoring, configuration	- 1G Ethernet service port for out-of-band management (OOB, RJ45) - RS232 straight-through serial RJ45 for local management console - Mini-USB port for local management console - USB port for local storage, logs, configuration or image files
Chassis type	Rack
Fan	Yes
Power supply	Internal
Designation	CE+WEEE
Width	95
Height	430
Depth	570
Weight	6960

Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	2
Console port	RJ-45
USB 2.0 ports quantity	1
Networking standards	IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
10G support	Yes
Copper ethernet cabling technology	10GBASE-T
IP routing	Yes
Auto-sensing	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN
Number of VLANs	4096
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	357 Mpps
Latency (10 Gbps)	2.74 µs
Number of static routes	64
Jumbo frames support	Yes
Packet buffer memory	16 MB
DHCP features	DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SNMP, SSH
SSH/SSL support	Yes
BPDU filtering/protection	Yes
Multicast support	Yes
Number of multicast groups filtered	4000
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
Number of fans	1 fan(s)
Built-in processor	Yes
Processor frequency	800 MHz
Internal memory	1024 MB
Flash memory	256 MB
Noise level	39.8 dB
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Number of power supply units	1
AC input voltage	110 - 240 V
Power consumption (typical)	577 W
Power consumption (max)	833.2 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	480 W
Heat dissipation	196988 BTU/h
Weight	5.09 kg
Harmonized System (HS) code	85176990
Description
Description	NETGEAR M4300-28G-PoE+. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Products specifications

1
Details 2
Details 3

RJ-45 port	24
Properties	USB
Properties	RJ-45

Switch class	Managed
Application	Medium and large companies
Switch layer	L3
Network architecture	GigabitEthernet
Number of 10/100 Mbps ports	None
Number of 10/100/1000 Mbps ports	24
Number of 10Gb ports	4
Number of PoE ports (PoE & PoE+)	24
Number of PoE+ ports	None
Number of COMBO ports	None
Number of SFP ports	None
Number of SFP+ ports	2
Number of QSFP+ ports	None
Console port	Yes
Throughput	128 (Gigabity na sek.)
Stackability	Yes
Management, monitoring, configuration	- 1G Ethernet service port for out-of-band management (OOB, RJ45) - RS232 straight-through serial RJ45 for local management console - Mini-USB port for local management console - USB port for local storage, logs, configuration or image files
Chassis type	Rack
Fan	Yes
Power supply	Internal
Designation	CE+WEEE
Width	95
Height	430
Depth	570
Weight	6960

Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	2
Console port	RJ-45
USB 2.0 ports quantity	1
Networking standards	IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
10G support	Yes
Copper ethernet cabling technology	10GBASE-T
IP routing	Yes
Auto-sensing	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN
Number of VLANs	4096
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	357 Mpps
Latency (10 Gbps)	2.74 µs
Number of static routes	64
Jumbo frames support	Yes
Packet buffer memory	16 MB
DHCP features	DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SNMP, SSH
SSH/SSL support	Yes
BPDU filtering/protection	Yes
Multicast support	Yes
Number of multicast groups filtered	4000
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
Number of fans	1 fan(s)
Built-in processor	Yes
Processor frequency	800 MHz
Internal memory	1024 MB
Flash memory	256 MB
Noise level	39.8 dB
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Number of power supply units	1
AC input voltage	110 - 240 V
Power consumption (typical)	577 W
Power consumption (max)	833.2 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	480 W
Heat dissipation	196988 BTU/h
Weight	5.09 kg
Harmonized System (HS) code	85176990
Description
Description	NETGEAR M4300-28G-PoE+. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
