Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | 3rd Generation AMD Ryzen 5, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Supported processor sockets | LGA 1700 |
Supported memory types | DDR4-SDRAM |
Number of memory slots | 4 |
Maximum internal memory | 128 GB |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Yes |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
Unbuffered memory | Yes |
Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0 |
Supported storage drive types | HDD & SSD |
Number of HDDs supported | 4 |
Number of storage drives supported | 7 |
RAID support | Yes |
RAID levels | 0, 1, 5, 10 |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
Front panel audio connector | Yes |
Front panel connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of EATX power connectors | 2 |
CPU fan connector | Yes |
Number of chassis fan connectors | 4 |
Chassis intrusion connector | Yes |
EPS power connector (8-pin) | Yes |
Number of COM connectors | 1 |
Thunderbolt headers | 1 |
12V power connector | Yes |
RGB LED pin header | Yes |
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 2 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Headphone outputs | 5 |
Digital audio optical out | 1 |
USB connector type | USB Type-A, USB Type-C |
Wi-Fi | No |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B660 |
Audio output channels | 7.1 channels |
Power source type | ATX |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
PCI Express x1 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
Number of M.2 (M) slots | 3 |
BIOS memory size | 128 Mbit |
Clear CMOS jumper | Yes |
Width | 305 mm |
Depth | 244 mm |
Cables included | SATA |
Description |

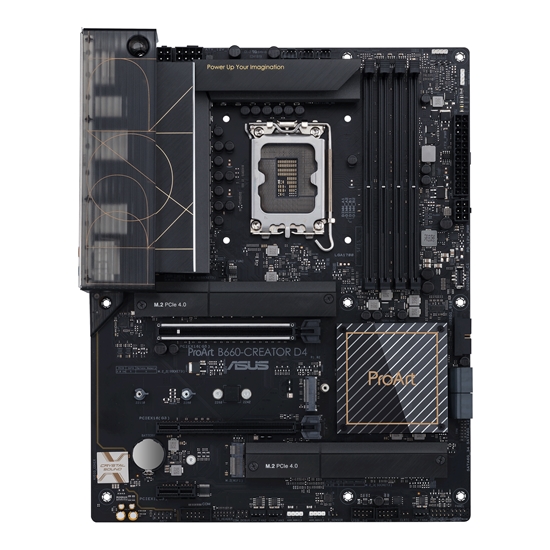

ASUS MBA-B660-PCREATOR-D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: 3rd Generation AMD Ryzen 5, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel®.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet |
