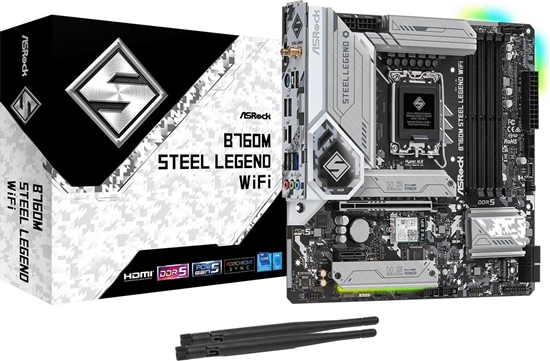

Model | B760M STEEL LEGEND WIFI |
CPU socket | LGA1700 |
Processor family | Intel Core i9 |
Processor family | Intel Celeron |
Processor family | Intel Core i7 |
Processor family | Intel Core i5 |
Processor family | Intel Pentium |
Processor family | Intel Core i3 |
Integrated CPU | No |
Chipset manufacturer | Intel |
Chipset type | Intel B760 |
Memory type | DDR5 |
Number of DDR5 slots | 4 |
Memory bus frequency | 7200 MHz |
Max memory size | 128 (GigaBajt) |
Expansion slots | 1 x PCIe 5.0 x 16 |
Expansion slots | 1 x PCIe 4.0 x 1 |
Max. number of SATA devices | 4 |
RAID | Yes |
Detailed data on disk/drive interfaces | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), obsługuje 2260/2280 PCIe Gen4x4 (64 Gb/s)
Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), obsługuje type 2260/2280 PCIe Gen4x4 (64 Gb/s)
- 1 x Hyper M.2 Socket (M2_3, Key M), obsługuje type 2260/2280 PCIe Gen4x4 (64 Gb/s)
- 4 x złącze SATA3 6.0 Gb/s
|
Graphics | - Architektura graficzna Intel Xe (12. generacji)
- eDP 1.4, obsługuje maks. rozdzielczość do Full HD 60 Hz
- HDMI 2.1 kompatybilny z TMDS, obsługuje HDCP 2.3 i max. rozdzielczość do 4K 60 Hz
- DisplayPort 1.4 z DSC (skompresowany), obsługuje HDCP 2.3 i maks. rozdzielczość do 8K 60Hz / 5K 120Hz
*Wbudowane grafiki Intel UHD i wyjścia VGA mogą być obsługiwane tylko przez procesory ze zintegrowanym GPU. |
Sound card | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
|
Network interface | Wi-Fi 802.11a/b/g/n/ac/ax |
Network interface | 1 x 10/100/1000/2500 Mbit/s |
Network interface | Bluetooth |
Network interface | LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Wireless LAN: - 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
- Supports MU-MIMO
|
USB ports at back panel | 8 |
USB ports on motherboard | 7 |
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 3 |
FireWire (IEEE 1394) | No |
COM connector / port | No |
LPT connector / port | No |
External connectors | 1 x PS/2 Keyboard/MouseCombo |
External connectors | 2 x SMA |
External connectors | 2 x USB 2.0 |
External connectors | 4 x USB 3.0 |
External connectors | 1 x USB 3.1 |
External connectors | 1 x Line In |
External connectors | 1 x DisplayPort |
External connectors | 1 x HDMI |
External connectors | 1 x USB 3.1 Type-C |
External connectors | 1 x MIC |
External connectors | 1 x RJ-45 |
External connectors | 1 x Line Out |
Onboard connectors | 3 x Addressable LED |
Onboard connectors | 1 x eDP |
Onboard connectors | 1 x 24pin ATX zasilanie |
Onboard connectors | 3 x M.2 |
Onboard connectors | 4 x SATA III 6Gb/s |
Onboard connectors | 4 x USB 2.0/1.1 |
Onboard connectors | 2 x USB 3.0 header |
Onboard connectors | 1 x USB C |
Onboard connectors | 1 x TPM header |
Onboard connectors | 1 x Front panel audio header |
Onboard connectors | 3 x 4pin Chassis/Water Pump Fan Connectors |
Onboard connectors | 2 x 8pin 12V |
Onboard connectors | 1 x RGB LED strip header |
Onboard connectors | 1 x Chassis intrusion header |
Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
Onboard connectors | 1 x 4pin CPU fan |
Special functions | Superb Productivity: - PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability: - 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Flexible Integrated I/O Shield
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore
Ultrafast Connectivity: - 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update: - ASRock Auto Driver Installer
EZ Troubleshooter: - ASRock Post Status Checker
|
BIOS | 128Mb AMI UEFI Legal BIOS z obsługą GUI |
Form factor | micro ATX |
Dimensions | 24.4 x 24.4 cm |
Accessories included | - Instrukcja obsługi
- 2 x Kabel danych SATA
- 2 x Antena ASRock Wi-Fi 2,4/5/6 GHz
- 3 x Śruby do gniazda M.2
- 3 x Wsporniki do gniazda M.2
|
Supported operating systems | Windows 11 |
Supported operating systems | Windows 10 |
Software | Software: - ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI: - ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
|
Width | 280 |
Height | 260 |
Depth | 60 |
Weight | 1030 |
Description |
B760M STEEL LEGEND WIFI - Obsługuje procesory Intel Core 13-ej i 12-ej generacji (LGA1700)
- 12+1+1 Power Phase, Dr.MOS for VCore+GT
- Obsługuje DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
- Wyjścia grafiki: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen2 Type-C (1 Tył, 1 Przód),
- 1 USB 3.2 Gen2 Type-A (Tył),
- 6 USB 3.2 Gen1 (4 Tył, 2 Przód),
- 6 USB 2.0 (2 Tył, 4 Przód)
- Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
- Obsługuje ASRock Auto Driver Installer
|
