Manufacturer: MSI

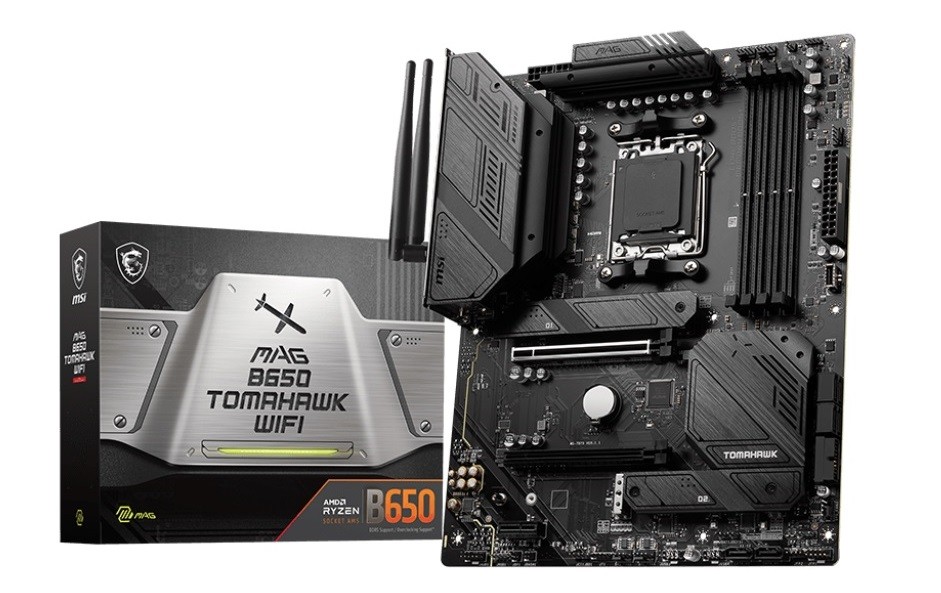

MSI MAG B650 Tomahawk WIFI AMD B650 Socket AM5 ATX

€206.85 incl tax

SKU: ST06740097

Manufacturer part number: MAG B650 TOMAHAWK WIFI

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
Ir veikalā	0 - 1 days	1	€221.47 incl tax
PL	9 - 12 days	30	€206.85 incl tax
LV	2 - 5 days	5	€212.22 incl tax
LT	3 - 5 days	100	€220.87 incl tax

Qty:

Specifications

Products specifications

Video interface	DisplayPort
Form Factor	ATX
Video interface	HDMI

Model	MAG B650 TOMAHAWK WIFI
CPU socket	Socket AM5
Processor family	AMD Ryzen
Integrated CPU	No
Chipset manufacturer	AMD
Chipset type	AMD B650
Memory type	DDR5
Number of DDR5 slots	4
Memory bus frequency	6400 MHz
Memory bus frequency	6600 MHz
Memory bus frequency	6000 MHz
Memory bus frequency	6200 MHz
Memory bus frequency	5400 MHz
Memory bus frequency	5600 MHz
Memory bus frequency	4800 MHz
Memory bus frequency	5000 MHz
Memory bus frequency	5200 MHz
Memory bus frequency	5800 MHz
Max memory size	128 (GigaBajt)
Expansion slots	2 x PCIe 4.0 x 16
Expansion slots	1 x PCIe 3.0 x 1
Max. number of SATA devices	6
RAID	Yes
Detailed data on disk/drive interfaces	3x M.2 slot: M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
Graphics	1 x HDMI 1 x DisplayPort Obsługa HDMITM 2.1 z HDR, maksymalna rozdzielczość 4K 60 Hz Obsługa DP 1.4, maksymalna rozdzielczość 8K 60Hz
Sound card	Realtek ALC4080 Codec 7.1-Channel High Performance Audio Wyjście S/PDIF Obsługuje odtwarzanie do 32-bitów/384 kHz na przednim panelu
Network interface	1 x 10/100/1000/2500 Mbit/s
Network interface	Wi-Fi 802.11a/b/g/n/ac/ax
Network interface	Bluetooth
Network interface	Realtek RTL8125B 2.5Gbps LAN AMD Wi-Fi 6E 802.11 a/ b/ g/ n/ ac/ ax Moduł bezprzewodowy jest fabrycznie zainstalowany w gnieździe M.2 (Key-E) Obsługa MU-MIMO TX/RX Obsługa 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Bluetooth 5.2
USB ports at back panel	10
USB ports on motherboard	7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	5
FireWire (IEEE 1394)	No
COM connector / port	No
LPT connector / port	No
External connectors	1 x Central Speaker / Subwoofer
External connectors	1 x Rear Speaker
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	1 x MIC
External connectors	1 x RJ-45
External connectors	1 x S/PDIF
External connectors	2 x USB 2.0
External connectors	4 x USB 3.0
External connectors	3 x USB 3.1
External connectors	1 x HDMI
External connectors	2 x SMA
External connectors	1 x USB 3.1 Type-C
External connectors	1 x DisplayPort
External connectors	1 x Flash BIOS Button
Onboard connectors	2 x System panel header
Onboard connectors	1 x Front panel audio header
Onboard connectors	2 x Addressable LED
Onboard connectors	1 x TPM header
Onboard connectors	1 x Chassis intrusion header
Onboard connectors	1 x 4pin Chassis fan
Onboard connectors	6 x 4pin wentylator obudowy
Onboard connectors	2 x 8pin 12V
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	3 x M.2
Onboard connectors	6 x SATA III 6Gb/s
Onboard connectors	4 x USB 2.0/1.1
Onboard connectors	2 x USB 3.0 header
Onboard connectors	1 x USB C
Form factor	ATX
Dimensions	243.84 x 304.8 mm
Supported operating systems	Windows 10
Supported operating systems	Windows 11
Designation	CE+WEEE
Width	380
Height	270
Depth	70
Weight	1778
Description
Description	Płyta główna MAG B650 TOMAHAWK WIFI AM5 4DDR5 HDMI/DP ATX

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
ECC	No
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz
Supported storage drive interfaces	M.2, SATA
RAID support	Yes
RAID levels	0, 1, 10
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	6
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI version	2.1
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125B
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Audio chip	Realtek ALC4080
Product colour	Black
PC health monitoring	Fan
Windows operating systems supported	Windows 11 x64
PCI Express x16 (Gen 3.x) slots	1
Number of M.2 (M) slots	3
Width	304.8 mm
Depth	243.8 mm
Description
Description	MSI MAG B650 Tomahawk WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Description	MSI MAG B650 TOMAHAWK WIFI AMD Socket
VatType	VAT
Weight	1.770000000
Height	72.000000000
Width	272.000000000
Length	342.000000000
Description
MSI MAG B650 TOMAHAWK WIFI AMD Socket AM5 DDR5 up to 128GB 2xPCIe x16 6xSATA ATX

Gross depth (mm)	268
Gross height (mm)	342
Gross weight	1.64
Gross width (mm)	70
Net weight	0.97
Packing quantity	1.00
Paper/Pasteboard	600.00
Plastic (No PET)	75.00
Tare weight (kg)	0.68
TI weight (kg)	0.05
Volume (m3)	0.00641592
Classification of battery	CL126:NE:2016-12-09
Composition of battery	CL127:KT:2016-12-09
Type of battery	Accumulator
Embeeded battery	Yes
WEEE tax	No
WEE classification	CL109:5:2017-04-01
Warranty	24
Memory slots	4
Chipset	AMD B650
Producer product name	MAG B650 TOMAHAWK WIFI
Supported hard disk drive interfaces	SATA, M.2
Compatible processor series	Supports AMD Ryzen 7000 Series Desktop Processors
Processor family	AMD
Motherboard form factor	ATX
Supported memory types	DDR5 DIMM
Processor socket	AM5
Number of SATA connectors	6
Gross depth master carton	286
Gross width master carton	380
Gross height master carton	370
Net weight master carton	9.665
Tare weight master carton	0.684
Palette Qty	269
Producer	MSI
