Manufacturer: LEVELONE

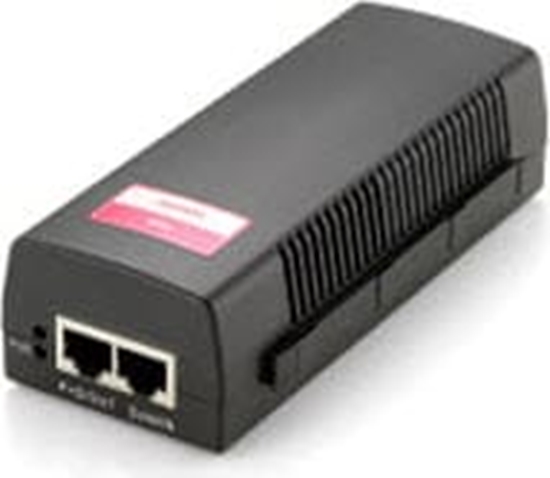

Level One POI-2002

€46.84 incl tax

SKU: ST03623723

Manufacturer part number: POI-2002

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
EU	10 - 20 days	3	€46.84 incl tax
LV	7 - 12 days	177	€69.89 incl tax
PL	8 - 15 days	1	€77.23 incl tax

Qty:

Specifications

Products specifications

1
Details 2

Properties	RJ-45

Status

7 dienas

Description

The LevelOne POI-2002 is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 15.4W and the data that comes from a non-PoE switch are merged together and then transmitted to the 802.3af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches. Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables, therefore these devices may be installed in hard-to-reach areas like ceilings where there are no any outlets or electrical wiring nearby. - Minimize the need for a bulky power adapter and power line - Delivering power and data to equipment via a single Ethernet cable - Internal power supply - High safety with surge protection - Remote power feeding up to 100 meters - PnP, Light Weight and compact size - Unique interlocking feature for easy installation

Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Power over Ethernet (PoE)	Y
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Product colour	Black
LED indicators	PoE, Power
Certification	FCC Part 15, CE, RoHS
Country of origin	China
Ethernet LAN (RJ-45) ports	2
Power over Ethernet (PoE) voltage	52 V
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	0.8 A
Output current	0.3 A
Power consumption (max)	15.4 W
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	0 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Width	55 mm
Depth	35.5 mm
Height	173.5 mm
Weight	280 g
Package width	55 mm
Package depth	125 mm
Package height	210 mm
Package weight	450 g
Number of products included	1 pc(s)
Harmonized System (HS) code	85044095
